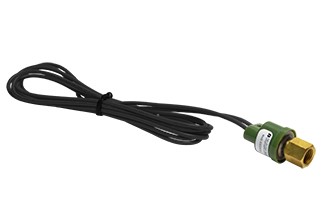

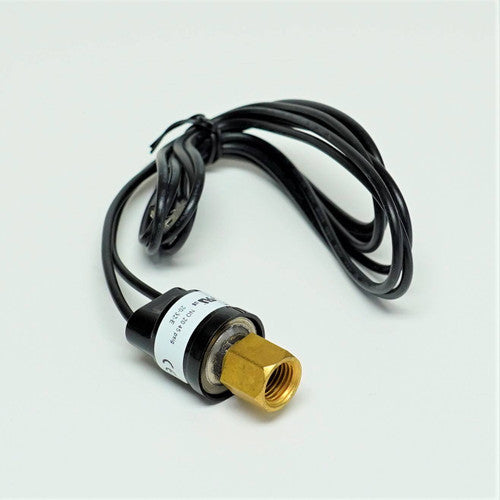

ROBERTSHAW RHS-2045 Ranco Low Pressure Switch

Product Description

The ROBERTSHAW RHS-2045 is a low-pressure switch designed to detect and control pressure settings in various systems. It features a robust construction ideal for applications requiring precise pressure cut-out and control cycling. This switch has a hermetically sealed sensor and reliable wire leads for easy integration.

• Automatic reset functionality for user convenience.
• Designed for low-pressure applications needing effective cycling.
• Includes IP65-rated 1m wire leads for durability in various environments.

Product Highlights

The RHS-2045 provides essential pressure control in HVAC systems and other low-pressure environments.

Product Information

Standard Information

• Application: Low Pressure
• Reset: Automatic

Technical Specifications

• Open (Cut Out): 20 PSI
• Open (Cut In): 45 PSI
• Pressure Range: 0-50 bar, 0-735 psig
• Burst Pressure: 345 bar, 5000 psig
• Terminal Type: Normally Open (Low Pressure Cutout), Normally Closed (High Pressure Cutout)
• Fluid Temperature: -55 °C to 135 °C / -65 °F to 275 °F
• Ambient Temperature: -30 °C to 70 °C / -40 °F to 185 °F
• Electrical Rating: 120 VAC: 5.8 FLA / 34.8 LRA | 240 VAC: 2.9 FLA / 17.4 LRA | 120/277 VAC: 375 VA | 24 VAC: 125 VA
• Pressure Fittings: 1/4 SAE FF
• Electrical Connection: IP65-rated 1m wire lead cables
• Lifetime (Cycles): 100,000
