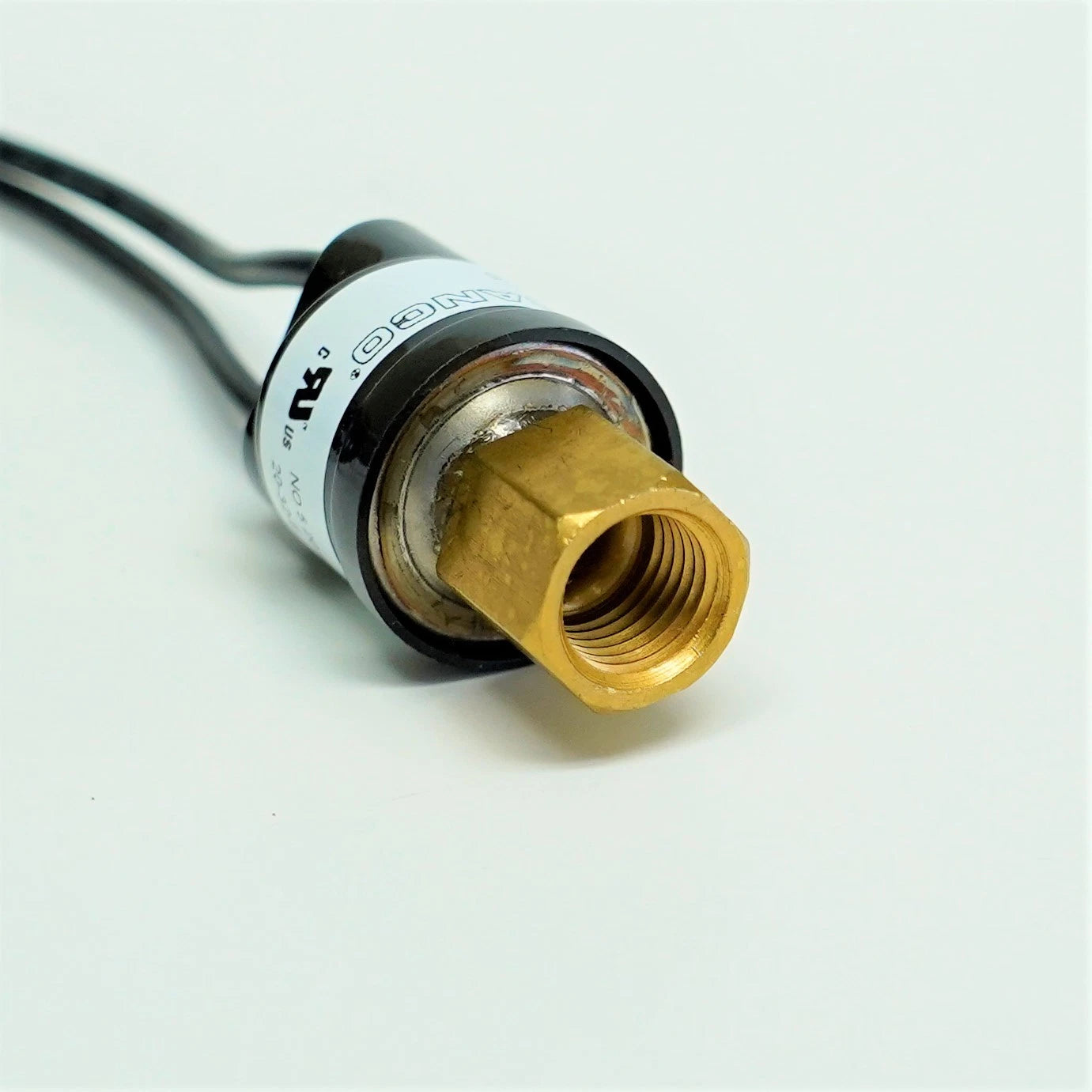

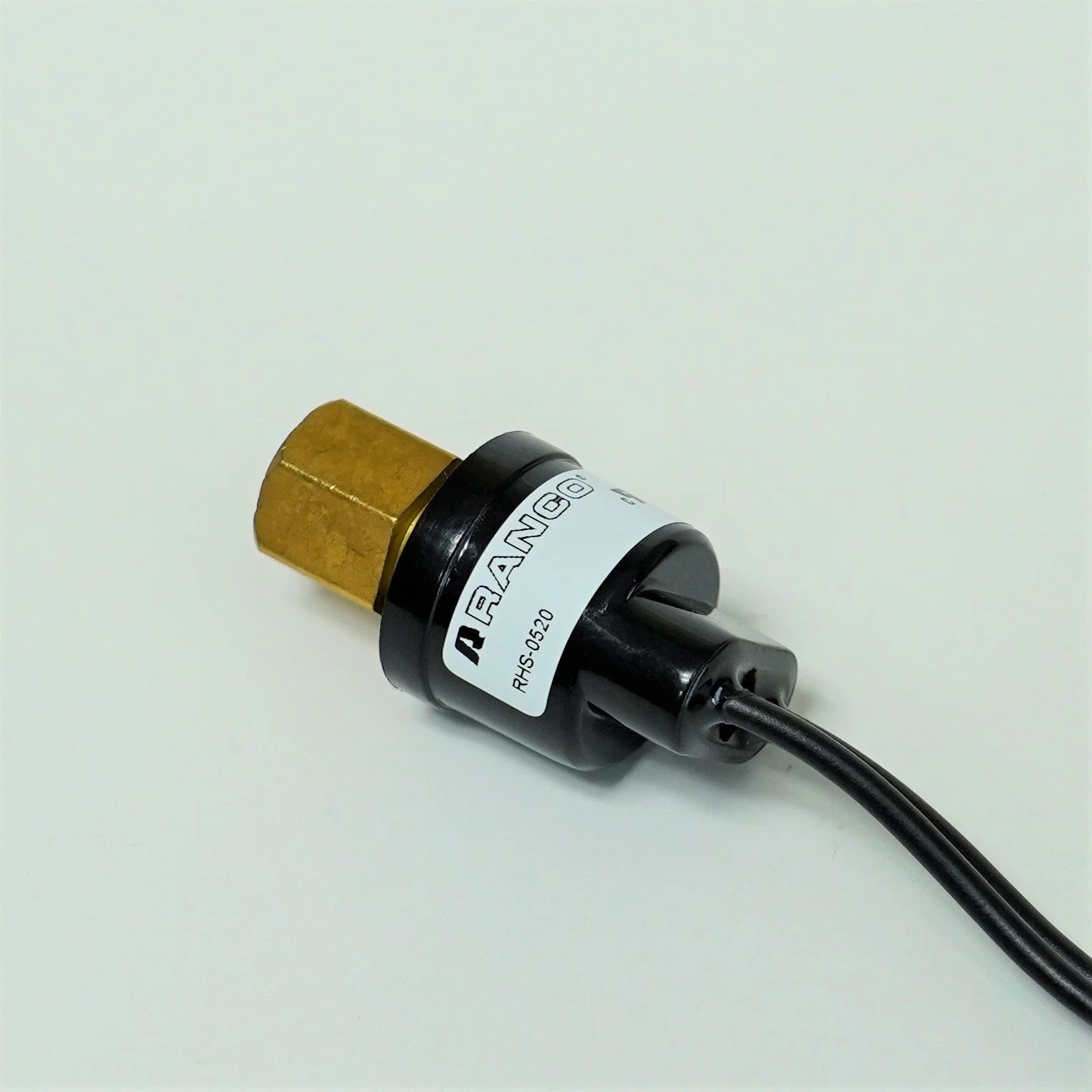

Robertshaw RHS-0520 Ranco Low Pressure Switch

Product Description

The Robertshaw RHS-0520 is a Ranco pressure switch designed for low-pressure applications. It features an automatic reset function and is suitable for pressure cutout and control cycling. This switch is built with high-quality materials and has a hermetically sealed design for durability. It can be used with different pressure fittings and electrical connections.

• Type: Pressure Switch
• Application: Low Pressure
• Reset Type: Automatic

Product Highlights

The RHS-0520 ensures reliable operation in low-pressure systems, providing critical pressure monitoring.

Product Information

Standard Information

• Brand: Ranco
• Manufacturer: Robertshaw

Technical Specifications

• MPN: RHS-0520
• Model Number: RHS-0520
• Pressure Range: 0-50 bar, 0-735 psig
• Burst Pressure: 345 bar, 5000 psig
• Open (Cut Out): 5 PSI
• Open (Cut In): 20 PSI
• Fluid Temperature: -55 °C to 135 °C / -65 °F to 275 °F
• Ambient Temperature: -30 °C to 70 °C / -40 °F to 185 °F
• Electrical Rating: 120 VAC: 5.8 FLA / 34.8 LRA | 240 VAC: 2.9 FLA / 17.4 LRA | 120/277 VAC: 375 VA | 24 VAC: 125 VA
• Pressure Fittings: 1/4 SAE FF

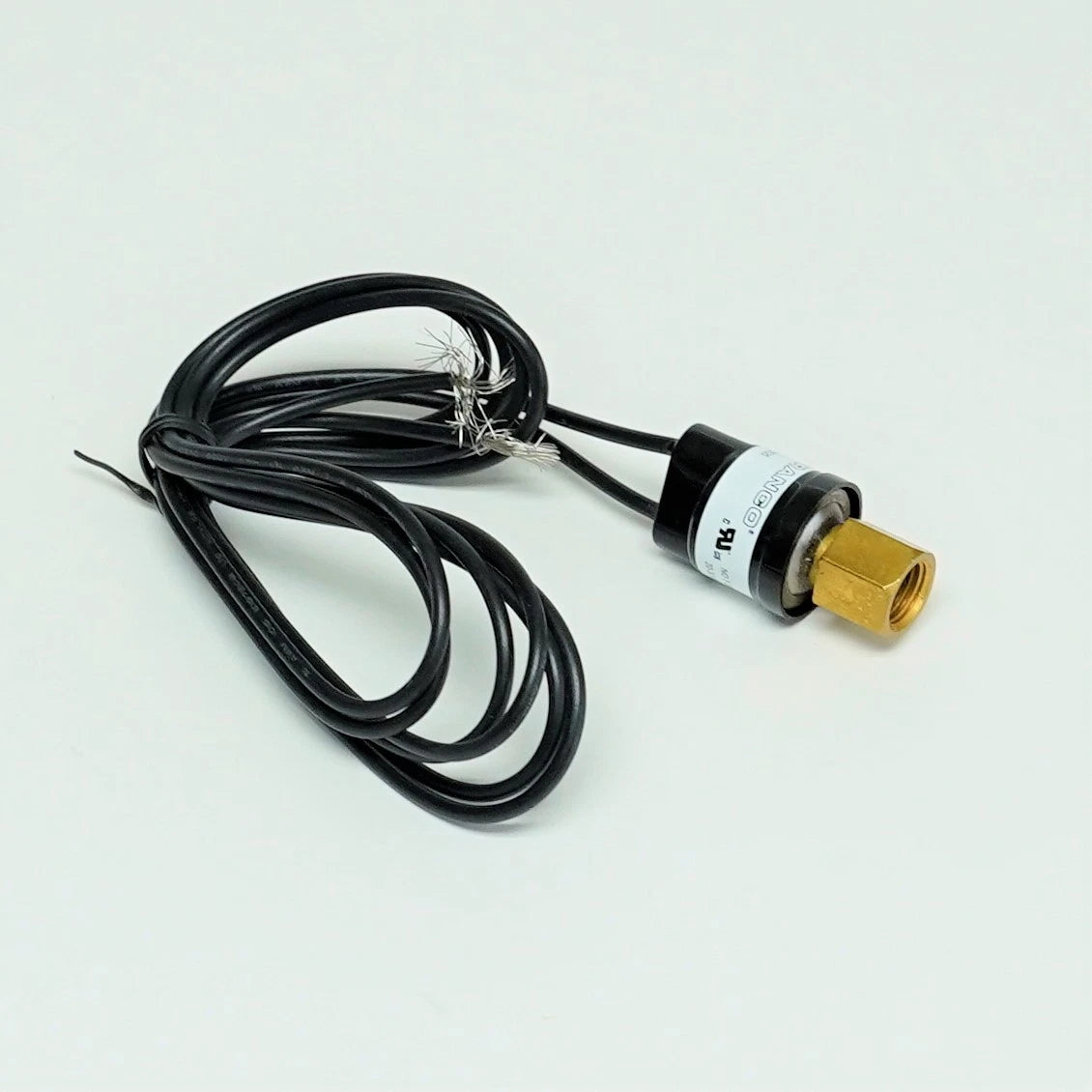

• Electrical Connection: IP65-rated 1m wire lead cables
• Lifetime (Cycles): 100,000
