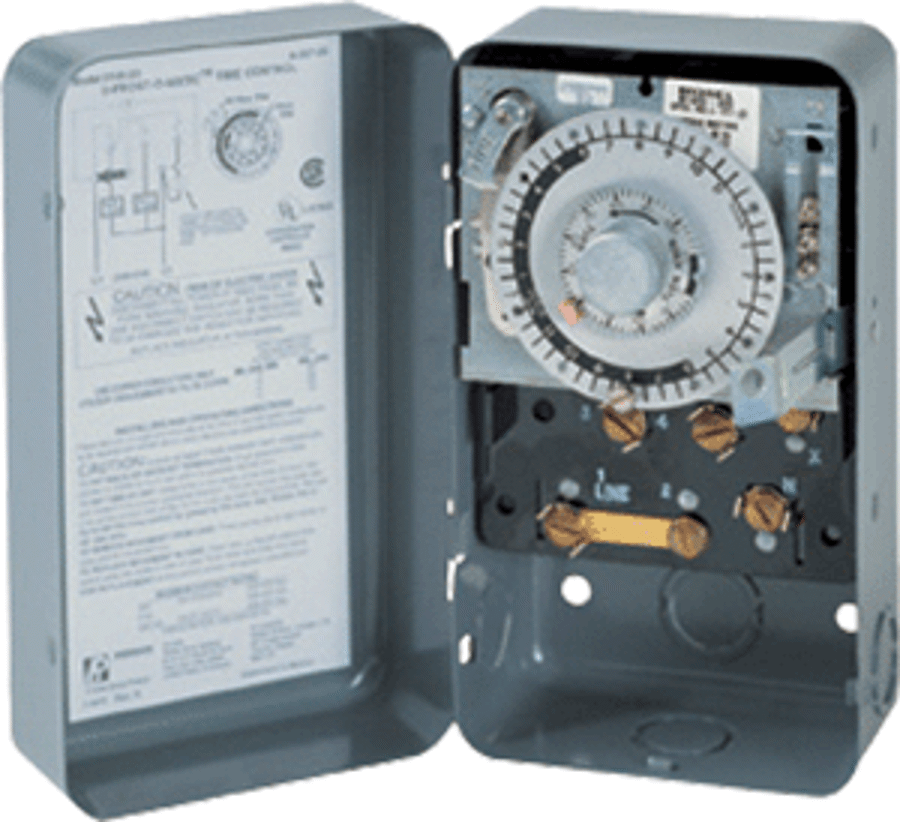

Robertshaw 8143-00 Defrost Timer, 208-240V Open/Closed/Open AC Line

Product Description

The Robertshaw 8143-00 is a defrost timer designed for refrigeration systems that operate on 208-240 volts AC. It is used to manage defrost cycles in commercial refrigeration units, ensuring optimal performance and preventing ice build-up.

• Voltage: 208-240V AC
• Type: Open/Closed/Open
• Applications: Ideal for commercial freezers and refrigerators

Product Highlights

This defrost timer features high-amp switch contacts, capable of handling up to forty amps and two horsepower. It employs a mechanical timer for precise control and includes options for temperature or pressure termination.

Product Information

Standard Information

• Brand: Robertshaw
• Part Number: 8143-00

Technical Specifications

• Voltage: 208-240V AC
• Defrost Cycles: Six cycles per day
• Time Initiation: Adjustable from one to six cycles per day
• Termination Type: Temperature or pressure
• Contact Rating: 40 amps, 2 hp
• Construction: Heavy-duty steel enclosure
• Accuracy: +/- 2 minutes on defrost duration
