Robertshaw 712-016 Gas Valve 712 Combination with Non-Lockout Ignition 3/4 x 3/4 Inch FPT

Product Description

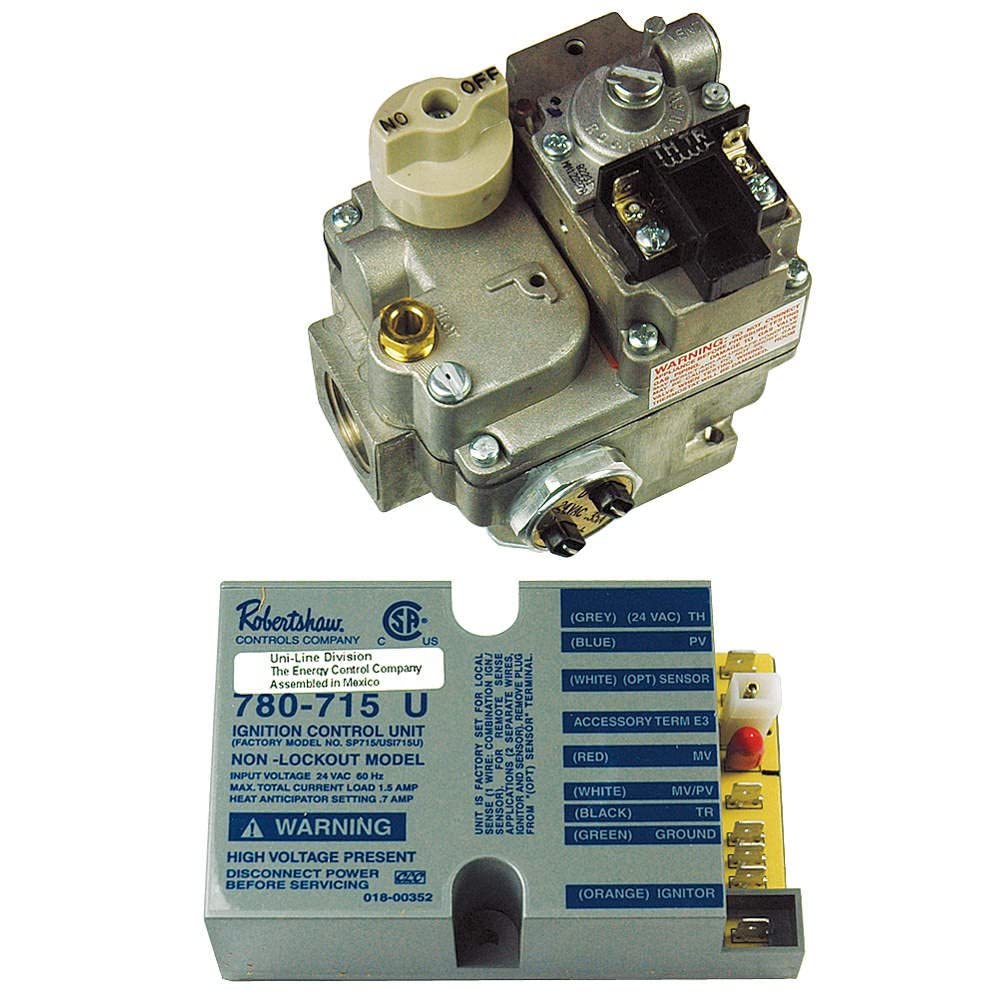

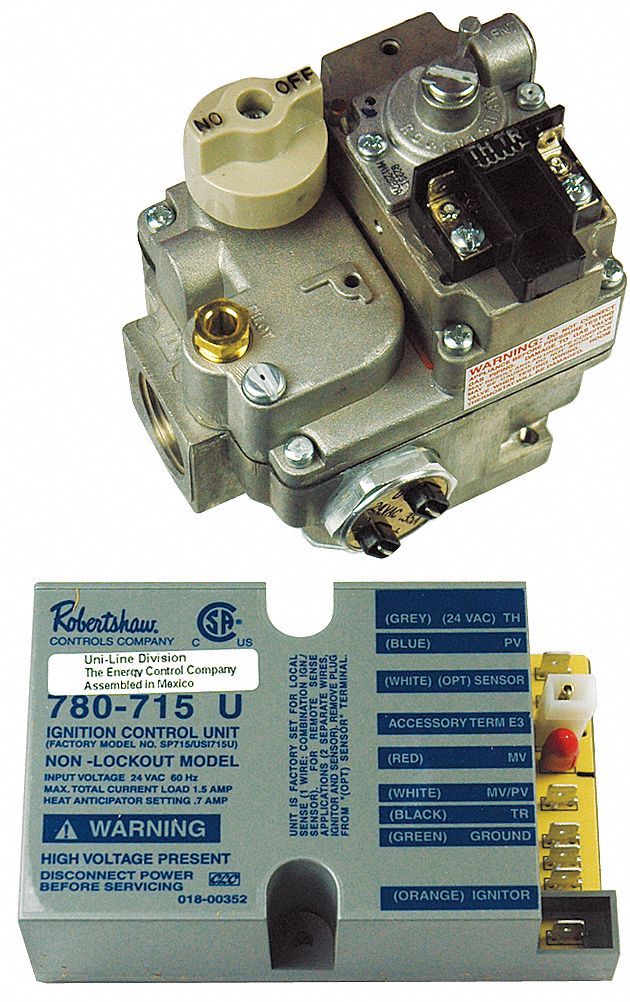

The ROBERTSHAW 712-016 combination gas valve features non-lockout ignition and a 3/4 x 3/4 inch FPT connection. Designed for intermittent pilot ignition, this system ensures proper operation with flame rectification and solid-state logic. It is designed for use with natural gas systems. The kit includes a flame sensor, ignition module, and harness.

• Features flame rectification with solid-state logic
• Ensures proper operation of an intermittent pilot ignition device

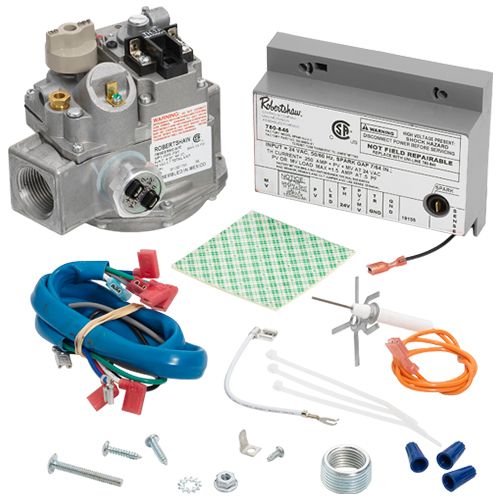

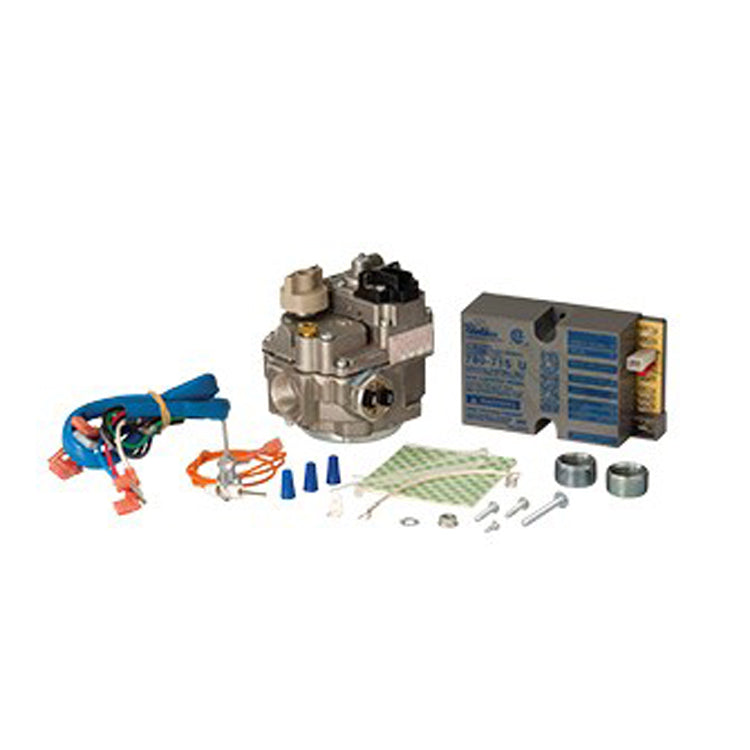

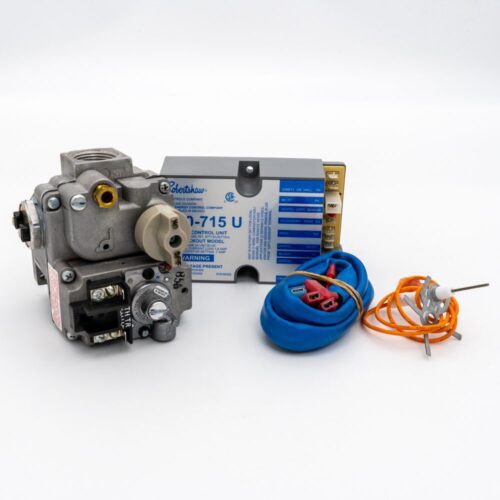

• Includes flame sensor, ignition module, and harness

Product Highlights

This ROBERTSHAW gas valve is designed for natural gas systems and features a non-lockout ignition for reliable performance.

Product Information

Standard Information

• Brand: ROBERTSHAW
• Manufacturer Part Number: 712-016
• Country of Origin: Mexico

Technical Specifications

• Product Type: Combination Gas Valve with Non-Lockout Ignition
• Size: 3/4 x 3/4 IN
• End Connection: FPT
• Item Number: 712-016
• Brand: Robertshaw
• BTU Capacity: 350,000 BTU
• Inlet Size: 3/4 in
• Outlet Size: 3/4 in
• Pressure Regulation: 3.5" Natural Gas
• Fuel Type: Natural Gas
• Ignition Type: Intermittent Pilot
• Capacity (BTU): 350000
• Pressure Reg Setting: 3.5" W.C. NAT. GAS
• Series Application: Intermittent Pilot Ignition System Kit
• Ignition Control: 780-715 (Nonlockout)
• Model: Nonlockout - Caution: Do not use on L.P. Gas Applications
• Inlet: 3/4 in
• Outlet: 3/4 in
• Includes Ignitor: Ignitor Included
• Country of Origin: Mexico (subject to change)
• MPN: 712-016
