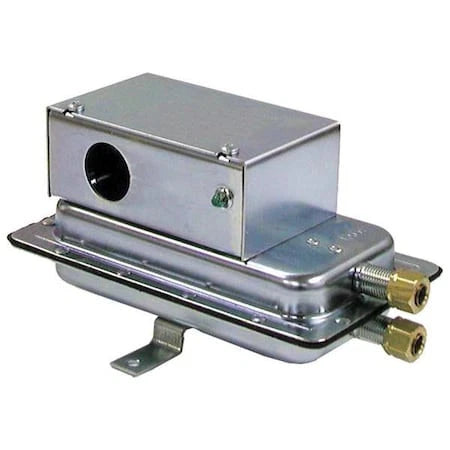

Robertshaw 2374-503 Pressure Switch

Product Description

The Robertshaw 2374-503 is a pressure switch suitable for sensing different air pressures. It is constructed with a stainless steel housing and features a Single Pole Double Throw contact form. This switch is adjustable in the field and comes with necessary mounting hardware and an adjustment tool.

• Field adjustable with included hardware
• SPDT contact form for various applications
• Durable stainless steel construction

Product Highlights

This pressure switch is ideal for use in HVAC systems, air filtration setups, and humidity detection. It connects to various tubing sizes and is designed for vertical mounting to ensure optimal diaphragm function.

Product Information

Standard Information

• Brand: Robertshaw
• Model: 2374-503

Technical Specifications

• Material: Metal
• Type: Pressure Sensing Switch
• Electrical Rating: 5 Amps @ 120-277V AC, 5 Amps @ 28V DC
• Switch Type: SPDT
• Maximum Differential Pressure Setting: 0.8 in wc
• Operating Temperature Range: -40 to 180 °F
• Agency Compliance: UL, CSA, FM
• Dimensions: Length 6.600 inches, Width 4.800 inches, Depth 4.800 inches
