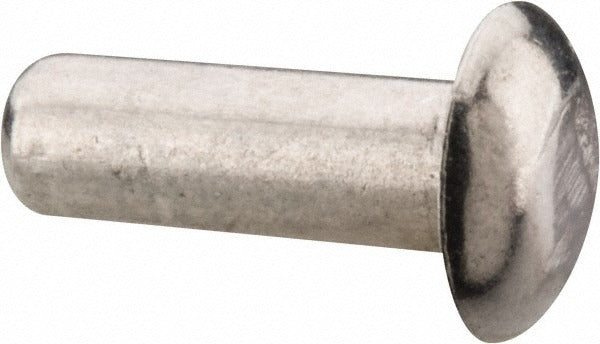

Rivetking. 12N37RUNAP/1100 Solid Rivet Uncoated Aluminum

Product Description

The RIVETKING. 12N37RUNAP/1100 is a solid rivet manufactured from Grade 1100 aluminum with an uncoated finish. It features a body diameter of 0.125 inches and a length under head of 0.375 inches. Solid rivets are permanent mechanical fasteners driven with a rivet hammer or squeeze tool, forming a shop head on the tail end to clamp materials together. This rivet is suited for structural and non-structural joining applications across sheet metal, HVAC ductwork fabrication, electrical enclosures, and general trade assembly work. Installation is performed by sheet metal workers, HVAC technicians, and fabricators as part of standard fastening operations.

This rivet is a universal uncoated aluminum solid rivet intended for general-purpose fastening in light fabrication and assembly scenarios. Grade 1100 aluminum provides good corrosion resistance and workability, making it appropriate for indoor and protected outdoor applications where a bare aluminum finish is acceptable. It is commonly used in HVAC duct assembly, electrical panel fabrication, and similar trade installations requiring a reliable, lightweight permanent fastener.

Key Features

• Body diameter of 0.125 inches for standard light-gauge material applications
• Length under head of 0.375 inches for typical sheet stack thicknesses
• Grade 1100 aluminum material offers good corrosion resistance and workability
• Uncoated finish suitable for applications where bare aluminum is acceptable
• Solid rivet construction forms a permanent, vibration-resistant mechanical joint

Compatibility

Designed as a general-purpose solid rivet for use in light fabrication applications compatible with standard 0.125 inch body diameter rivet holes in aluminum and similar light-gauge materials.

Installation Notes

Solid rivets are installed by sheet metal workers, HVAC technicians, and fabricators using a rivet hammer, bucking bar, or pneumatic squeeze tool. Always drill or punch the hole to the correct diameter to match the rivet body before installation. De-energize and lock out any electrical or mechanical system before performing fastening work on live assemblies. Do not reuse driven solid rivets, as the shop head integrity cannot be verified after removal.
