Product Description

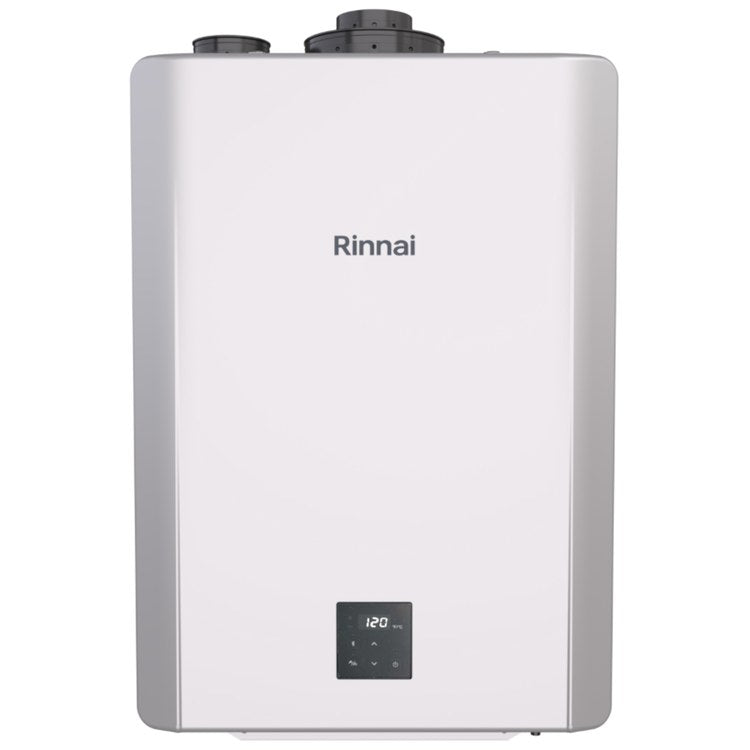

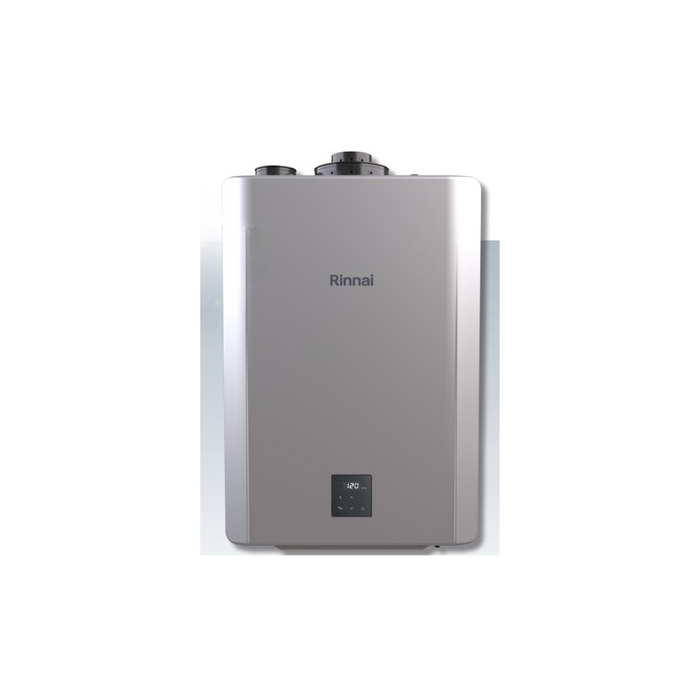

The Rinnai RX199IN Sensei RX tankless water heater has a flow rate of 11 gallons per minute and is designed for residential use. It operates on either natural gas or propane and features a condensing design with a 199K BTU. The smart sense gas valve adjusts to either natural gas or propane.
- Tankless water heater
- 11 Gallons per Minute
- Natural Gas or Propane
Product Highlights
This Rinnai tankless water heater provides an endless supply of hot water and saves energy by only heating water when you need it.
Product Information
Standard Information
-
Brand: RINNAI
-
Manufacturer Part Number: RX199IN
Technical Specifications
-
Brand: Rinnai
-
Product Type: Tankless 11GPM
-
Fuel Type: Natural Gas or Propane
-
Style: Condensing
-
BTU: 199K BTU
-
Efficiency: 97%
-
Part Number: RX199IN
-
Warranty: 15 Year
-
Application: Residential
-
Width: 18-1/2IN
-
Height: 30-1/9IN
-
Depth: 11-2/5IN
-
Capacity: 11.1 Gallons
-
Power Source: Gas Powered
-
Special Feature: Smart Sense gas control system, Versa Vent
-
Wattage: 98 watts
-
Voltage: 120 Volts
-
Maximum Flow Rate: 11 Gallons Per Minute
-
Maximum Temperature: 140 Degrees Fahrenheit
-
Heat Output: 199000 British Thermal Units
-
Maximum Operating Pressure: 150 Pound per Square Inch
-
Mounting Type: Wall
-
Is Electric: No
-
Manufacturer: Rinnai America Corporation
-
Item model number: RX199iN
-
Item Package Quantity: 1
-
Included Components: Water Heater Sensei RX 11 GPM
-
Batteries Required?: No
-
Min/Max BTU: 15,00/199,000
-
UEF: 0.98
-
Built in Pump: No
-
Smart-Circ capable: with installation of pump or pump accessory kit
-
Installation Type: Indoor Units (Includes optional outdoor installations with use of the Rinnai outdoor vent cap accessory (RXOVC) )
-
Temperature Setting: Minimum: Normal Operation: 98°F (37°C) (Crossover Mode: 120°F (49°C)) Maximum: Default: 120°F (49°C) with Parameter Adjustment: 140°F (60°C)
-
Minimum Activation Rate: 0.13 GPM (0.5 L/MIN)
-
Flow Rate(Min-Max): 0.13-11.1 GPM (0.5-42 L/MIN)
-
Controller (Standard): INTEGRATED
-
Controllers (Optional): MC-601; for scheduled recirculation use MC-195T-US or RWM200 Wireless Module
-
Warranty (Residential): Limited 15-year on heat exchanger, 5-year on parts, 1-year on labor. Register within 90 days and receive an additional 4 years of labor coverage for free ($250 value)
-
Mobile Home Certified: Yes
-
Thermal Bypass Crossover Valve in Box: NO
-
High Altitude Approved: UP TO 10,200 FT. (3,109 M)
-
Venting Options: Concentric/PVC/CPVC/PP Vent Cap (Outdoor Only)
-
Ultra Low NOx: YES
-
1/2" Gas Line Compatible: YES
-
Wi-Fi Ready: YES
-
Type: Tankless Water Heater
-
Product Line: Sensei
-
Product Sub-line: Super High Efficiency
-
Product Category: Water Heater - Tankless
-
Medium: Hot Water
-
Combustion Type: Condensing
-
Vent Type: Direct Vent
-
Venting Category: IV
-
Storage Type: Tankless
-
Installation Location: Indoor
-
Maximum Altitude: 10200 Feet
-
Includes Pump: No
-
Gas Conversion Kit: Not Required
-
Subscription Eligible: No
-
Maximum Input Capacity: 199000 BTU
-
Minimum Input Capacity: 15000 BTU
-
Flow Rate at 40F Temperature Rise: 9.8 GPM
-
Flow Rate at 45F Temperature Rise: 8.6 GPM
-
Flow Rate at 50F Temperature Rise: 7.8 GPM
-
Flow Rate at 60F Temperature Rise: 6.4 GPM
-
Flow Rate at 70F Temperature Rise: 5.6 GPM
-
Uniform Energy Factor: 0.98
-
Minimum Flow Rate: 0.5 GPM
-
Phase: 1
-
Frequency: 60 Hz
-
Primary Vent Pipe Diameter: 2 Inches
-
Gas Connection Size: 3/4 Inch
-
Cold Water Inlet: 3/4 Inch
-
Hot Water Outlet: 3/4 Inch
-
Product Height: 30 5/48 Inches
-
Product Width: 18 1/2 Inches
-
Product Depth: 11 19/48 Inches
-
Product Weight: 55 Pounds
-
Energy Star Listed: Yes
-
CSA Listed: Yes
-
AHRI Certified: Yes
-
AHRI Reference Number: 214013615
-
Parts Warranty: 5 Years
-
Heat Exchanger Warranty: 15 Years
