Product Description

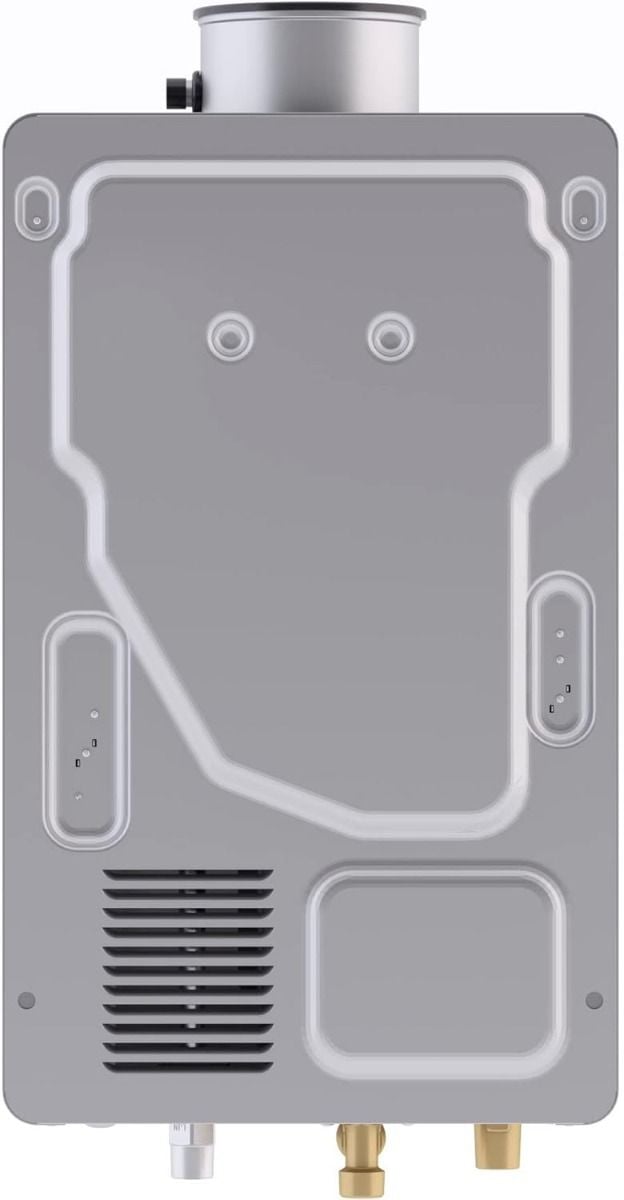

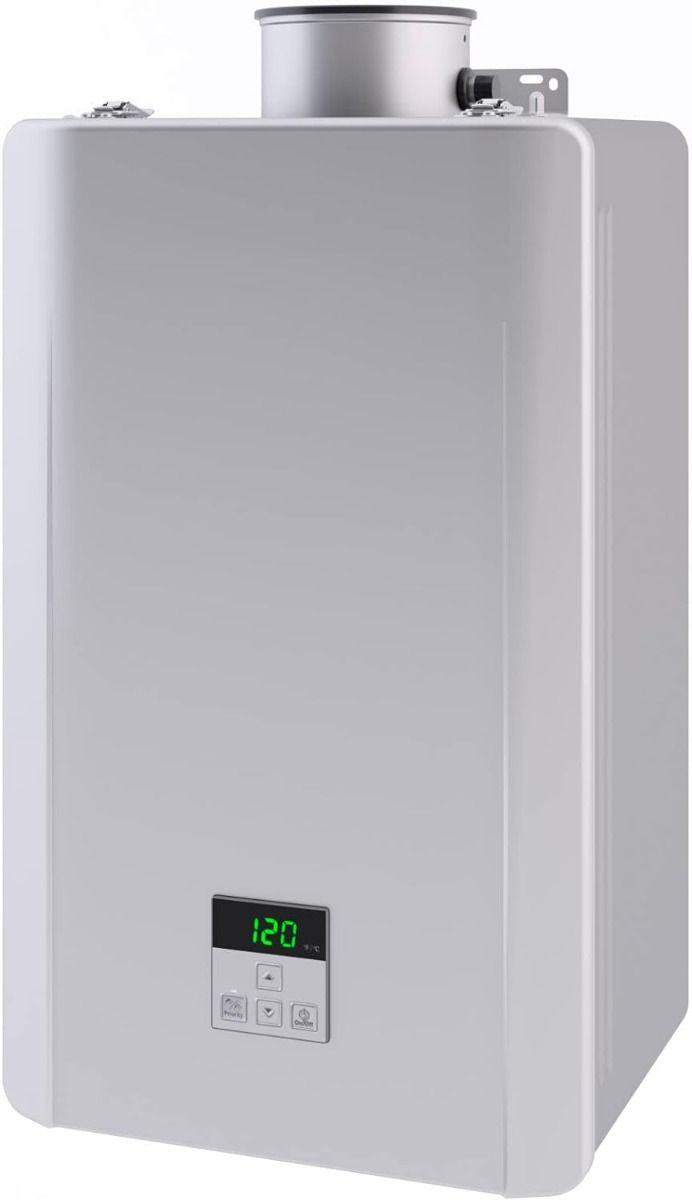

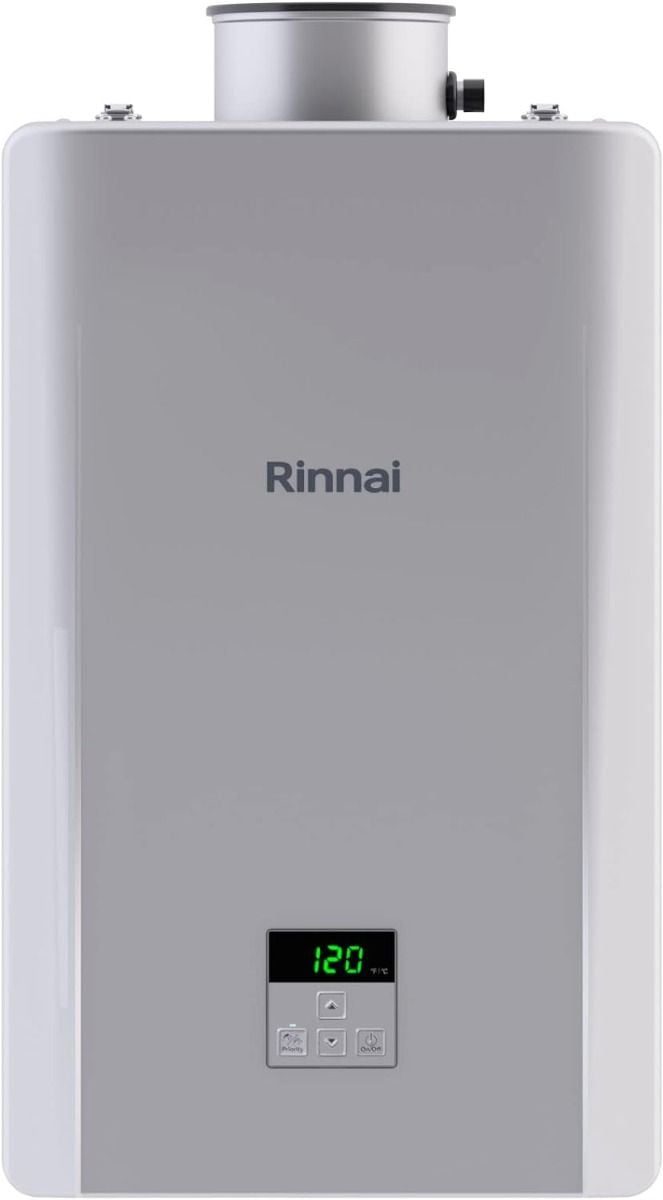

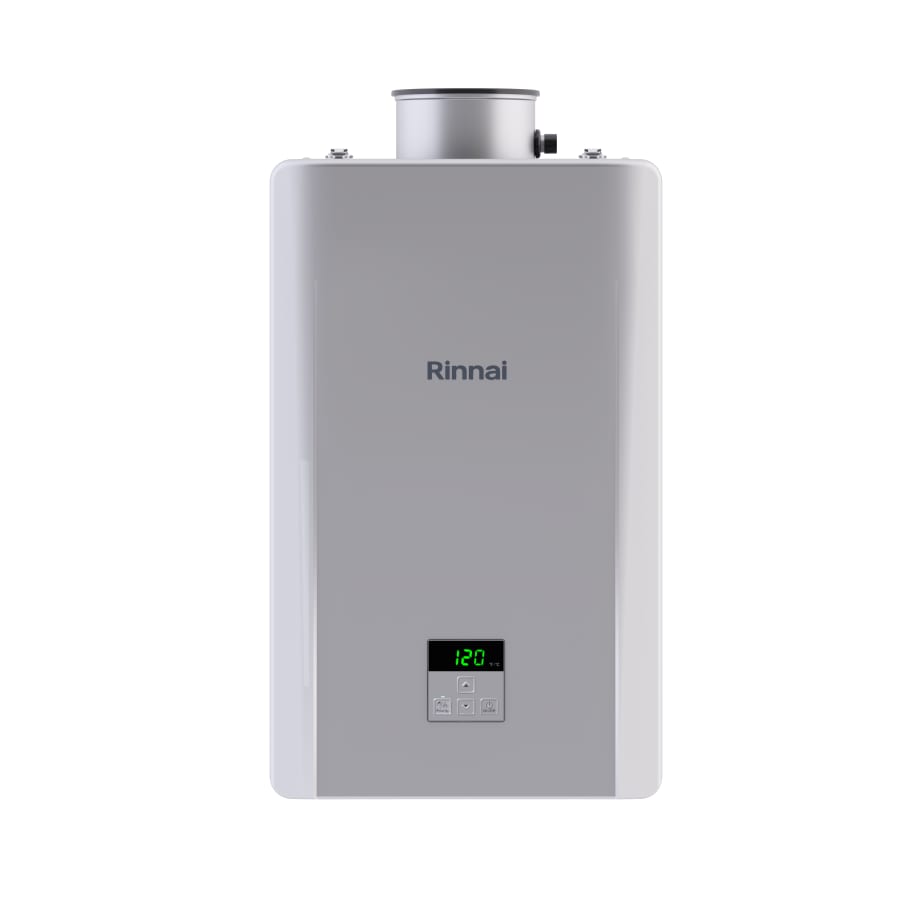

The Rinnai R-REP199iN Rep Model Series is a high-efficiency, non-condensing tankless water heater that includes a built-in recirculation pump. Ideal for small to medium homes, this natural gas unit is easy to install and reliable. It provides peace of mind with warranties that surpass the competition and is perfect for indoor locations.
- Uniform Energy Factor: 0.82
- Warranty 15 yr Heat Exchanger / 5 yr Parts / 1 yr Labor
- Includes a built-in recirculation pump.
Product Highlights
This Rinnai tankless water heater provides high efficiency and comfort. It's easy to install and reliable for indoor use.
Product Information
Standard Information
-
Brand: RINNAI
-
Manufacturer Part Number: R-REP199iN
-
Country of Origin: USA
Technical Specifications
-
Category: Tankless Water Heater
-
Fuel Type: Natural Gas
-
Voltage: 120v
-
Overall Dimensions (L x W x H): 10.77 x 14.05 x 27.28 in
-
Installation Type: Indoor Only
-
Model: R-REP199iN
-
SKU: 1229402
-
Maximum Flow Rate (gallons per minute): 7.9
-
Dimensions: H 27.28 in, W 14.05 in, D 10.77 in
-
Width: 14-1/16
-
Height: 27-1/4
-
Depth: 10-3/4
-
Gas Connection: 3/4"
-
Water Connection: 3/4 in NPT
-
Water Pressure (Min): 20 psi
-
Water Pressure (Max): 150 psi
-
Temperature (Min): 120 °F
-
Temperature (Max): 140 °F
-
Frequency: 60 Hz
-
Activation GPM: 0.4
-
Maximum Gas Input: 199000 BTU/hr
-
Minimum Flow Rate: 0.4 GPM
-
Minimum Gas Input: 1 BTU/hr
-
Energy Factor: 0.82
-
Altitude Certification: 10000 ft
-
Amperage: 4 A
-
Condensing: No
-
Default Temperature: 120 °F
-
Ignition Type: Electric
-
Max BTU Input: 199000
-
Power Source: Hardwired
-
Wattage: 30 W
-
Control Type: Electronic
-
Direct Vent: Yes
-
Heating Technology: Non-Condensing
-
Indoor Installation: Yes
-
Vent Type: Vent Free
-
Water Connection Type: MNPT, NPT
-
Recirculation: Yes
-
Approved for Commercial Use: No
-
Certifications: AHRI, CSA
-
Collection: High Efficiency
-
Commercial Warranty: 1 Year Labor, 5 Year Parts, 8 Year Heat Exchanger
-
Energy Star: No
-
Heat Exchanger Warranty: 15-Years Limited Residential
-
Made in America: Yes
-
Manufacturer Warranty: 1 Year Labor, 15 Year Heat Exchanger, 5 Year Parts
-
Mobile Home Approved: Yes
-
Outdoor Approved: No
-
Product Variation: Whole House Water Heater
-
Title 20 Compliant: Yes
-
Uniform Energy Factor: 0.82
-
Manufacturer Trade Model Number - U.S.: REP199iN
-
Product Depth: 10.77 in / (274 mm)
-
Product Height: 27.28 in / (693 mm)
-
Product Width: 14.05 in / (357 mm)
-
Product Weight: 50 lb / (22.7 kg)
-
Gas Type: Natural Gas
-
Wi-Fi Capable: Yes
-
Controller Standard: Integrated
-
Controller Optional: MC-195T-US, RWM101 (control r™), MC601, MCC601 (RE199/RE180)
-
MPN: REP199IN
-
GTIN: 0766156016349
-
UPC: 0766156016349
-
Water Connection Location: Bottom
-
Water Heater Profile: Compact
-
Heating System: Instantaneous (Tankless)
-
Features: Digital Display, Programmable
-
Mounting Location: Indoor, Wall
-
Smart Home Protocol: Wi-Fi
-
Power: Less than 100 W
-
Item Height: 27.28 in
