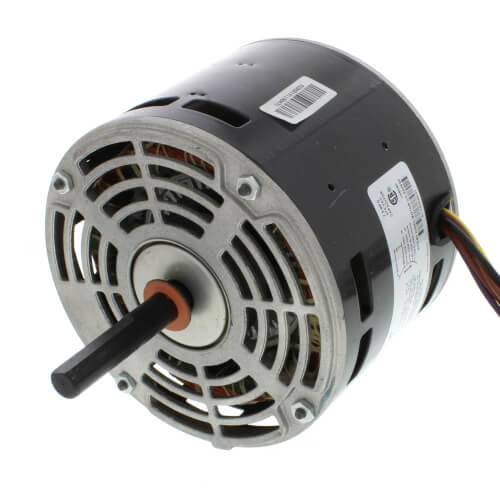

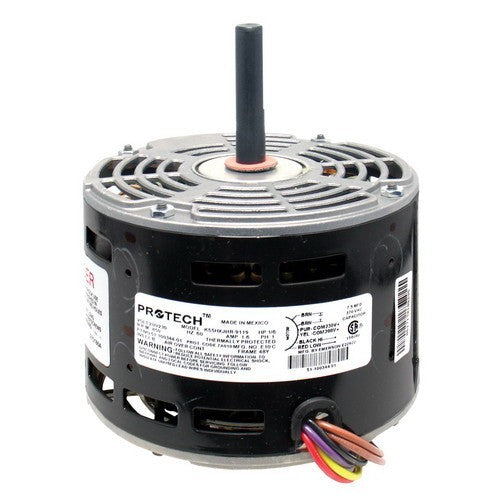

Rheem 51-100344-01 Blower Motor 1/6HP 825RPM 208/230V

Product Description

The Rheem 51-100344-01 Blower Motor is designed for reliable and efficient performance in HVAC systems. It features a 1/6 horsepower capability and operates at 825 RPM with a voltage rating of 208 to 230V. This motor is ideal for replacing or upgrading the blower motor in your indoor HVAC unit.

• Operates with a power requirement of 208/230 volts.
• Delivers a steady 825 RPM for optimal air flow.
• Supports 1-Phase electric power.

Product Highlights

This blower motor features a counterclockwise rotation and a sleeve bearing type, enhancing its efficiency and lifespan. Designed for direct drive applications, it ensures a straightforward installation with minimal maintenance.

Product Information

Standard Information

• Brand: Rheem
• MPN: 51-100344-01

Technical Specifications

• RPM: 825 rpm
• Horse Power: 1/6 HP
• Voltage Rating: 208 to 230V
• Phase: 1-Phase
• Shaft Diameter: 1/2 inch
• Shaft Length: 4 inches
• Mounting Type: Shell-Band, Shell-Screw
• Bearing Type: Sleeve
• Amperage Rating: 1.6A
• Rotation: Counterclockwise
