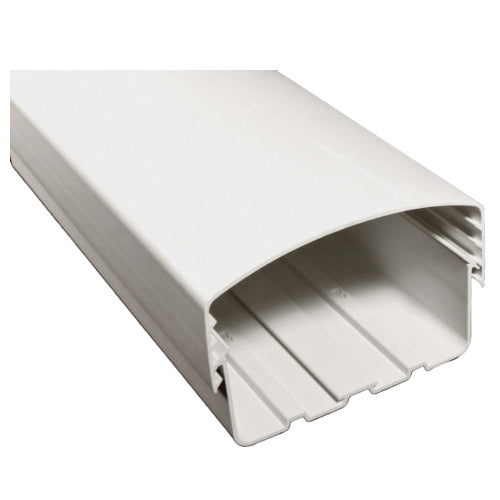

Rheem CGDUC78 Line Duct 78 inch Line Hide

Product Description

The Rheem CGDUC78 Line Duct is a channel designed for hiding and protecting line sets in both commercial and residential settings. This product measures seventy-eight inches in length and features a white base and cover that can adapt to multi-zone installations. It works with Cover Guard Adjustable Line Set Covers and comes with tie-in clips and peel-n-go film for a streamlined installation process.

• Protects line sets from environmental factors.
• Expands to support multi-zone setups.
• Includes installation tie-in clips and peel-n-go film.

Product Highlights

The Rheem CGDUC78 Line Duct is essential for maintaining the integrity of line sets by shielding them from weather and other external impacts.

Product Information

Standard Information

• Product Group: Line Hide
• Application: Commercial and Residential Applications

Technical Specifications

• Color: White
• Includes: Tie-In Clips and Peel-N-Go Film
• For Use With: Cover Guard Adjustable Line Set Covers
• Length: 78 inches
• Width: 5 inches
• Height: 2.7 to 3.75 inches
• Standard: UL 94 Flammability V-0
• Operating Temperature: 4 to 140 degrees F
