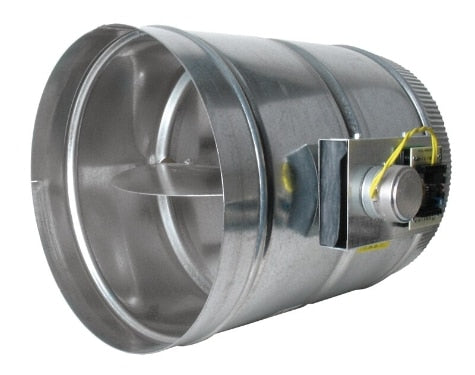

RHEEM 101ARZD09 Damper Round Low Pressure 9 in. Replacement MPN 101ARZD09

Product Description

The RHEEM 101ARZD09 is a round low-pressure damper suitable for zone control systems. This nine-inch damper regulates airflow in HVAC systems to achieve efficient temperature distribution. It operates with a power close and spring open mechanism, featuring a stroke of ninety degrees.

• Damper shape: Round blade
• Duct opening diameter: Nine inches
• Compatible with System 1000 and System 2000

Product Highlights

This damper is engineered for HVAC systems, ensuring consistent airflow and temperature control.

Product Information

Standard Information

• Series: 101ARZD
• Damper Type: Zone

Technical Specifications

• Input (VAC): 24
• Power Consumption (VA): 12
• Maximum Pressure Differential (in. W.C.): 0.50
• Pressure Drop at Rated Airflow (in. W.C.): 0.09
• Communication: 18/5 AWG daisy chain
• Clearance Width (in.): 13-1/4
• Length (in.): 11
• Output - Control Voltage (mVAC): 212
• Output - Measured (VAC): 24
• Pressure Differential Classification: Low
• Replacement Damper Motor: 101AMRP
• Replacement Damper Relay Board: 101ARLY
• Replacement Damper Spring: TRSPRING
• Stroke/Travel: 90 degrees
• System Compatibility: System 1000 | System 2000
