Rheem 101AHDM Damper Motor

Product Description

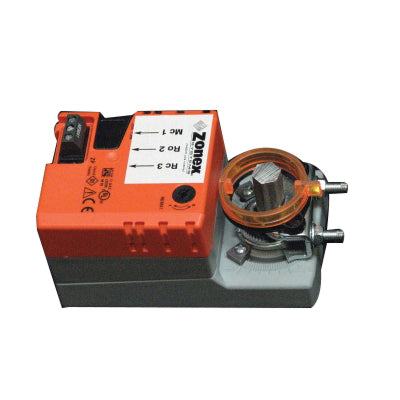

The Rheem 101AHDM is a power open and power close actuator designed for Zonex Systems. It operates on 24 VAC and is suitable for medium pressure and heavy-duty dampers. This actuator can retrofit generic VAV boxes and dampers with shafts ranging from one-quarter to five-eighths inches in diameter and two inches in length.

• Connects directly to the damper shaft.
• Features adjustable open and close stops.
• Includes a direction reverse switch.

Product Highlights

The Rheem 101AHDM operates efficiently in specified two-position and modulating applications, ensuring compatibility with all Zonex control systems.

Product Information

Standard Information

• MPN: 101AHDM
• Voltage Rating: 24 V

Technical Specifications

• Frequency Rating: 50/60 Hz
• Power Consumption: 1.5 W
• VA Rating: 2.5 VA
• Torque Rating: 45 in-lb
• Operating Temperature: -22 to 122 deg F, -40 to 176 deg F
• Humidity Rating: 5 to 95% Non-Condensing
• Dimensions: 2.34 in H x 4.57 in W x 2.6 in D
• Rotation Angle: 95 deg
• Shaft Size: 1/4 to 5/8 x 2 in
• Sound Level: 35 dB
• Motor Type: Damper Motors
