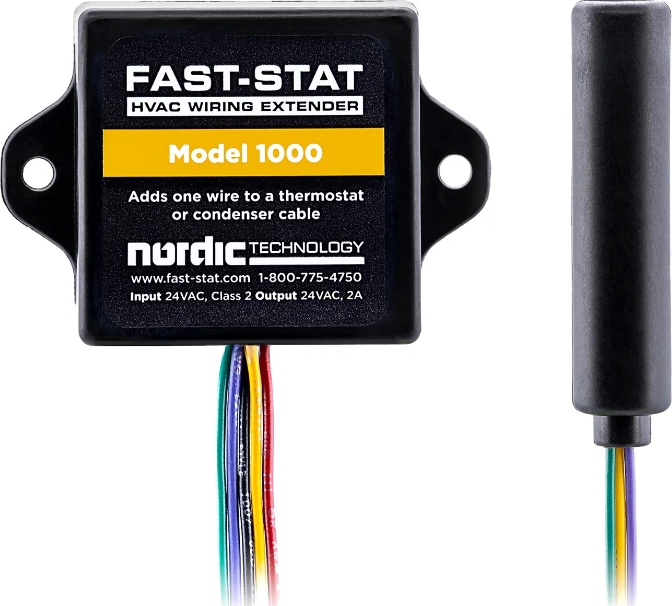

Rheem 1000 FS FAST-STAT 2-Contact Wire Extender - 24V, 1 ph, 2 A

Product Description

The RHEEM 1000 FS FAST-STAT Wire Extender offers a cost-effective solution for adding an extra conductor to existing thermostat or condenser cables. This wire extender eliminates the need to pull new wire through finished walls, saving time and labor during system installations, upgrades, or repairs. Designed for thermostat wiring with a voltage rating of 24 V and amperage rating of 2 A.

• Simple and cost-effective solution
• Adds an extra conductor to an existing thermostat or condenser cable
• Eliminates the need to pull new wire through finished walls

Product Highlights

The FAST-STAT wire extender is designed for HVAC systems and thermostat applications, simplifying the process of adding wiring without extensive wall modifications.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 1000 FS

Technical Specifications

• Amperage Rating: 2 A
• Application: Thermostat Wiring
• Electrical Connection Type: Wire / Pigtail Leads
• For Use With: HVAC Systems~Thermostat
• Function Type: Wire Extender
• Installation / Mounting Type: In-Wall
• Insulated: Yes
• Number of Connections: 2
• Package Quantity: 1
• Phase: 1 ph
• Product Family: FAST-STAT
• Product Type: Wire Extender
• Voltage Rating: 24 V
