Product Description

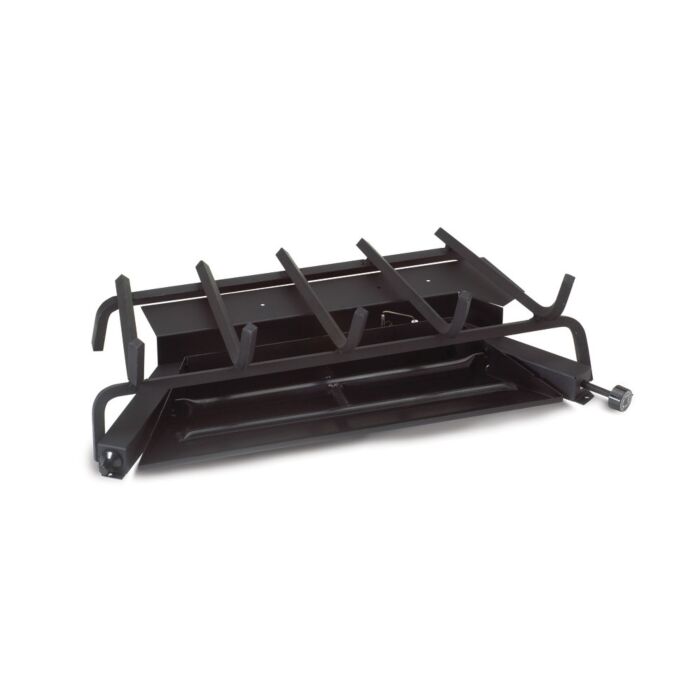

The RH PETERSON G46-30-17 vented burner is made with high-grade metal. The Triple T design enhances flame depth and creates natural-looking flames. This 30-inch burner system is easy to install and compatible with a wide range of Real Fyre log sets. It is ANSI-certified and equipped with an APK-17 safety standing pilot and variable remote.
- Durable design made with high-grade metal.

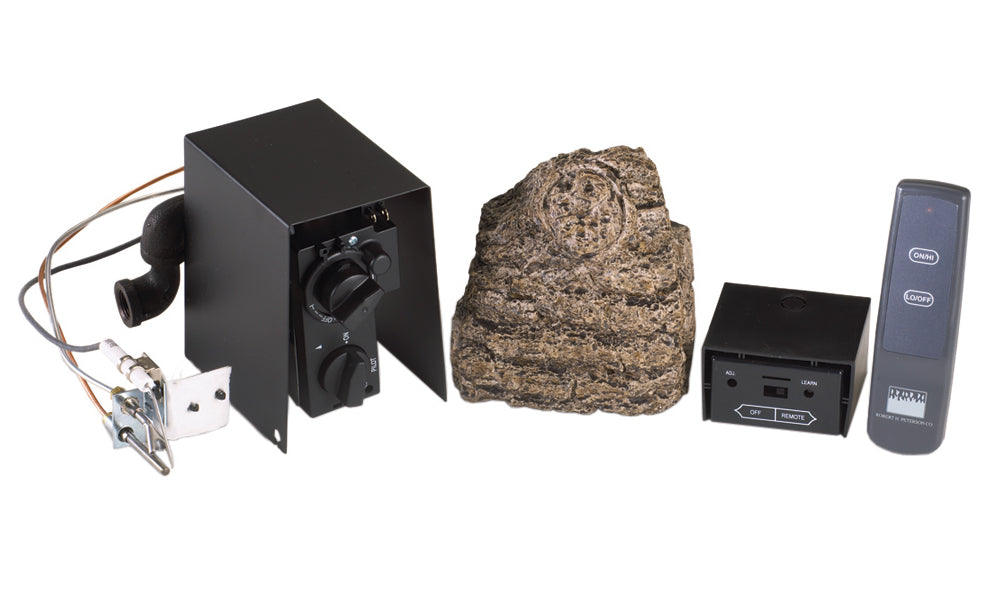

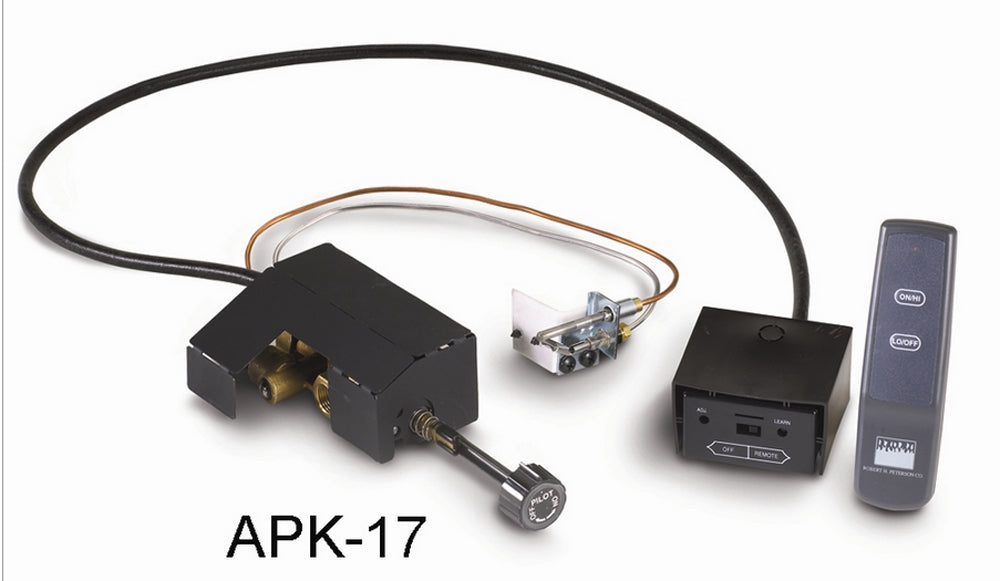

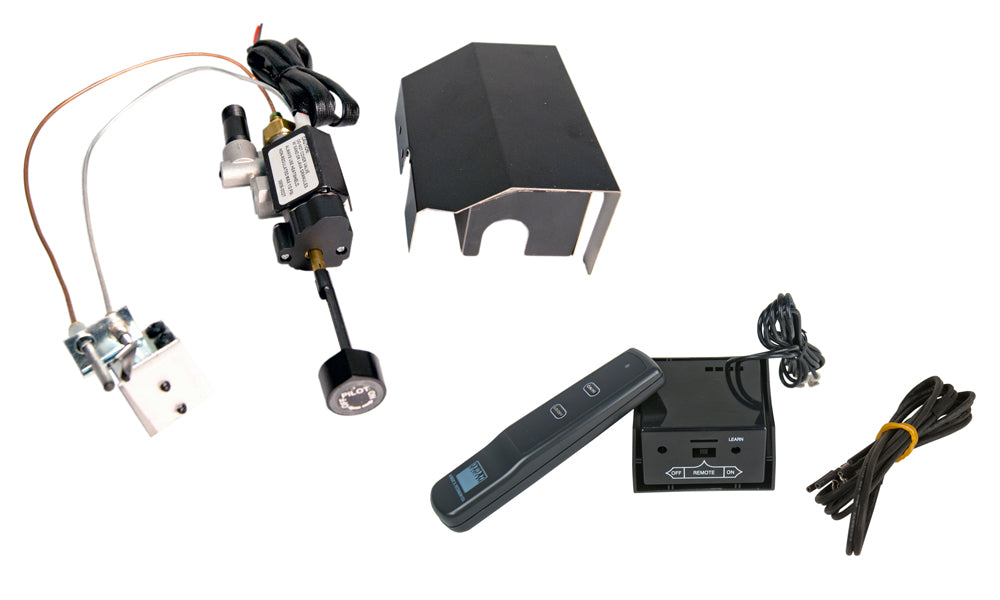

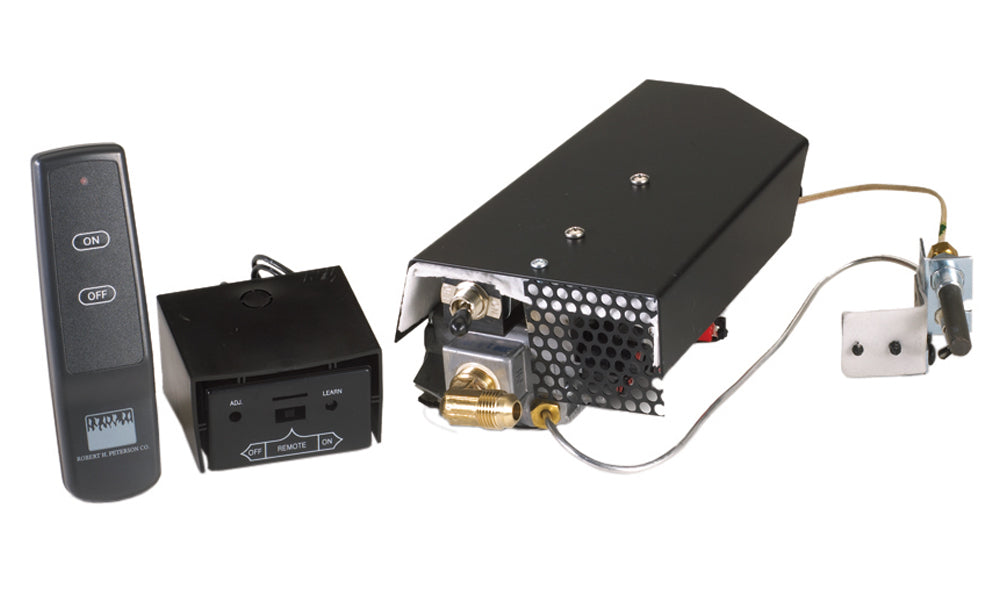

- APK-17 valve fireplace safety pilot kit has a variable remote control that ignites reliably.
- Triple T design delivers captivating flames and a deep ember glow.
Product Highlights
This propane fireplace burner saves on energy costs and delivers bold, captivating flames. It transforms your vented fireplace into a warm, glowing centerpiece.
Product Information
Standard Information
-
Brand: RH PETERSON
-
Manufacturer Part Number: G46-30-17
-
Country of Origin: USA
Technical Specifications
-
Brand: RH PETERSON
-
Power Source: Gas Powered
-
Material: Metal
-
Finish Type: Painted
-
Installation Type: Freestanding
-
Special Feature: Cordless
-
Style: Contemporary
-
Ventilation Type: vented
-
Chamber Width: 30 Inches
-
Chamber Depth: 15 Inches
-
Type: Burners
-
Burner Style: Standard
-
Size: 30"
-
Fireplace Location: Indoor
-
Burner Type: Gas Logs
-
Burner System: G46 Burner
-
Fireplace Style: Single Sided
-
Location of Use: Indoor
-
Type of Venting: Vented
-
Media Style: Traditional Log Set
-
Type of Grate: Standard
-
Fuel Type: Natural Gas (NG)
-
Allowable Log Set Sizes (in.): 30"
-
Allowable Log Sets: Real-Fyre Gas Log Set Not Included
-
Certified Usage: Mobile Home Approved
-
BTUs (Max.): 65000
-
Ignition Type: Electronic Ignition
-
Remote: Variable Flame Remote Included
-
Gas Connection Size (in.): 1/2"
-
Inlet Gas Pressure (Min.): 5.0" w.c.
-
Inlet Gas Pressure (Max.): 10.5" w.c.
-
Requirements for 30" Logs Req. Min. Front Width (in.): 35"
-
Req. Min. Rear Width (in.): 29"
-
Req. Min. Depth (in.): 15"
-
Req. Min. Height (in.): 17"
-
Chimney Height (Min. ft.): 15'
