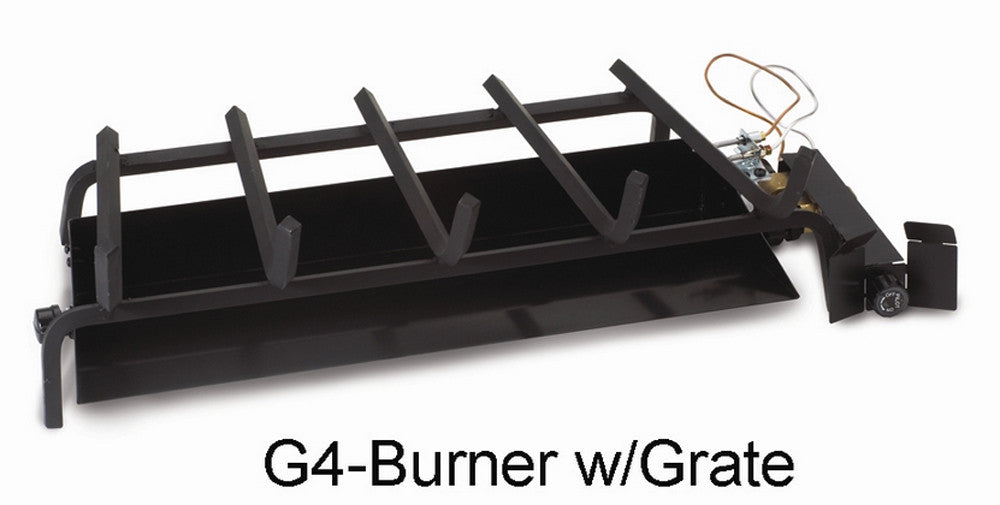

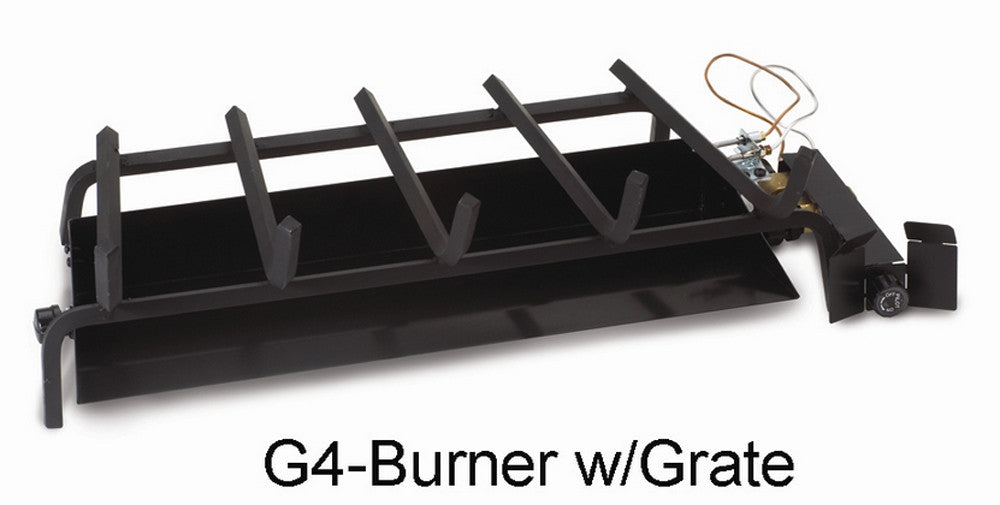

Rh Peterson G4-30 Glowing Ember Vented Gas Burner 30 in

Product Description

The RH PETERSON G4-30 is a 30-inch single-tube vented natural gas burner designed for indoor, single-sided gas fireplaces. Rated at 90,000 BTU/h maximum output, it uses a center-running burner tube that produces dancing flames across its full length along with a glowing ember bed for a traditional log-fire appearance. Ignition is manual match-light with no remote capability. This is a base-model burner system intended for residential and mobile-home-approved installations. It is installed by qualified gas appliance technicians and must be paired with a compatible Real-Fyre log set, which is sold separately.

The G4-30 is suited for indoor single-sided fireplaces requiring a 30-inch vented burner on natural gas. It is approved for use in mobile homes. The system includes the burner pan, grate, glowing embers, sand, burner clips, a flex connector kit, and a damper clamp. Note that this burner does not produce the front-flame effect or the brighter ember glow of the G45 burner series. Inlet gas pressure must fall between 5.0 inches water column and 10.5 inches water column for proper operation.

Key Features

• Single-tube center burner produces full-length flame distribution across 30 inches
• Glowing ember system included for traditional log-fire aesthetics
• 90,000 BTU/h maximum heat output on natural gas
• Manual match-light ignition — no remote or electronic ignition required
• Mobile home approved for expanded installation eligibility
• Complete system kit includes burner pan, grate, embers, sand, clips, flex connector, and damper clamp

Compatibility

This burner is certified to work with specific Real-Fyre gas log sets sized for 30-inch burners only. Burners are not universal — using a non-compatible log set creates risk of fire, carbon monoxide poisoning, and property damage. The compatible log set is not included and must be purchased separately. Confirm log set compatibility with the manufacturer before installation.

Installation Notes

Installation must be performed by a licensed gas appliance technician in accordance with local codes and the appliance manufacturer instructions. Shut off the gas supply completely before connecting or servicing any burner components. The vented burner requires a properly functioning fireplace damper — use the included damper clamp to prevent accidental closure during operation. Never operate this burner with a log set that is not explicitly listed as compatible by the manufacturer.

Technical Specifications

• BTU/h Output (Max): 90,000 BTU/h
• Burner Size: 30 inches
• Fuel Type: Natural Gas
• Ignition Type: Manual Match Light
• Venting Type: Vented
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Gas Connection Size: 1/2 inch
• Inlet Gas Pressure (Min): 5.0 inches water column
• Inlet Gas Pressure (Max): 10.5 inches water column
• Certifications: Mobile Home Approved

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G4-30
