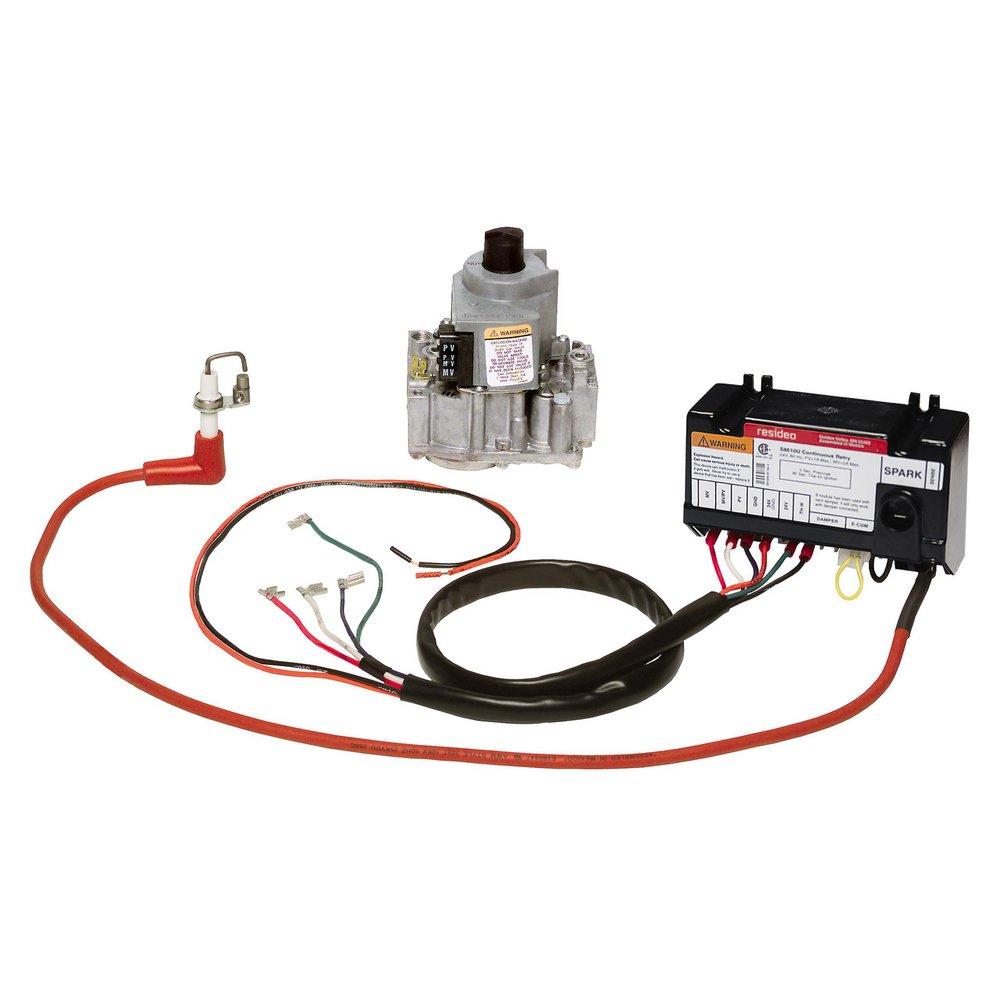

Resideo Y8610U6006 Intermittent Pilot Retrofit Kit 270 kBtuh

Product Description

The Resideo Y8610U6006 Intermittent Pilot Retrofit Kit is designed for upgrading 270,000 BTU units, offering efficient ignition solutions for gas-fired furnaces, boilers, and heating appliances. The retrofit kit automates the pilot's ignition process, enhancing safety and efficiency.

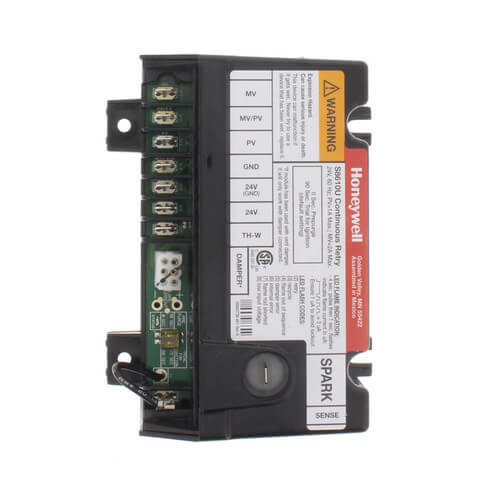

• Provides electronic control of intermittent pilot ignition systems.

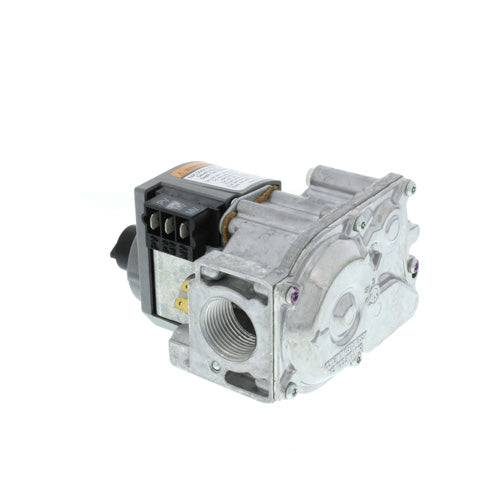

• Includes VR8304M3558 valve, adjustments for natural or LP gas.
• Features a high-voltage internal spark generator for reliable ignition.

Product Highlights

This retrofit kit is specifically crafted for 24 Vac gas-fired atmospheric furnaces, boilers, and other heating appliances. It transforms conventional standing pilot systems to a more efficient intermittent pilot system. The kit includes continuous retry mechanisms, ensuring the pilot lights up or safely shuts off gas flow after multiple attempts, enhancing operational safety and gas efficiency.

Product Information

Standard Information

• System Type: Intermittent Pilot
• Ignition Sequence: Continuous retry with automatic shutoff

Technical Specifications

• Type of Gas: Usable with Natural or LP gas
• Flame Sense: Single Rod or Two Rods configuration
• Ignition Source: Internal high voltage spark generator
• Prepurge Options: 0 or 30 seconds
• Ignition Trials to Lockout: Continuous retry
• Lockout Timing: 15 or 90 seconds
