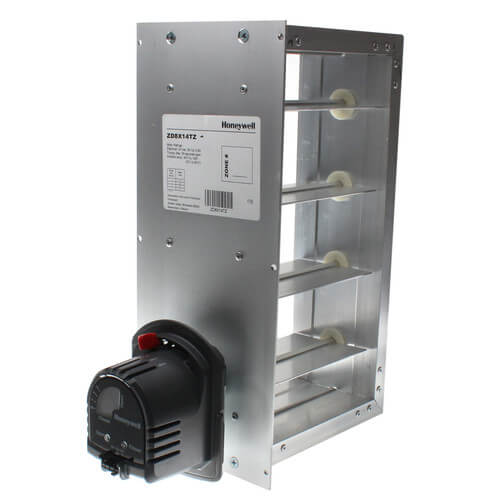

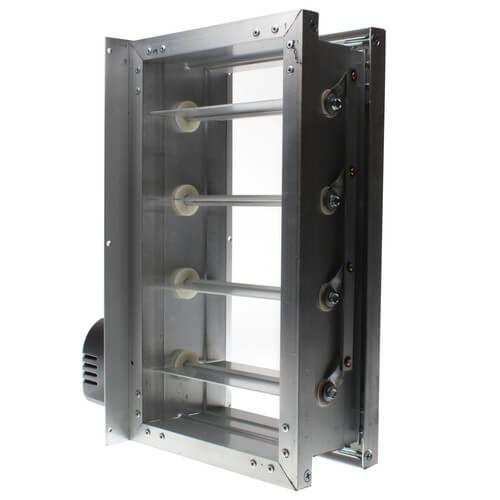

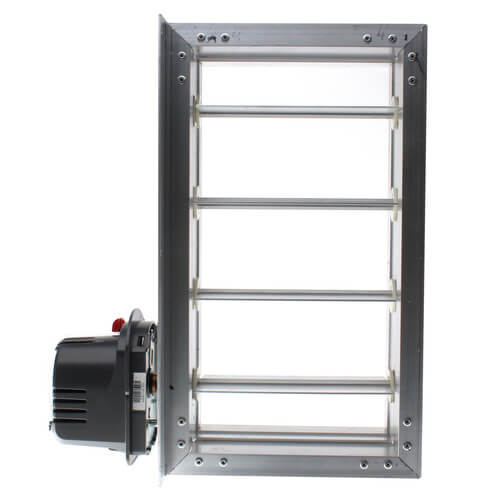

Resideo ZD8X14TZ TrueZONE Rectangular Parallel Blade Damper 8 Inch x 14 Inch Replacement ZD8X14

Product Description

The Resideo ZD8X14TZ TrueZONE Damper is crafted for superior control of circulating air in various heating, cooling, and ventilation systems. This model is compatible with TrueZONE and other advanced zoning systems, making it a reliable choice for residential and commercial environments.

• Engineered with Kevlar gearing to enhance durability and extend damper life.
• Features adjustable range stops and a visual position indicator for precise control.
• Constructed from extruded aluminum for robustness and reliability.

Product Highlights

Thoughtfully designed with fewer blades to reduce noise, the ZD8X14TZ offers a quieter operation and low leakage performance. Its simple two-wire installation process and fail-safe, normally open operation simplify setup and integration into existing systems.

Technical Specifications

• Brand: Resideo
• MPN: ZD8X14TZ
• Size: 8 inches by 14 inches
• Motor: 24V spring return
• Shape: Rectangular
• Voltage: 24V
• Installation: Motor on longer dimension side
