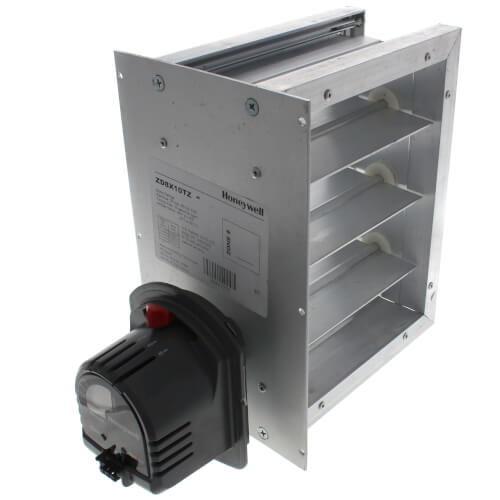

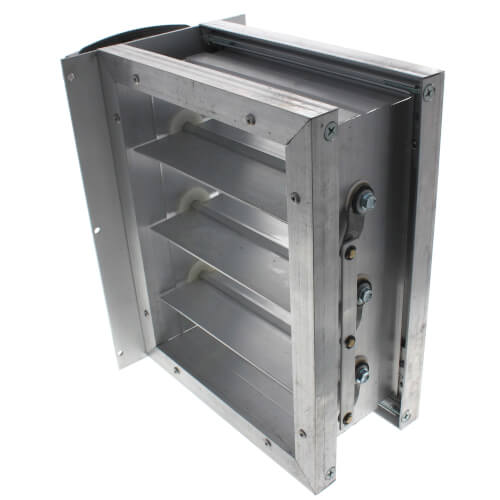

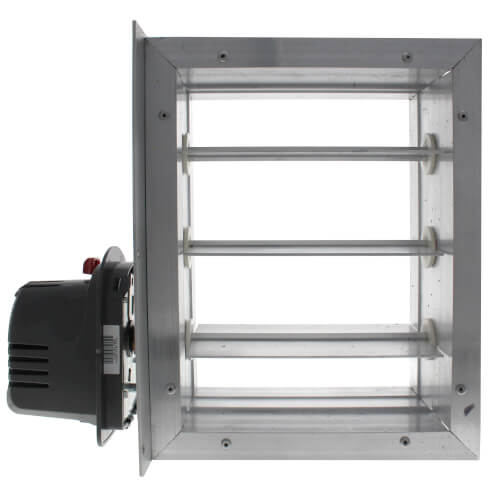

Resideo ZD8X10TZ 8 in. x 10 in. TrueZONE Rectangular Parallel Blade Damper

Product Description

The Resideo ZD8X10TZ damper features a 24-volt motor designed for managing air circulation in heating, cooling, and ventilating systems. This model is ideal for TrueZONE systems and other electronic zoning setups.

• Power close and spring open operation
• Compatible with various zoning systems
• Easy two-wire installation

Product Highlights

This ZD model ensures low leakage performance with a parallel blade design. The motor mounts on the 10-inch side, making it suitable for versatile installations.

Product Information

Standard Information

• MPN: ZD8X10TZ
• Manufacturer: Resideo
• Brand: Honeywell Home

Technical Specifications

• Size: 8 in. x 10 in.
• Motor: Spring Return
• Shape: Rectangular
• Voltage: 24v
• Wires to Motor: 2
• Weight: 4.735 lbs
• Shipping Depth: 16.7 inches
• Shipping Width: 10.55 inches
• Shipping Height: 7 inches
• Motor Side: 10 inches
• Application: Air Quality
• Features: Adjustable Range Stops
