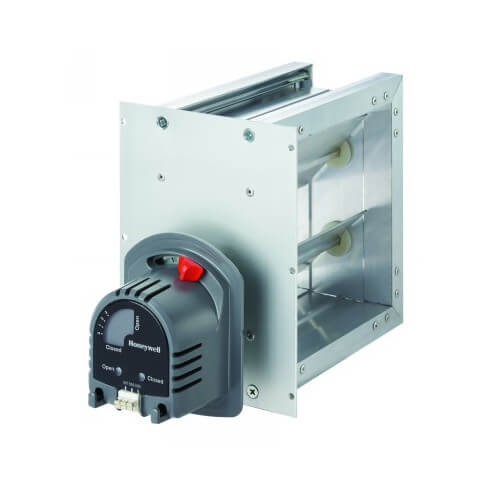

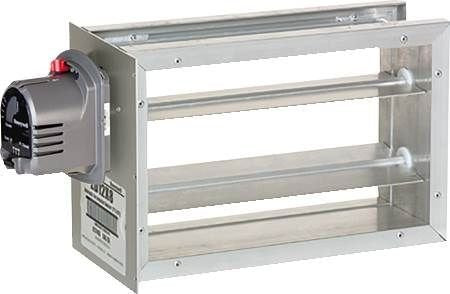

Resideo ZD26X8TZ TrueZONE Rectangular Parallel Blade Damper 24V

Product Description

The Resideo ZD26X8TZ TrueZONE Rectangular Parallel Blade Damper is engineered for robustness, designed predominantly for controlling air flow in HVAC systems. Precisely execute environmental control with this 26 inches by 8 inches damper, operated by a 24-volt motor.

• Keeps harsh conditions in check with durable construction and Kevlar gearing
• Installation is straightforward with a two-wire system
• Incorporates adjustable range stops and a mechanical position indicator for enhanced functionality

Product Highlights

This product ensures superior air management with a parallel blade design, adding to the system's efficiency. It is optimal for both commercial and residential setups requiring regular zone control. Manufactured with extruded aluminum frame and blades, the damper offers low leakage performance.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: ZD26X8TZ
• Use: Ideal for air quality control within HVAC systems

Technical Specifications

• Size: 26 inches by 8 inches
• Motor Voltage: 24V
• Configuration: Parallel blade
• Operation: Spring return
• Weight: 7.37 lbs
