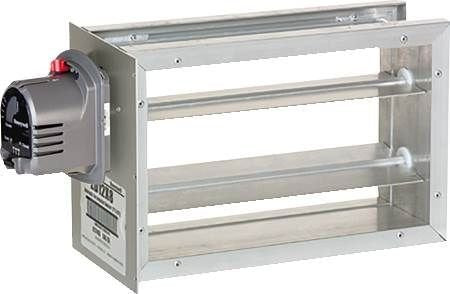

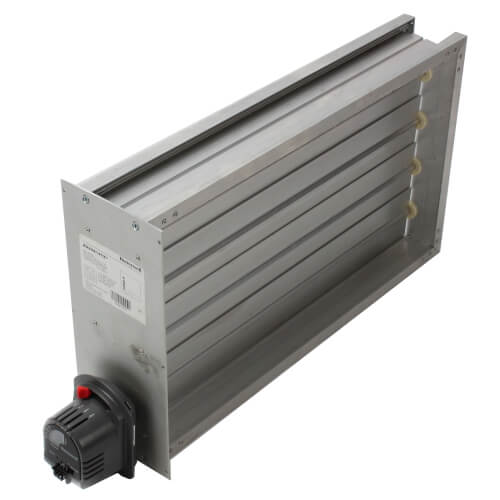

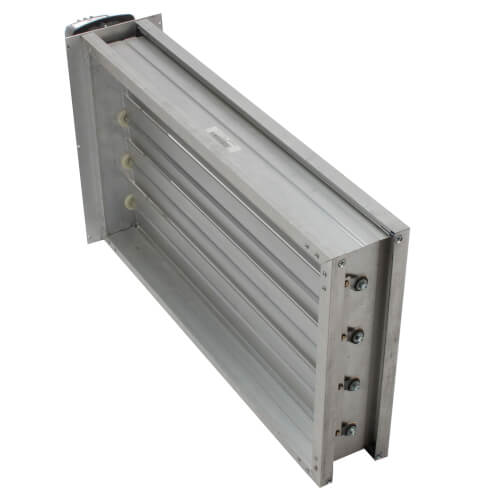

Resideo ZD24X14TZ 24 in. x 14 in. TrueZONE Rectangular Parallel Blade Damper

Product Description

The Resideo ZD24X14TZ TrueZONE Damper is designed for robust performance in HVAC systems, ensuring precise control of air flow in heating, cooling, and ventilating applications. This 24-inch by 14-inch damper offers both a power close and spring open operation, suited for systems that require normally-open configurations.

• Equipped with a 24V motor and Kevlar gearing for extended durability and performance.
• Features adjustable range stops and a visual position indicator for easy status checks.
• Compatible with both conventional and networked zoning systems.

Product Highlights

Constructed from extruded aluminum, the Resideo ZD24X14TZ Damper utilizes a parallel blade design to minimize leakage and ensure quieter operation with fewer blades. Its compact frame can be installed in any orientation, offering versatility in setup.

Product Information

Standard Information

• Motor Type: Spring Return
• Installation: Flexible, can be mounted on either bottom or side of the duct

Technical Specifications

• Dimensions: 24 inches x 14 inches
• Control: 24-volt spring-return motor
• Construction: Extruded aluminum frame and blades
• Application: Suitable for air quality control within HVAC systems
Motor Configuration: Motor positioned on the 14-inch side
