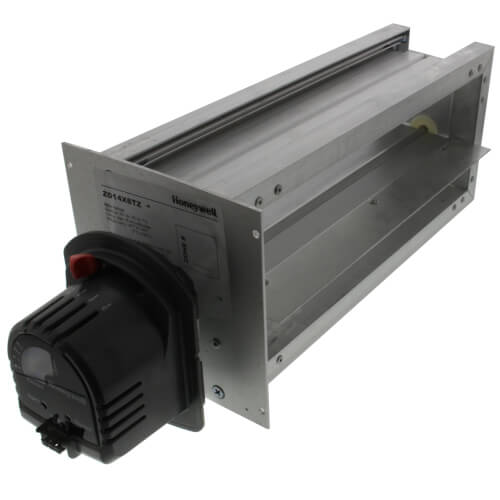

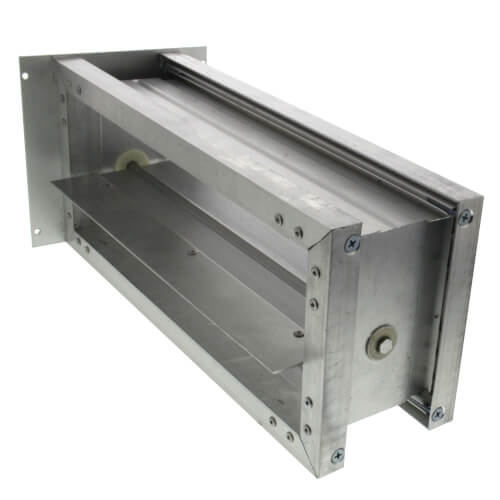

Resideo ZD14X6TZ 14 in. x 6 in. TrueZONE Rectangular Parallel Blade Damper

Product Description

The Resideo ZD14X6TZ 14 in. x 6 in. TrueZONE Rectangular Parallel Blade Damper is engineered to control circulating air in heating, cooling, and ventilating systems. This damper features a 24-volt spring-return motor that ensures reliable operation. Designed for use with TrueZONE systems and other electronic zoning systems, it offers efficient control of airflow.

• Kevlar gearing reduces wear
• Adjustable range stops
• 24-volt spring-return motor

Product Highlights

This damper integrates Kevlar gearing to enhance durability, adjustable range stops, and a mechanical visual position indicator for easy monitoring. Its extruded aluminum frame and blades offer solid structure and low leakage performance, while a quieter operation is achieved with fewer blades.

Product Information

Standard Information

• Brand: Resideo
• MPN: ZD14X6TZ
• Size: 14 in. x 6 in.
• Voltage: 24v
• Motor Type: Spring Return

Technical Specifications

• Weight: 4.97 pounds
• Length: 25 inches
• Width: 6.5 inches
• Height: 6.5 inches
• Shipping Depth: 25.35 inches
• Shipping Width: 6.95 inches
• Shipping Height: 6.6 inches
