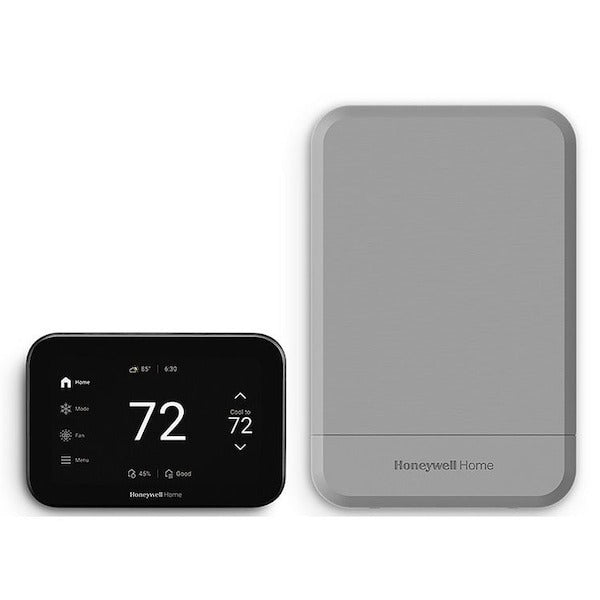

Resideo ythx1200b8 Smart Thermostat Kit Redlink 3.0 Eim Black

Product Description

The RESIDEO ythx1200b8 is a smart thermostat kit designed for residential HVAC systems requiring advanced zoning and indoor air quality control. The kit ships with the thermostat, a wireless indoor sensor, and an Equipment Interface Module (EIM) that uses Redlink 3.0 wireless communication. The touchscreen interface supports customizable display settings. Staging capacity reaches 4H/2C for heat pump systems or 3H/4C for conventional systems, making this unit suitable for multi-stage equipment where simpler thermostats fall short. Installation is handled by licensed HVAC technicians familiar with low-voltage control wiring and wireless system commissioning.

This thermostat kit is intended for residential applications where a multi-stage heat pump or conventional forced-air system is in place. The included EIM expands equipment connectivity beyond what a standard sub-base allows, supporting complex staging configurations. The wireless indoor sensor enables remote temperature sensing without running additional control wiring. The unit mounts horizontally to a wall or standard J-box and is finished in black to suit modern interior aesthetics. Trades installing multi-stage heat pumps or high-efficiency conventional systems will find the staging range appropriate for most residential equipment configurations.

Key Features

• Redlink 3.0 wireless communication between thermostat, EIM, and indoor sensor
• Supports 4H/2C heat pump or 3H/4C conventional staging configurations
• Kit includes thermostat, wireless indoor sensor, and Equipment Interface Module
• Customizable touchscreen display
• Horizontal wall mount compatible with standard J-box
• Black finish

Compatibility

Designed as an OEM-style smart thermostat replacement for residential multi-stage heat pump and conventional forced-air HVAC systems requiring an equipment interface module.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage thermostat wiring and wireless system configuration. Power down the HVAC system at the breaker before disconnecting the existing thermostat or wiring the EIM. Follow local codes and the manufacturer wiring guide when connecting multi-stage equipment terminals. Commission the Redlink wireless link between the thermostat, EIM, and indoor sensor before restoring power and testing all stages.
