Product Description

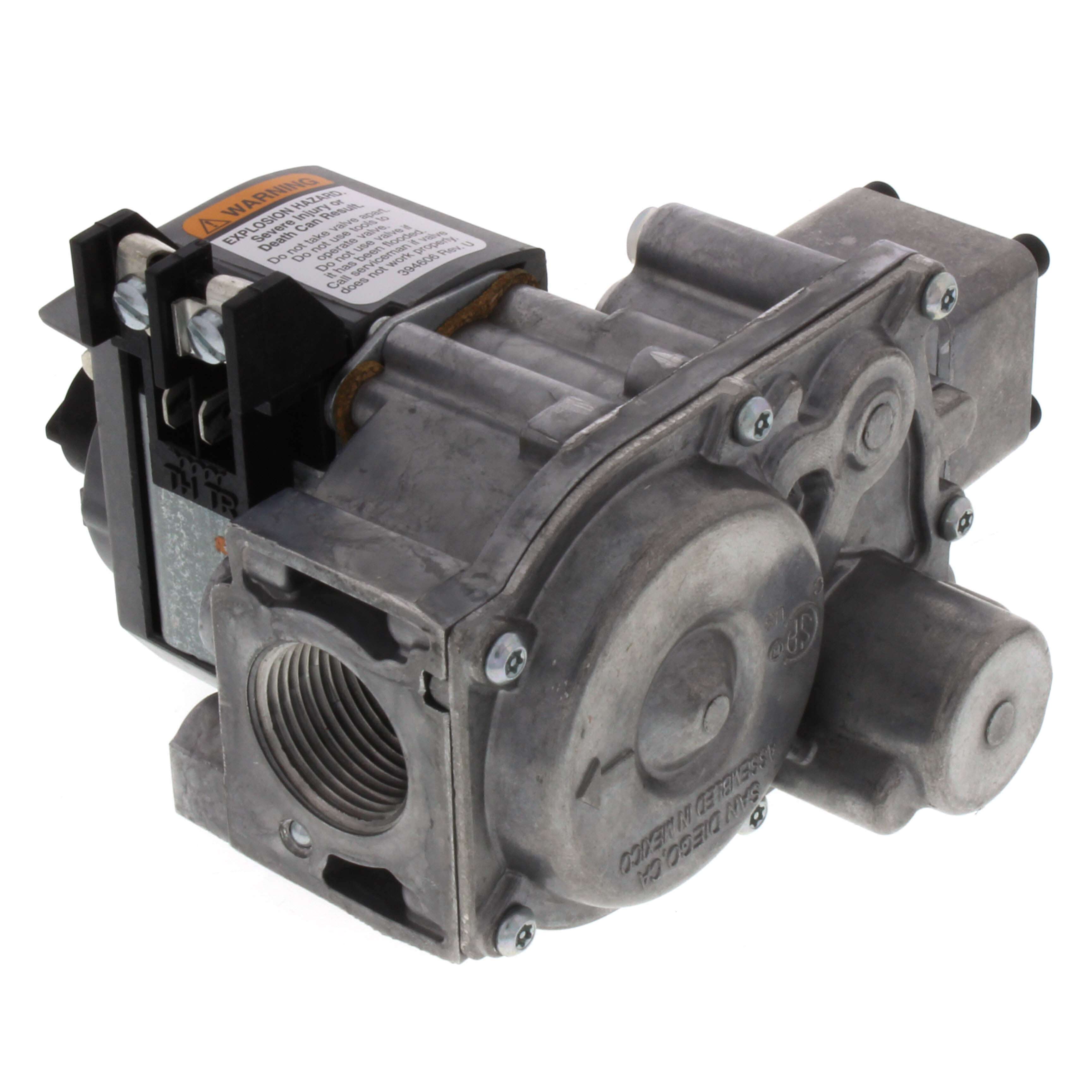

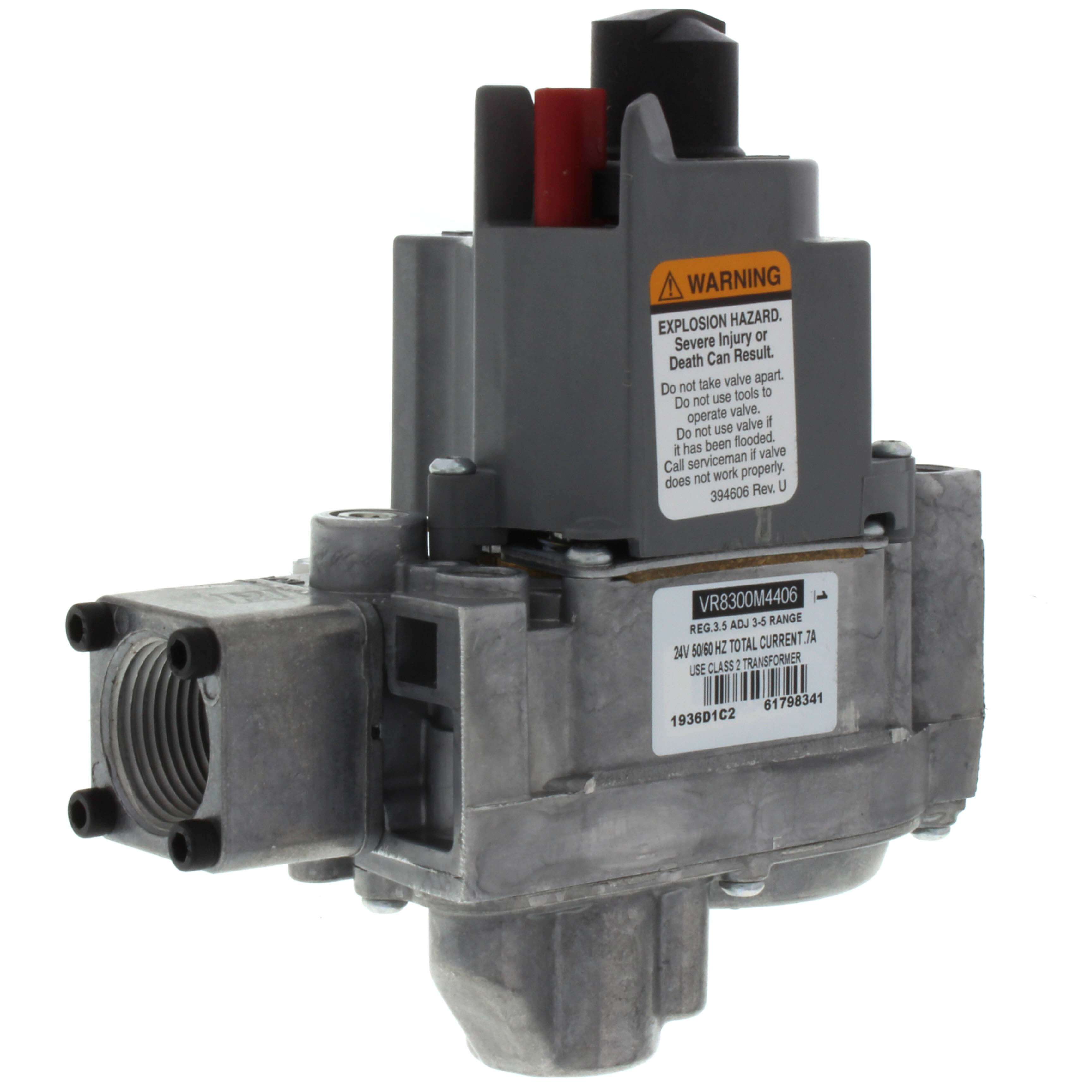

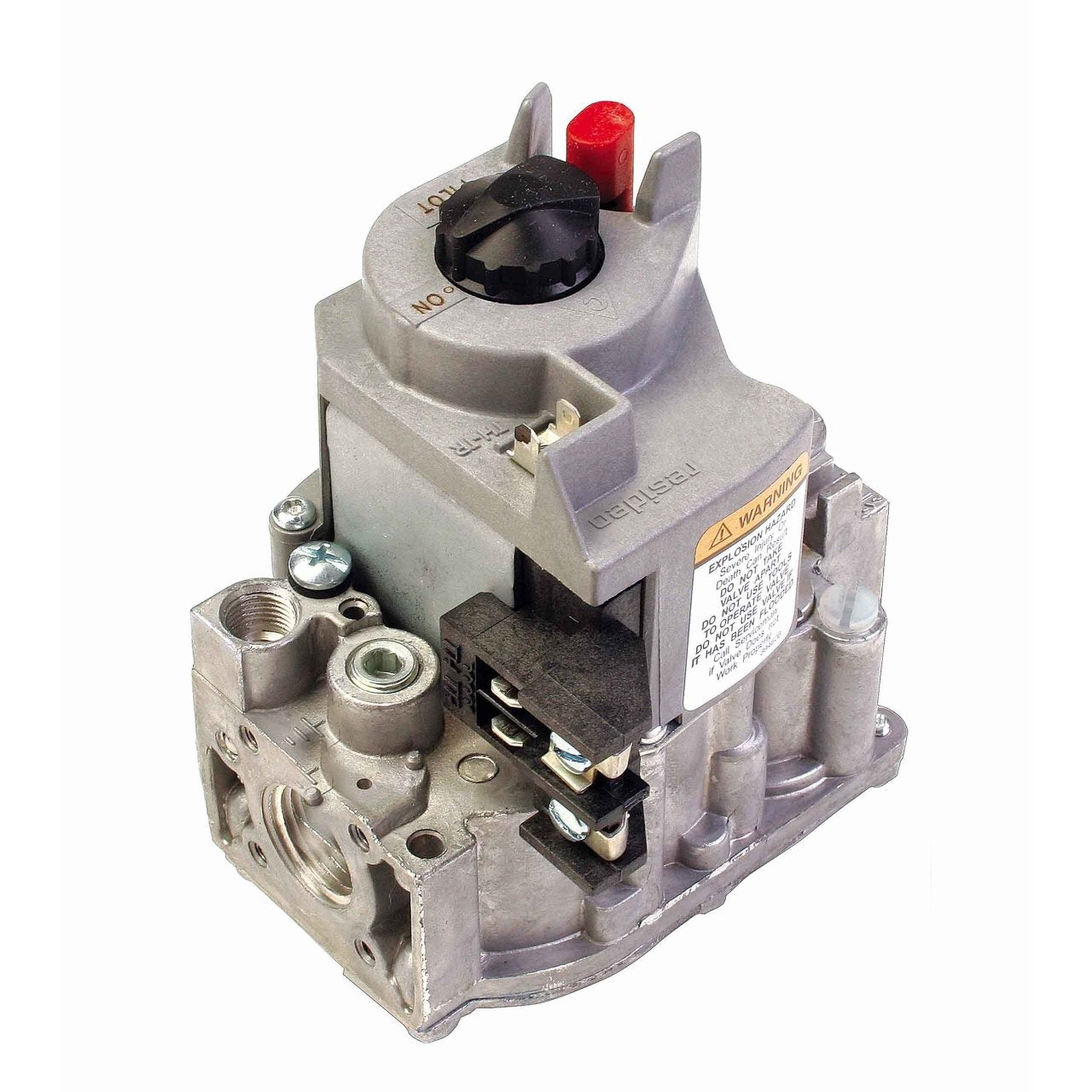

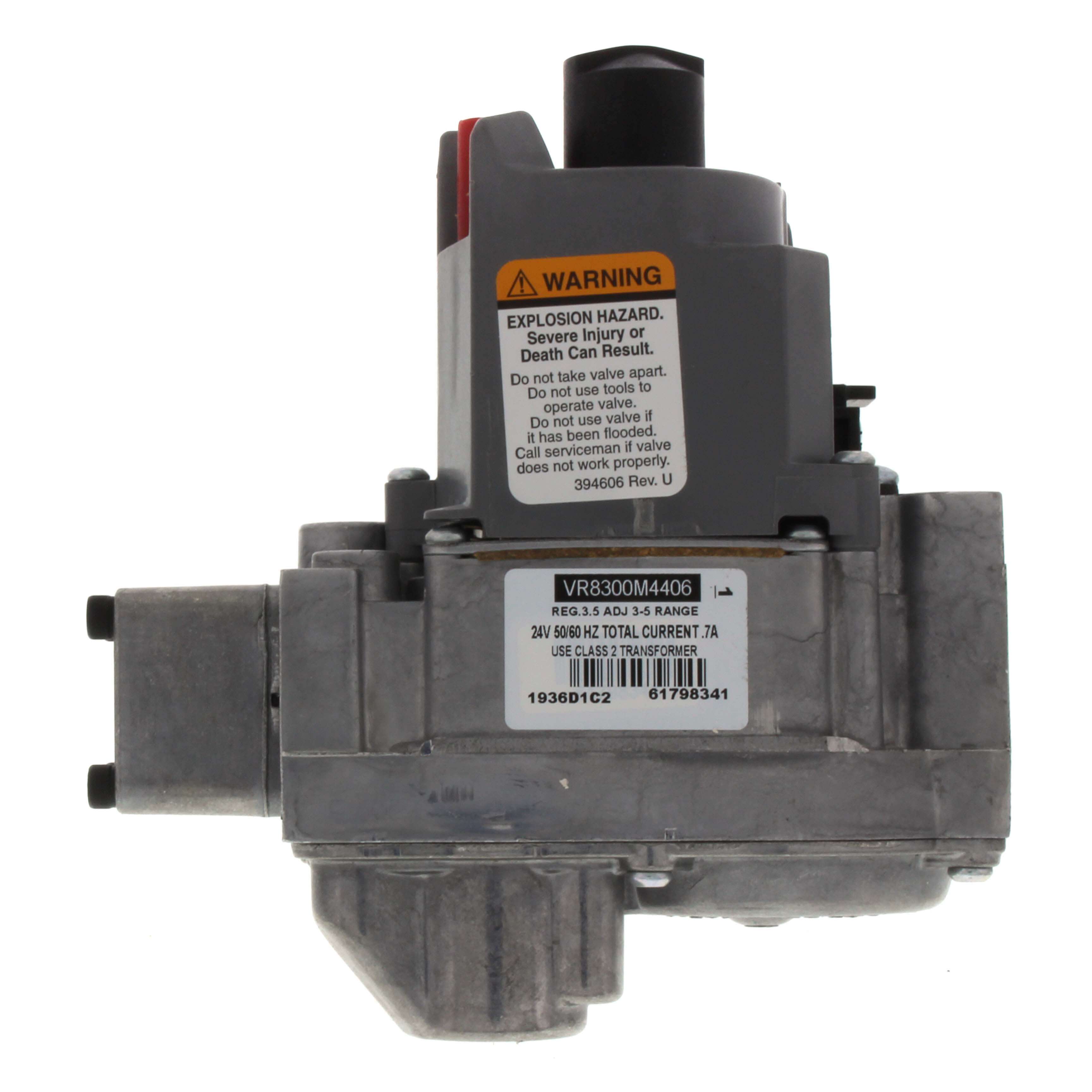

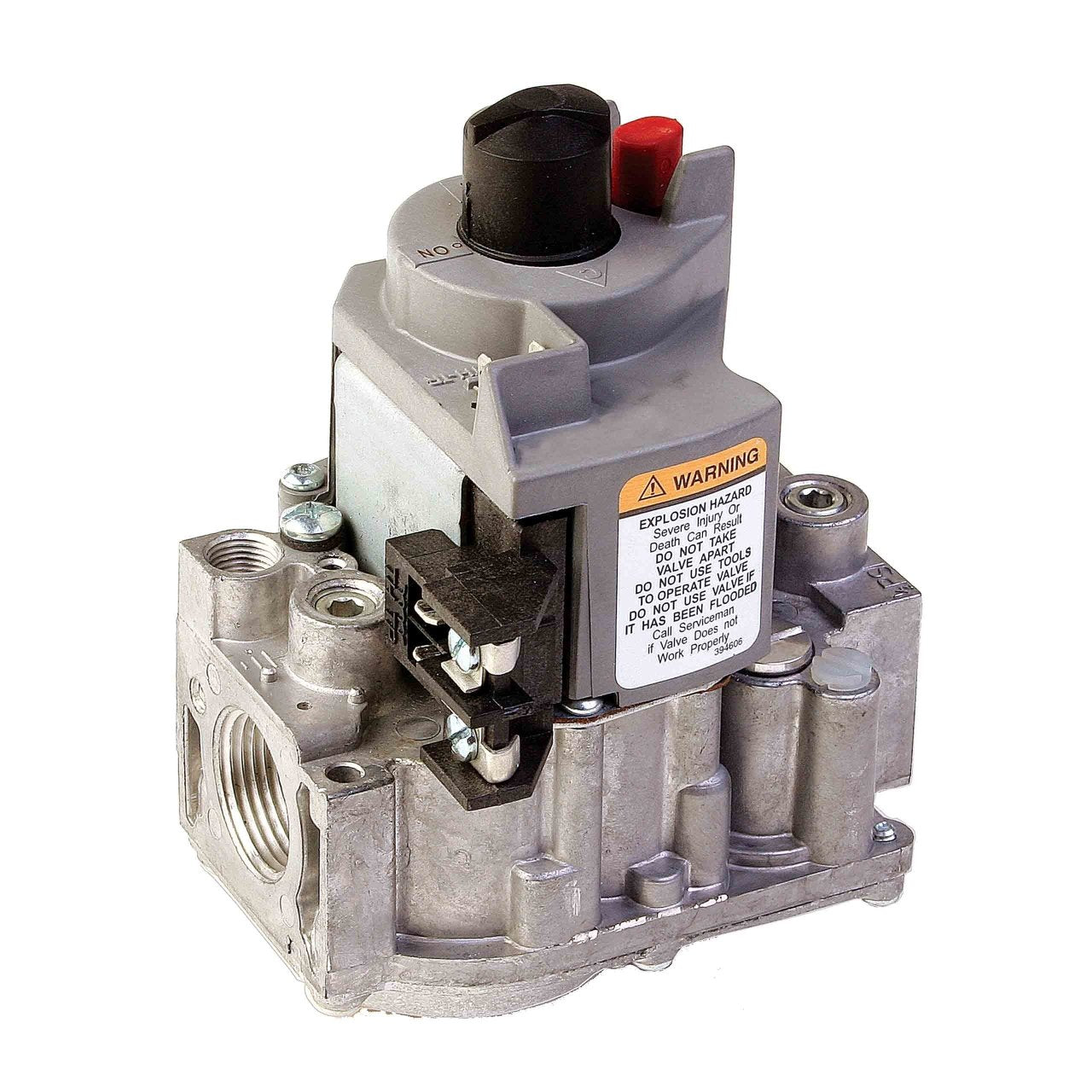

The Resideo VR8300M4406 is a 24V Standing Pilot Gas Valve with LP Kit and Bushing. This valve is designed for use in various gas-fired appliances, including furnaces, boilers, and water heaters. It features durable construction and precise control for efficient gas flow. It ensures reliable operation for consistent performance.
- 24V operation
- Standing pilot design
- Includes LP kit and bushing
Product Highlights
This gas valve is suitable for furnaces, boilers, water heaters, and other gas-fired appliances.
Product Information
Standard Information
-
Brand: RESIDEO
-
Manufacturer Part Number: VR8300M4406
-
Country of Origin: Import
Technical Specifications
-
Item Number: VR8300M4406
-
Brand: Resideo
-
Voltage: 24 V AC
-
Fuel Type: Natural Gas, Propane
-
Inlet Size: 3/4"
-
Outlet Size: 3/4"
-
Ignition Type: Standing Pilot
-
Capacity (BTU): 200000
-
Max Temp (F): 175°F
-
Min Temp (F): -40°F
-
Type: 1-Stage
-
Inlet Connection: 3/4"
-
Oulet Connection: 3/4"
-
Opening Style: Slow Opening
-
Operating Voltage: 24 V AC
-
Regulation Type: Standard Opening
-
Pressure Rating: 0.5 psi
-
Ambient Operating Temperature (Max): 175 °F, 79 °C
-
Ambient Operating Temperature (Min): -40 °F, -40 °C
-
Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
-
Operating Frequency: 50 Hz, 60 Hz
-
Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
-
Product Height: 5.38 in
-
Product Length: 2.69 in
-
Product Width: 4.06 in
-
Domestic / Import: Import
-
Nominal Capacity: 30,000 to 300000 BTU/hr
-
Nominal Size: 3/4 in
-
Coil Voltage: 24 V 50/60 Hz
-
Dimensions: 5-3/8 in H x 4-1/16 in W x 2-11/16 in D
-
Electrical Connections: 1/4 in Male Quick Connect Terminal
-
Gas Type: Natural Gas
-
Manufacturer: Resideo Technologies
-
Manufacturer #: VR8300M4406/U
-
Series: VR8300
-
Temperature Rating: -40 to 175 deg F
-
Capacity (Max): 300,000 BTU/h Natural Gas
-
Capacity (Min): 30,000 BTU/h Natural Gas
-
Valve Body Pattern: Straight Through
