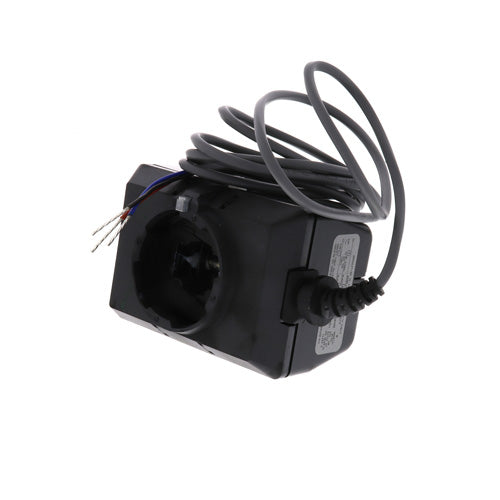

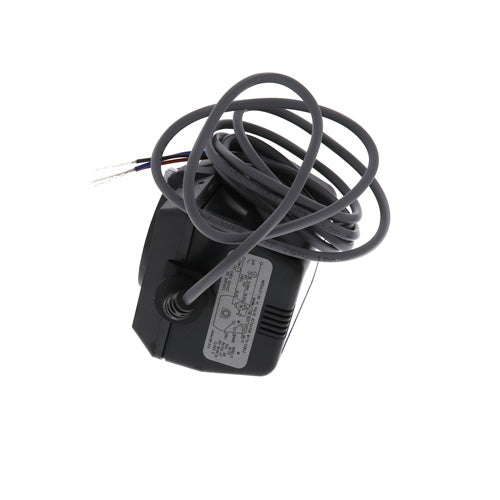

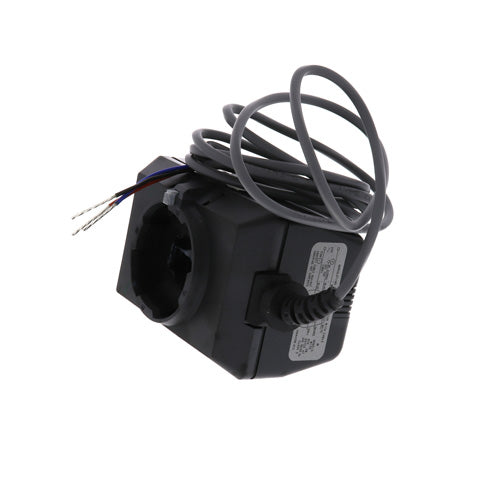

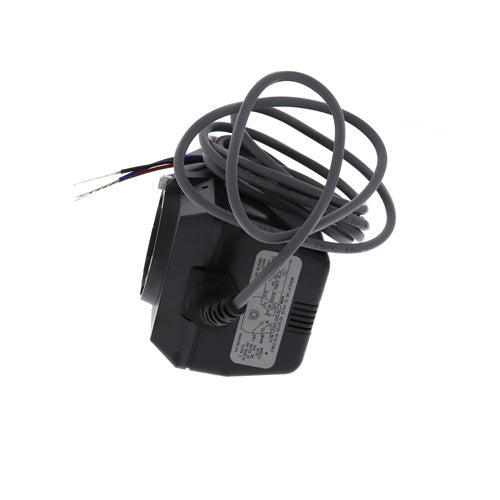

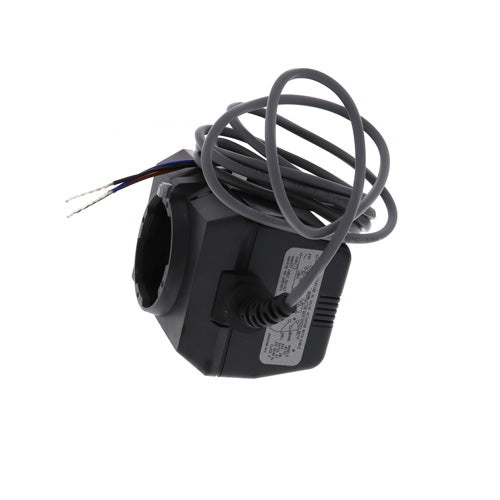

Resideo VC7934ZZ11 24v 3-Wire Modulating Actuator

Product Description

The Resideo VC7934ZZ11 is a versatile 24v 3-wire modulating actuator designed for controlling central heating and cooling systems, including fan coil systems, radiators, and convectors. This actuator can be controlled with various signals, including low voltage switches and modulating controllers, making it adaptable to different setups.

• Control central heating and cooling systems efficiently.
• Compatible with 2 to 10 VDC signals.
• Easy installation without draining the system.

Product Highlights

The VC7934ZZ11 features minimal power consumption and supports quick replacement of moving parts, ensuring reliable operation and maintenance.

Product Information

Standard Information

• Brand: Resideo
• MPN: VC7934ZZ11

Technical Specifications

• Power: 24v
• Weight: 0.92 lbs
• Dimensions: 5.95 inches (L) x 4.55 inches (W) x 3.3 inches (H)
• Voltage Type: Proportional control with a 2 to 10 VDC signal
• Position: Normally Closed
• Temperature Range: 32°F to 150°F
• Timing: 120 seconds
• Fail Safe Mode: Non-Spring Return
