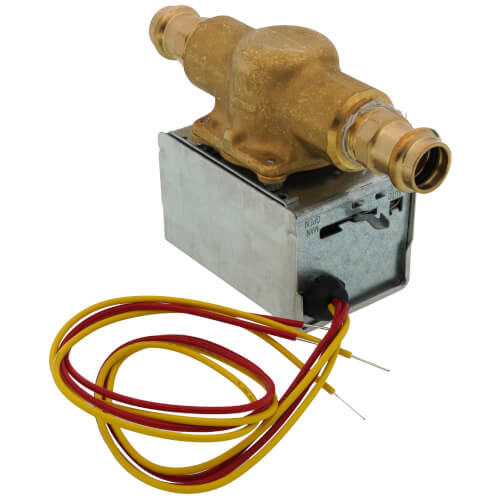

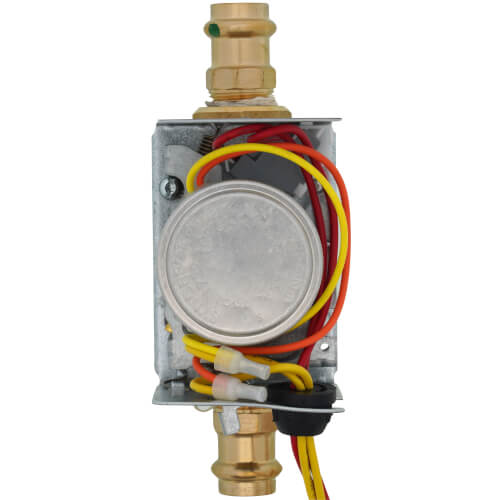

Resideo V8043E1411 1/2PRESS 24V NC EndSwt ZoneVl

Product Description

The Resideo V8043E1411 is a versatile 1/2 inch ProPress Zone Valve designed for HVAC systems. Built to manage the flow of hot and cold water, it is ideal for baseboard radiators and convectors.

• Includes 24V normally closed end switch
• Designed for use with air, water, and compatible fluids
• Compact and lightweight for easy installation

Product Highlights

This zone valve ensures precise control and monitoring of water flow in HVAC systems. It is durable and suitable for various industrial applications, making it a reliable choice for trade professionals.

Product Information

Standard Information

• Brand: Resideo
• Item Number: V8043E1411

Technical Specifications

• Pressure Range: 0-150 psi
• Switch Type: Normally Closed
• End Switch: Yes
• Electrical Rating: 24V AC/DC, 10A
• Media Compatibility: Air, water, and compatible fluids
• Size: 1/2 inch
• Hertz: 60/50 Hz
• Wiring: 18 Leads
• Max Temperature: 200°F
• Min Temperature: 40°F
• Nominal Timing: 15 Seconds
• Connection Type: ProPress
• Static Pressure: 120 psi
• Max Close-Off PSI: 20 psi
• Flow Capacity (Cv): 3
• Temperature Range: 40°F - 200°F
• Max Ambient Temp: 125°F
