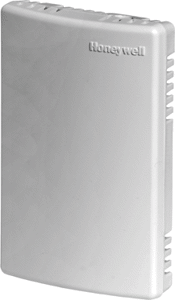

Resideo TR21-A/U Sensor 45F to 99F Averaging Remote 10k ohm Non-Linear

Product Description

The Resideo TR21-A/U is a temperature sensor designed for use with various Honeywell controllers. It operates effectively between 45 degrees Fahrenheit to 99 degrees Fahrenheit. This sensor is compatible with Honeywell Excel 600, 500, 100, and 80 controllers, as well as W7750, W7751A, W7752, W7753, and the W7761 Controller. The TR21-A/U provides precise temperature measurements and is suitable for various applications requiring averaging from multiple sensors.

• Operates between 45°F and 99°F
• 10k ohm non-linear sensor
• Mountable on standard junction boxes

Product Highlights

The TR21-A/U is ideal for direct wired installations and averaging multiple sensor readings. It can be mounted easily and is designed for robust operation in varying temperatures.

Product Information

Standard Information

• Brand: Resideo / Honeywell Home
• Manufacturer: Honeywell International Inc

Technical Specifications

• Temperature Range: 45°F - 99°F
• Sensor Type: 10k ohm non-linear
• Operating Temperature: -40°F to 150°F
• Humidity Range: 5% - 95% non-condensing
• Mounting: Standard 2 x 4 inch junction box
• Size: 3 inches L, 4-13/16 inches H, 7/8 inches W
• On-board Features: Optional humidity sensor
