Product Description
The RESIDEO DB7110U1000 defrost control board replaces over 260 OEM and competitive models. It features an easy setup with a dual LED display for simplified configuration. Designed for single-stage heat pumps, it reduces inventory needs. A quiet mode is included for defrost cycles after hours, and a demand defrost algorithm only defrosts when necessary, saving energy.
- Replaces more than 260 OEM and competitive models
- Easy setup, dual LED display simplifies configuration
- One defrost control for nearly every single-stage heat pump reduces the need for inventory
Product Highlights
Universal defrost control board for single-stage heat pumps with easy setup and quiet mode.
Product Information
Standard Information
-
Brand: RESIDEO
-
Manufacturer Part Number: DB7110U1000
-
Country of Origin: US
Technical Specifications
-
Manufacturer: Resideo
-
Application: Heat Pump
-
Product Type: Control
-
Ambient Operating Temperature (Min): -40 °F
-
Ambient Operating Temperature (Max): 150 °F
-

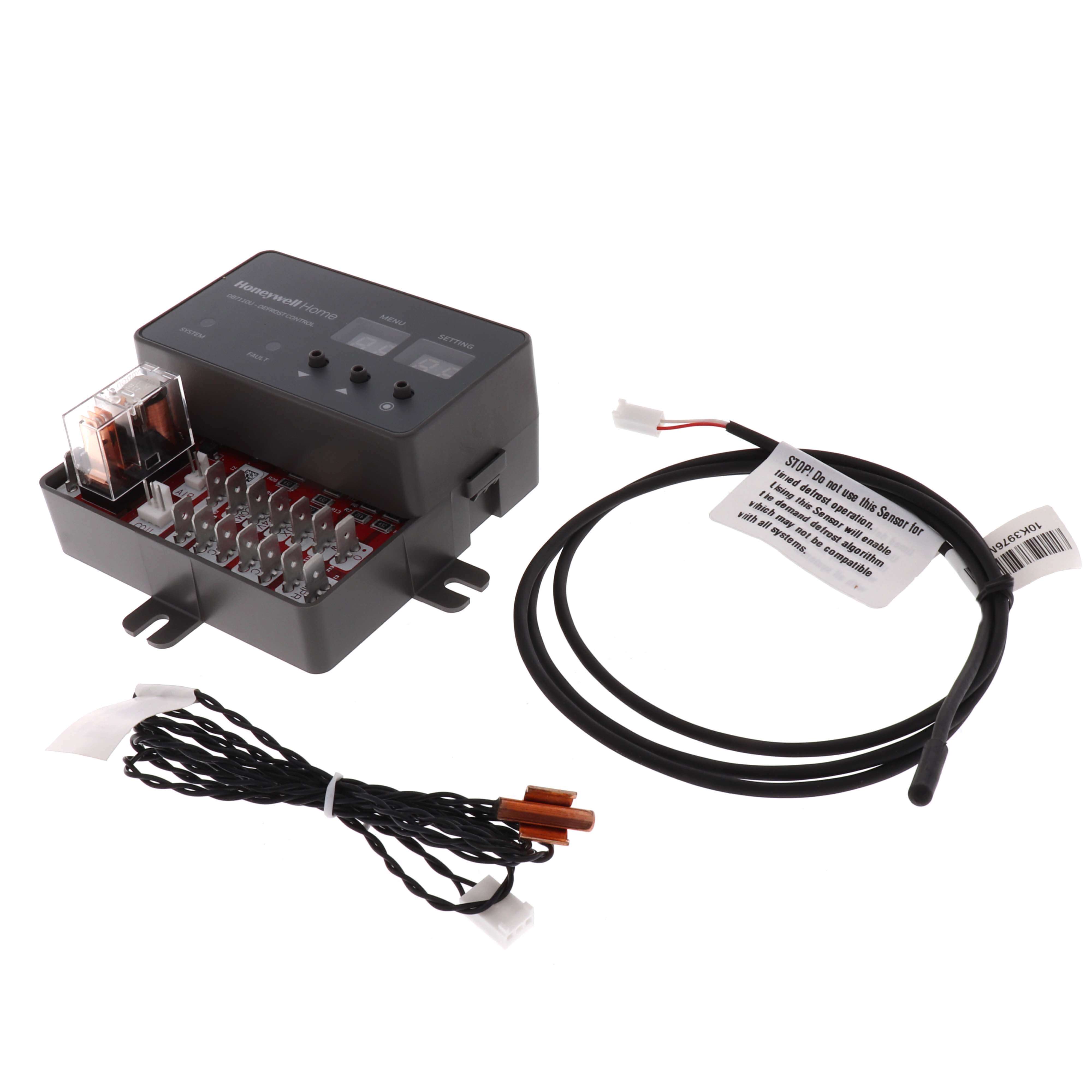

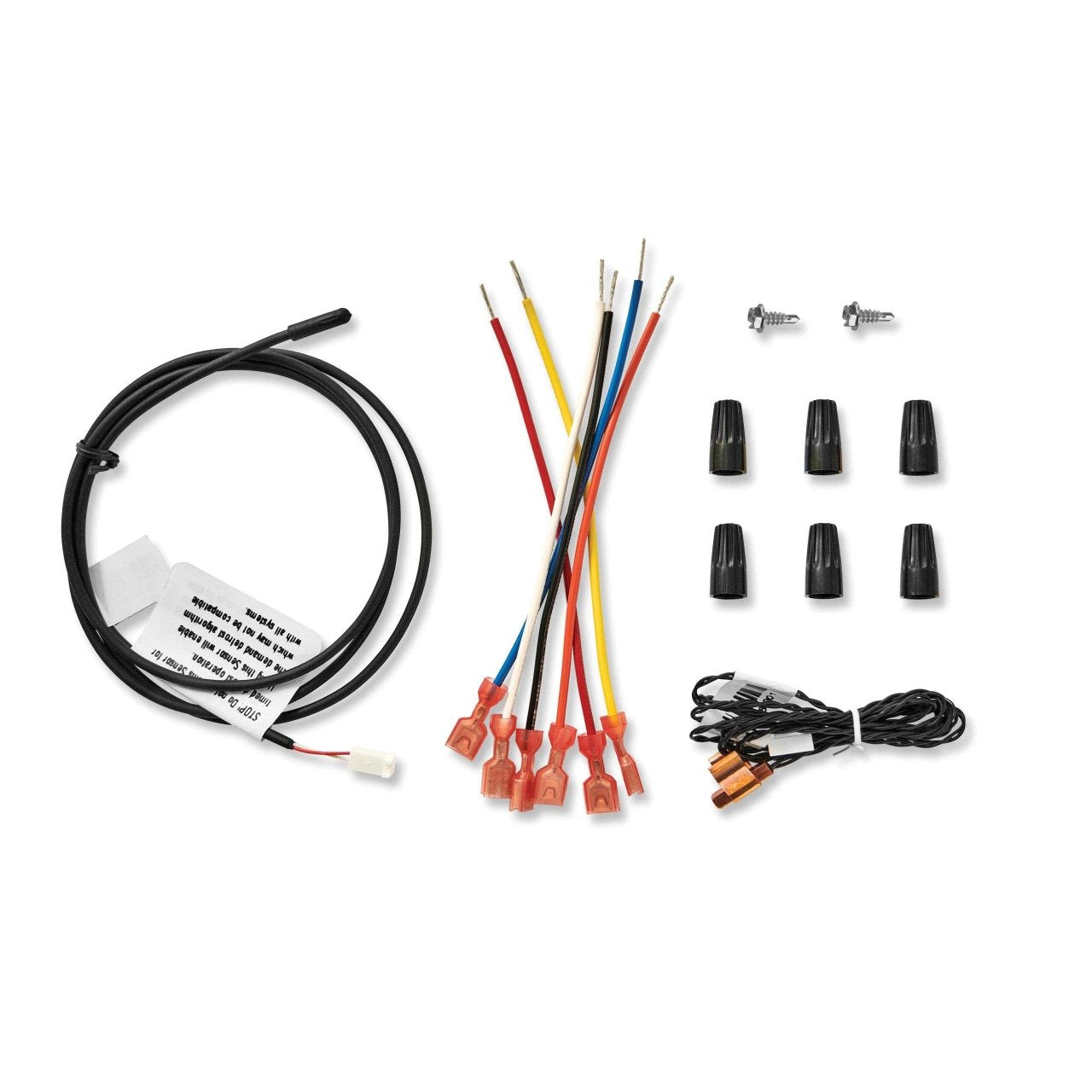

Includes: Air temperature sensor with 2 pin connector; Coil temperature sensor with 3 pin connector; Wire leads; Wire nuts; Mounting screws
-
Comments: All terminals except FAN-IN and FAN-OUT are NEC Class 2 low voltage; FAN-IN and FAN-OUT are line voltage.
-

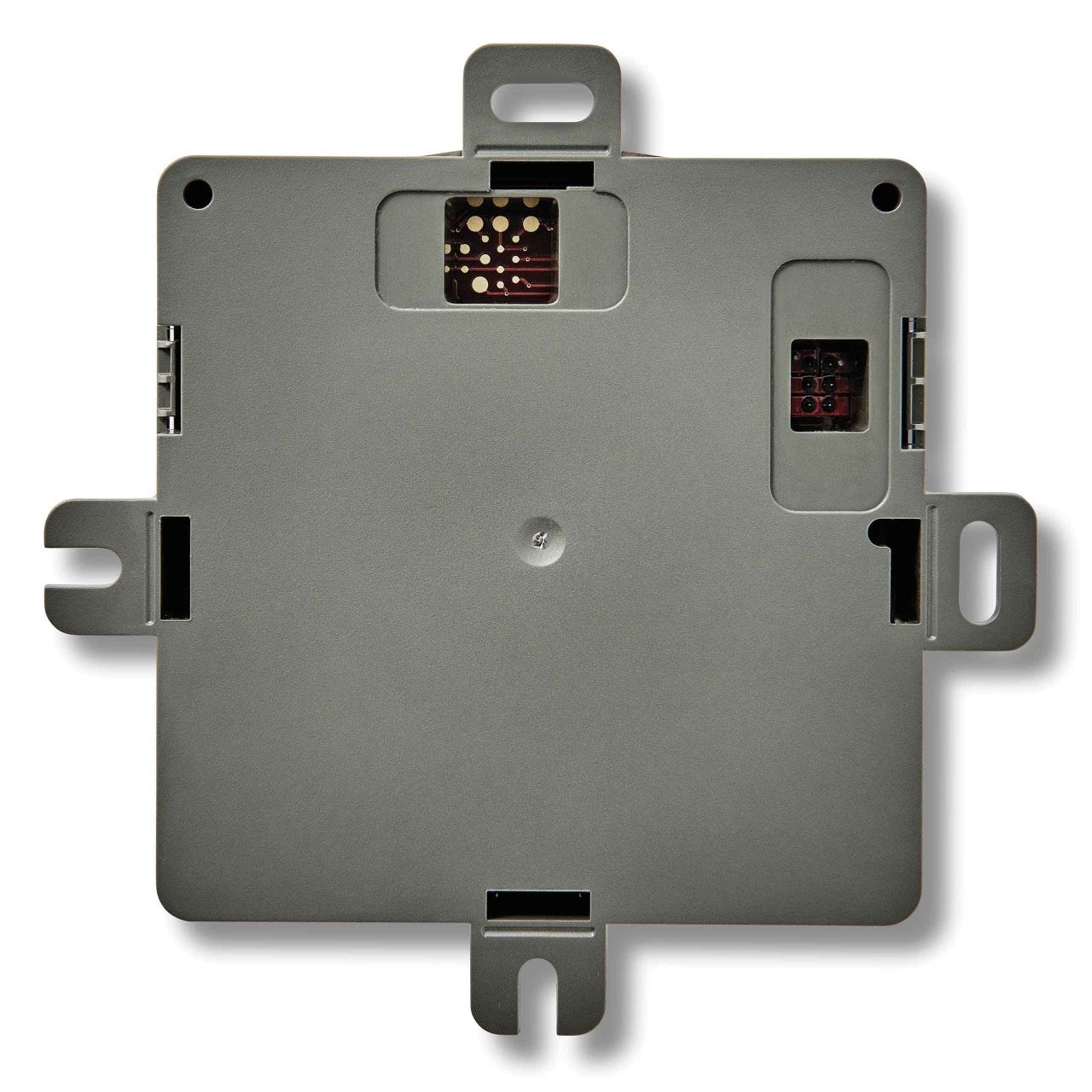

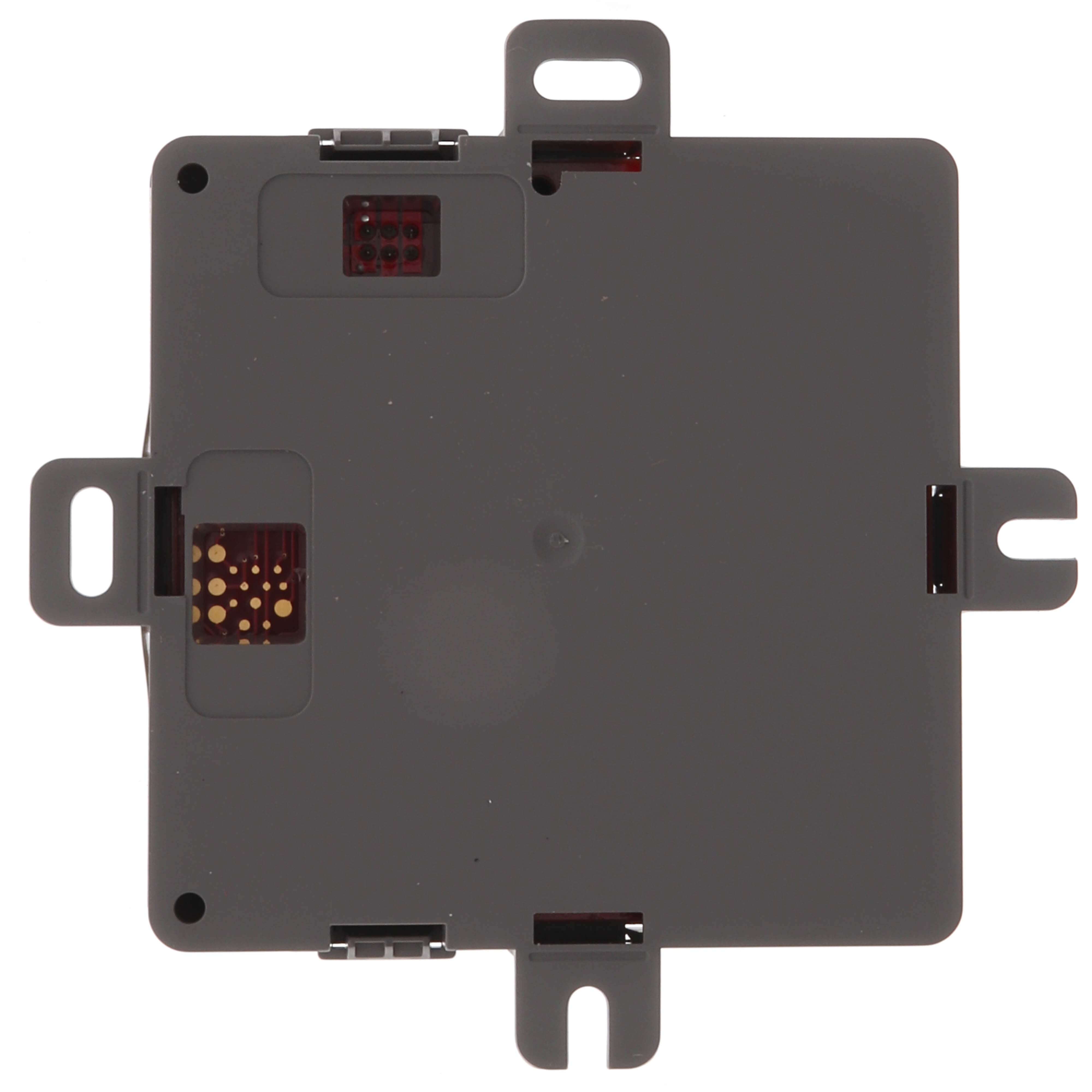

Mounting: Any Orientation, but recommended to mount so display is easily readable
-
Electrical Ratings: Maximum Input Current: 200 mA; Compressor Contactor: 1A @ 24 Vac; Aux Heat: 1A @ 24 Vac; Reversing Valve: 1A @ 24 Vac; Outdoor Fan: 1/2 HP motor, 5A full load, 30A locked rotor, 240 Vac.
-
Frequency: 60 Hz
-
Stages: Single Stage On/Off
-
Electrical Connections: 1/4 in. quick connect
-
Operating Humidity Range (% RH): Less than 95% RH, non-condensing
-
Supply Voltage: 24 Vac
-
Operating Temperature Range (F): -40 F to 150 F
-
LEDs: System LED, Fauult LED
-
Ambient Temperature Range (F): Coil Enable: 30 F to 36 F; Termination Temperature: 50 F to 100 F; Auxiliary Lockout Temp: 0 F to 40 F; Compressor Lockout Temp: -10 F to 40 F
-

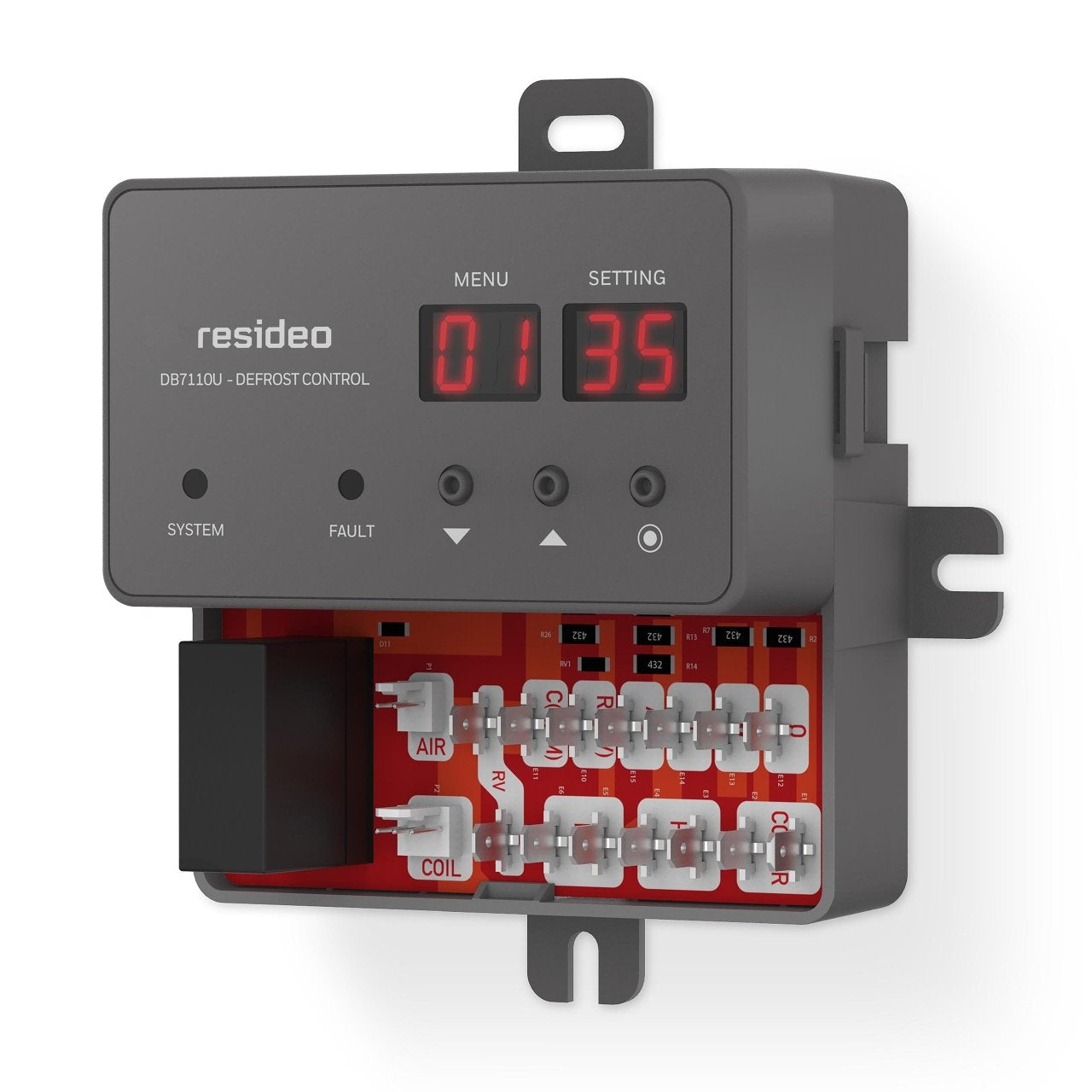

Display: 4 character 7 segment display for Menu and Settings
-
Operation: All outputs rated for 100,000 operations
-
Compatible Brand: For Carrier, For Goodman, For ICP, For LENNOX, For Rheem, For Trane
-
Brand: Honeywell
-
Type: Defrost Control Board
-
Custom Bundle: No
-
Model: DB7110U1000/U
-
Compatible Model: PCBDM101, PCBDM101S, PCBDM133, PCBDM133S, PCBDM160, PCBDM160S
-
MPN: DB7110U1000/U
-
Compatible Product: Heat Pump Split System
-
Amperage Rating: 200 mA
-
Display Type: LED
-
Temperature Rating: 40 to 150 deg F
-
Voltage Rating: 24 V
