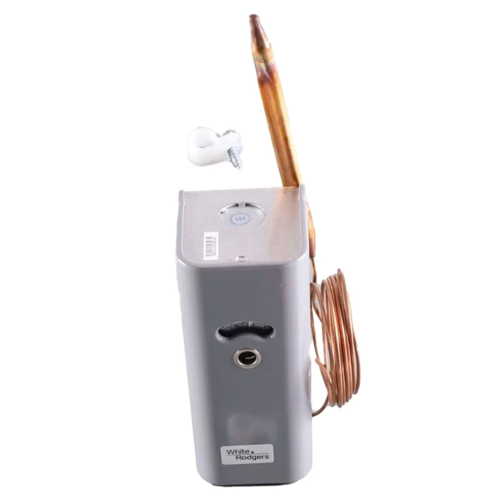

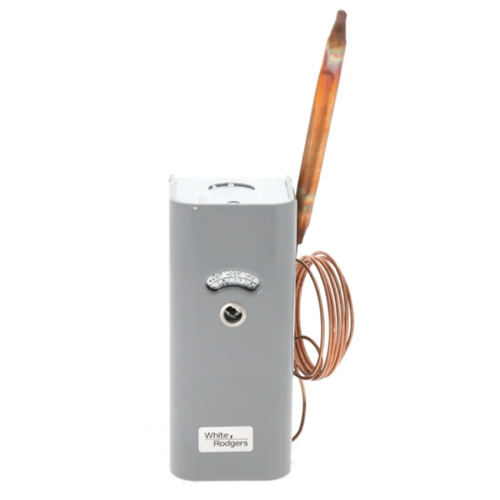

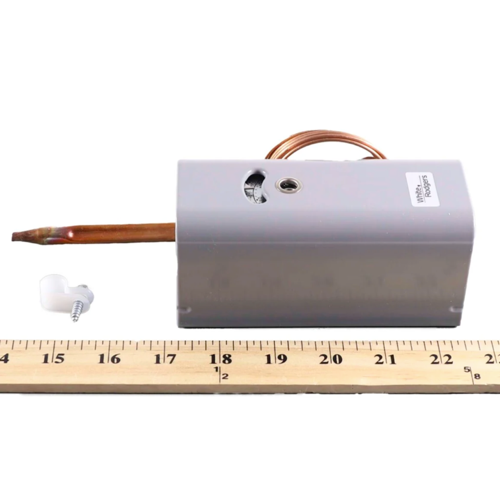

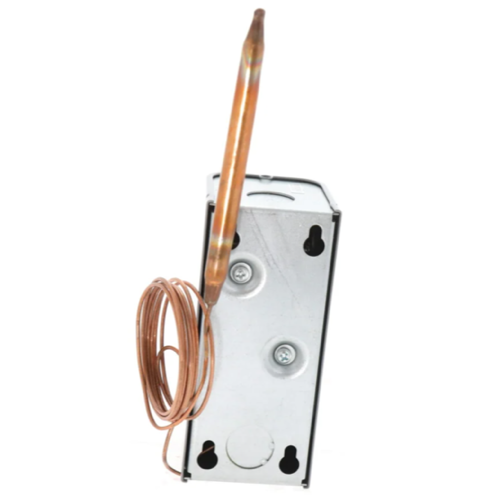

Copeland Comfort Control (White-Rodgers) 1609-101 Refrigeration Temperature Control -30 to 90 deg F 5 ft Cap

Product Description

The White-Rodgers 1609-101 Refrigeration Temperature Control offers precise control for refrigeration systems. Manufactured by White-Rodgers, this control device features a temperature range of -30 to 90 degrees Fahrenheit and includes a 5-foot capillary for remote temperature sensing.

• Temperature range: -30 to 90 degrees Fahrenheit

• SPST switch action, close on rise

• Durable steel case and capillary

Product Highlights

Ensures consistent temperature control across various refrigeration applications.

Product Information

Standard Information

• Brand: White-Rodgers

• MPN: 1609-101

Technical Specifications

• Temperature Range: -30 to 90 degrees Fahrenheit

• Capillary Length: 5 feet

• Contact Rating: 16 Amp at 120 Volt AC, 8 Amp at 240 Volt AC Full Load

• Contact Configuration: SPST, close on rise

• Material: Steel

• Finish: Gray

• Overall Dimensions: 5-3/8 inches height x 2-5/16 inches width x 2-9/16 inches depth

• Bulb Size: 5-1/4 inches x 3/8 inches

• Approval: UL, CSA
