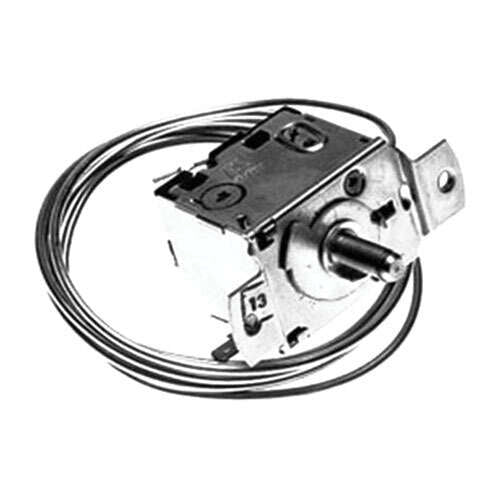

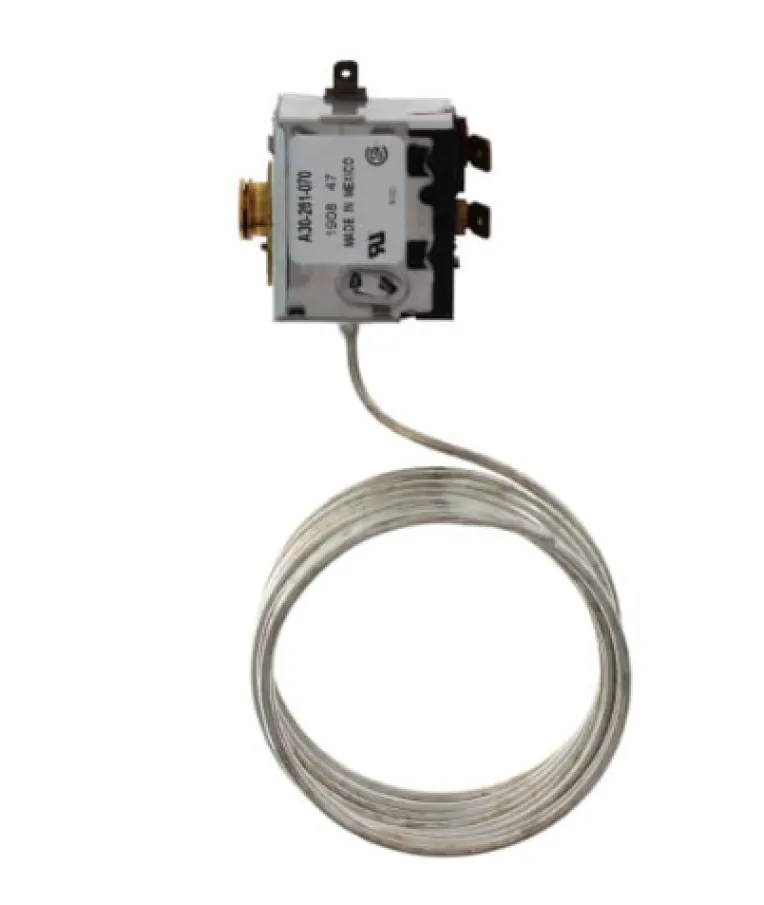

Robertshaw A30-261 Refrigeration Control Constant Differential Control 84 inches Capillary

Product Description

The ROBERTSHAW A30-261 refrigeration control is a constant differential control designed to switch electrical components of refrigeration systems in response to sensed temperatures. It features a vapor-filled capillary and SPST switch action. This control is adaptable to commercial refrigerators and freezers.

• Laser-welded stainless steel bellows
• Fixed or adjustable temperature settings
• High-amperage contacts
• Standard 1/4" quick connect terminals with optional screw terminals

Product Highlights

Constant differential temperature control with 84" capillary, SPST switch, and quick-connect terminals for refrigeration and freezer applications.

Product Information

Standard Information

• Brand: ROBERTSHAW
• Manufacturer Part Number: A30-261
• Country of Origin: MX

Technical Specifications

• Item Model Number: A30-261
• Part Number: A30-261
• Series: A30
• Switch Action: SPST
• Capillary Type: Vapor Filled
• Voltage Rating: 120/240/277 VAC
• Amperage Rating: 16 FLA
• Capillary Length: 84 in
• Manufacturer Name: Robertshaw
• Cold Off Temperature: 32 deg F
• Contact Configuration: SPST
• Connection Type: 1/4 Inch Quick-Connect
• Application: Refrigerator, Freezer
• Approval: UL (Canada and US)
• Differential: 6 deg F
• Full Load Current: 20/16 A
• Pilot Duty Rating: 240 VAC
• Electrical Connection: 1/4 Inch Quick Connect
• Locked Rotor Amperage: 80 A
• Switch type: spst
• Includes: break-off shaft, dial knob and mounting bracket for fast, easy installation
