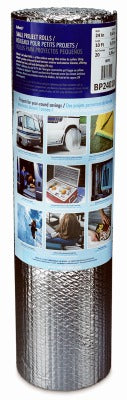

Reflectix Inc BP24010 Reflective Foil Insulation Roll

Product Description

The REFLECTIX INC BP24010 is a double bubble reflective foil insulation roll designed to reduce radiant heat transfer in residential and commercial construction applications. The roll measures 24 inches wide by 10 feet long and is 5/16 inches thick. It is constructed with two outer layers of aluminum foil, each bonded to a tough layer of polyethylene for added strength and puncture resistance. The BP24010 reflects up to 97% of radiant heat and carries an R-value of up to 14.3 depending on the installation configuration. It also functions as an effective vapor barrier for below-grade applications.

This insulation roll is suited for a wide range of residential and light commercial applications. Typical uses include radiant floor systems, crawl space insulation, duct insulation, metal building walls and roofs, basement walls, and attic applications. The square edge roll format allows for straightforward fitting between framing members or over duct surfaces. Trade professionals including HVAC technicians, plumbers, insulators, and general contractors install this product across new construction and retrofit projects alike.

Key Features

• Reflects up to 97% of radiant heat, reducing thermal load in conditioned spaces
• R-value up to 14.3 depending on application and air gap configuration
• 5/16 inch thick double bubble core with two aluminum foil outer layers
• Each foil layer bonded to polyethylene for strength and durability
• Functions as an effective vapor barrier for below-grade and crawl space use
• Evaluated by ICBO, CCMC, BOCA, SBCCI, and Dade County
• Compatible with tape or staple fastening methods for easy field installation

Compatibility

Designed for use in radiant floors, crawl spaces, duct insulation, metal buildings, basement walls, and attics as a reflective insulation and vapor barrier solution.

Installation Notes

Installation is typically performed by insulation contractors, HVAC technicians, or general construction trades depending on the application. The roll can be fastened using foil tape or staples; foil tape is recommended at seams and edges to maintain vapor barrier continuity. For radiant and thermal performance, an air gap on at least one side of the insulation is generally required to achieve rated R-values. Follow local building codes and manufacturer installation guidelines for specific assembly configurations.

Technical Specifications

• Width: 24 inches
• Length: 10 feet
• Thickness: 5/16 inches
• Construction: Double bubble, aluminum foil both sides
• Foil Layers: Two outer aluminum foil layers bonded to polyethylene
• Radiant Heat Reflectivity: Up to 97%
• R-Value: Up to 14.3 (application dependent)
• Fastening Method: Tape or staples
• Weight: 28 pounds
• Certifications: ICBO, CCMC, BOCA, SBCCI, Dade County evaluated

Standard Information

• Brand: REFLECTIX INC
• Manufacturer Part Number: BP24010
