Product Description

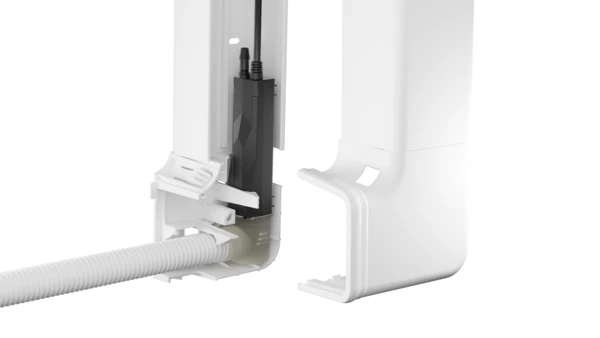

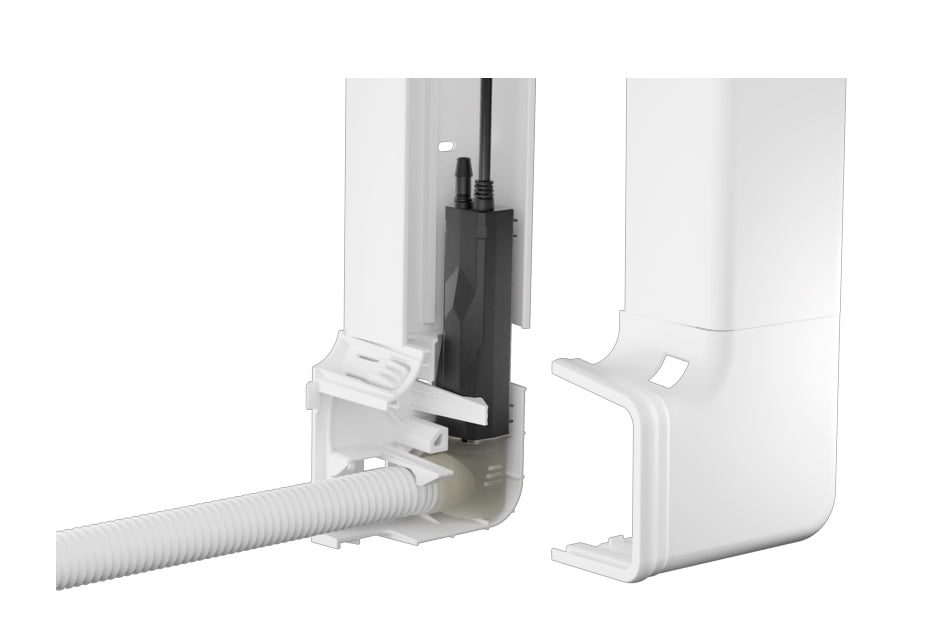

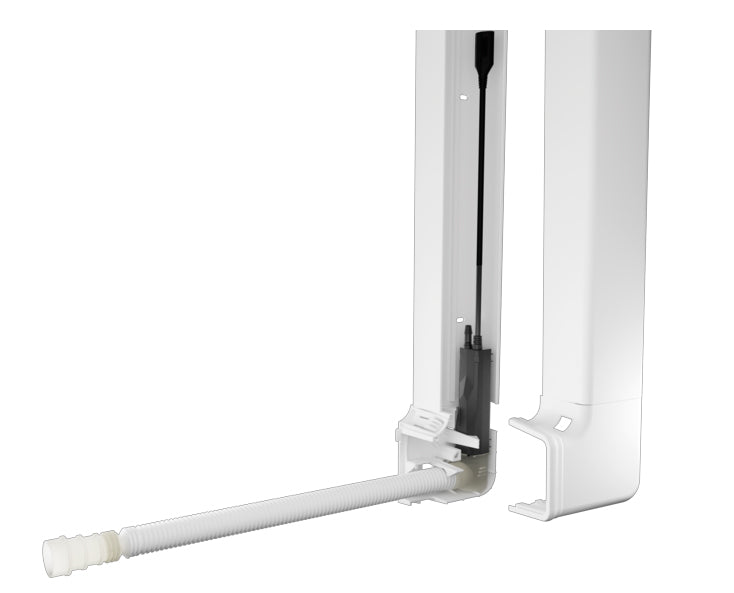

The REFCO VAMP-CDK is a condensate pump with a complete duct system for corner installation. Designed for space-saving installation, it features a refined design for stable, concealed placement near the air conditioning unit. The diaphragm pump delivers up to 6 GPH and achieves a 50 ft discharge head, suitable for units up to 63,000 BTU/h cooling capacity.
- Includes a compact duct set with duct corner, duct, and collar for corner installation.
- Operates quietly below 18 dB(A) with diaphragm technology and vibration damping.
- Features an optical sensor for accurate level measurement and low-maintenance operation.
Product Highlights
This condensate pump offers a compact, quiet, and powerful solution for air conditioning units, featuring easy installation and reliable operation.
Product Information
Standard Information
-
Brand: REFCO
-
Manufacturer Part Number: VAMP-CDK
-
Country of Origin: Switzerland
Technical Specifications
-
Max. Flow Rate: 6 GPH
-
Max. Discharge Head: 50 ft
-
Max. Horizontal Run: 246 ft at 0 ft head and 0 ft suction
-
Noise Level: 18 dB(A)
-
Type: Diaphragm type
-
Tube Diameter: 1/4 "
-
Voltage: 100 - 240 VAC
-
Frequency: 50Hz/60Hz
-
Energy Consumption: 6 watts
-
Power Consumption Idle: 6 W
-
Protection Class: II
-
Alarm Relay: Normally-closed, failsafe 250 VAC, 5 A or 30 VDC, 5 A
-
Ingression Protection: IP44
-
Operating Temperature Range: 37 °F – 104 °F
-
Water Temperature Range: 37 °F – 104 °F
-
Storage Temperature Range: -4 °F – 158 °F
-
Scope of Supply: Pump, Corner hose with filter, Corner Seal, Kit Bag including Vibrastripe and Foam, Anti-siphon valve, Installation cable, Corner (front & back), Duct (front & back), Collar, Quick guide
-
Material: Polyamide | FR-4
-
Standards: IEC 60335-1, IEC 60335-2-41, RoHS Conformity
-
Product Type: Pump
-
Maximum Flow Rate: 6 gallons per hour
-
Maximum Discharge Head: 50 ft.
-
Maximum Horizontal Run: 246 ft (@0 ft head and 0 ft suction)
-
Sound Level: 20 dBA
-
Hose Diameter: 1/4"
