Refco VAMP-C Replacement Corner Condensate Pump

Product Description

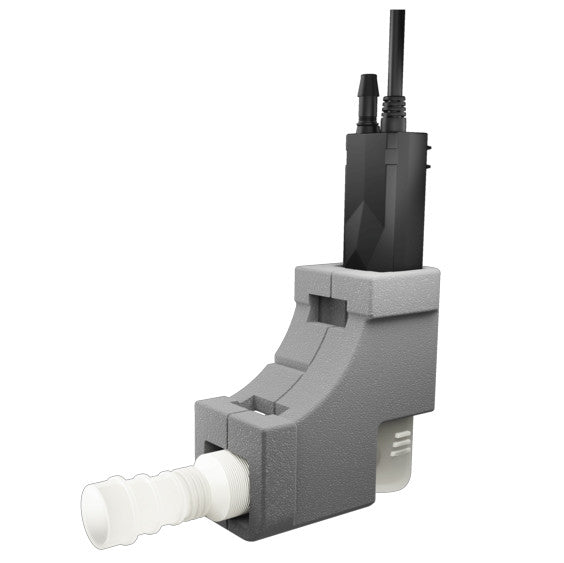

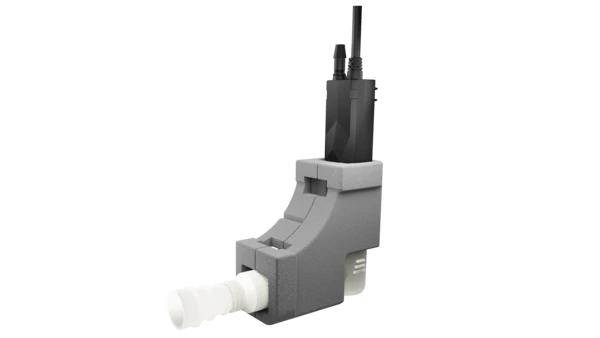

The REFCO VAMP-C is a replacement corner condensate pump with an integrated reservoir and optical level sensor designed for installation in duct corners. Its interface shell fits directly into existing setups and can be trimmed for seamless integration. The high-performance diaphragm pump delivers up to 6 GPH and a pumping height of 50 feet. It is suitable for units up to 63,000 BTU/h.

• Flexible interface shell made from non-flammable, vibration-damping material.
• Adapter plug allows for electrical connection without rewiring.
• Whisper-quiet operation with a sound level below 18 dB(A).

Product Highlights

The VAMP-C offers a compact, quiet, and powerful solution for replacing corner condensate pumps with easy installation and reliable operation.

Product Information

Standard Information

• Brand: REFCO
• Manufacturer Part Number: VAMP-C
• Country of Origin: Switzerland

Technical Specifications

• Max. Flow Rate: 6 GPH
• Max. Discharge Head: 50 ft
• Max. Horizontal Run: 246 ft at 0 ft head and 0 ft suction
• Noise Level: 18 dB(A)
• Type: Diaphragm type
• Tube Diameter: 1/4 "
• Voltage: 100 - 240 VAC
• Frequency: 50Hz/60Hz
• Energy Consumption: 6 watts
• Power Consumption Idle: 6 W
• Protection Class: II
• Alarm Relay: Normally-closed, failsafe 250 VAC, 5 A or 30 VDC, 5 A
• Ingression Protection: IP44
• Operating Temperature Range: 37 °F – 104 °F
• Water Temperature Range: 37 °F – 104 °F
• Storage Temperature Range: -4 °F – 158 °F

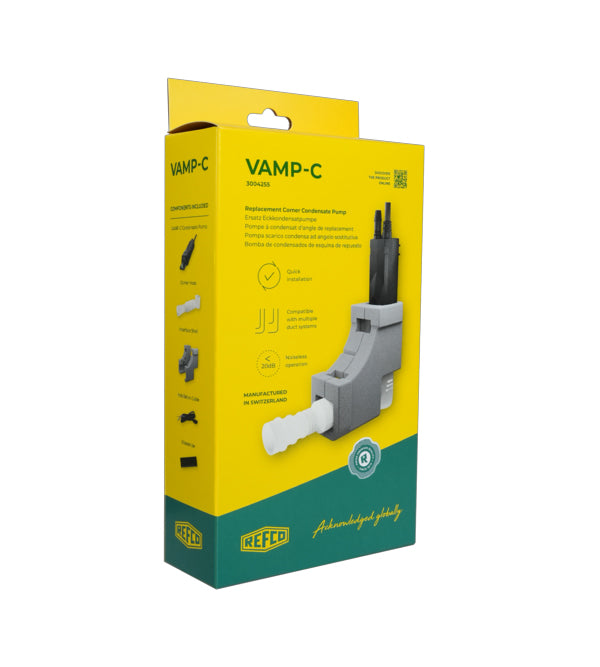

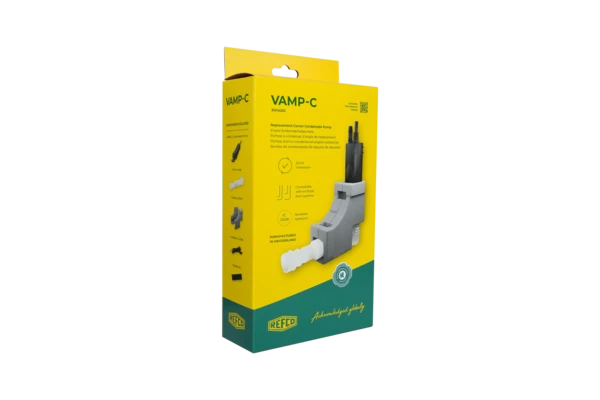

• Scope of Supply: Pump Corner hose with filter Vibrastripe Interface shell (front & back) Installation cable Quick guide
• Material: Polyamide | FR-4
• Standards: IEC 60335-1, IEC 60335-2-41
• RoHS Conformity: Yes
• Product Type: Pump
• Hose Diameter: 1/4"
