Refco GOBI II Condensate Pump 11 GPH

Product Description

The REFCO GOBI II condensate pump is designed for systems from 6,000 BTU/h (1.75kW) up to 120,000 BTU/h (35kW). It features a digital water sensor, universal voltage compatibility, and user-configurable flow settings. This pump removes up to 11 gallons of water per hour and is suitable for both residential and commercial HVAC systems.

• Universal voltage compatibility
• Digital water sensor

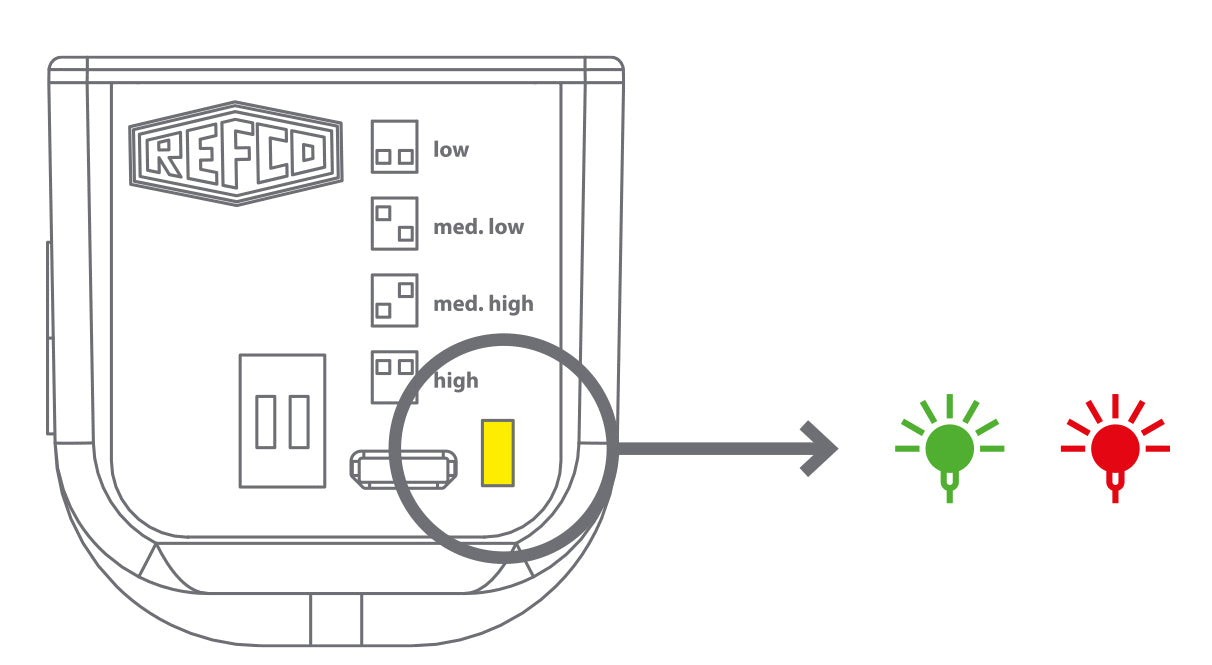

• User-configurable flow settings

Product Highlights

Efficient condensate removal solution with a compact size for unobtrusive installation. Includes a USB port for accessing pump history and offers optional wireless access for remote monitoring.

Product Information

Standard Information

• Brand: REFCO
• Manufacturer Part Number: GOBI II

Technical Specifications

• Max. Flow Rate: 11 GPH
• Max. Discharge Head: 65.6 ft
• Max. Suction Lift: 10 ft
• Noise Level: 19 dB(A)
• Type: Diaphragm type
• Tube Diameter: 1/4 ″
• Voltage: 100 - 240 VAC
• Frequency: 50 / 60 Hz
• Energy Consumption: 8 W
• Protection Class: I
• Alarm Relay: 10 amps NO/NC contacts with integrated replaceable HRC 10A fuse
• Ingression Protection: IP44
• Cable Length: 5 ft
• Operating Temperature Range: 41 - 104 °F
• Water Temperature Range: 41 - 104 °F
• Storage Temperature Range: -4 - 122 °F
• Standards: EN 60335-1, EN 60335-2-41, UL778 CSA C22.2 #68
• RoHS Conformity: Yes
• Product Type: Pump
• Maximum Head (Vertical Pumping): 65.6 ft (20 meters)
• Sound Level: 20 dBA at 3 ft for ultra-quiet operation
• Discharge Hose: 1/4" x 3.3' hose included
• Material: Plastic
• Style: Condensate Pump
• Power Source: Corded Electric
• Maximum Flow Rate: 0.18 Gallons Per Minute
• Maximum Lifting Height: 65.6 Feet
• Hertz: 50, 60
• Shutoff Heade (ft): 65
• Maximum suction: 10 ft. (3 m) self priming
