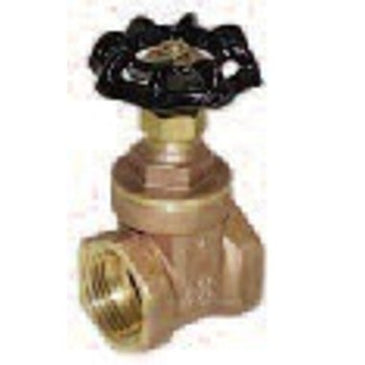

RED-WHITE VALVE CORP 2673 BRASS GATE VALVE IPS

Product Description

The RED-WHITE VALVE CORP 2673 Brass Gate Valve IPS is designed for demanding environments and applications. This standard series valve features a nominal size of three inches with a threaded end style, ensuring secure connections. It is rated for 200 lb WOG pressure and operates effectively at temperatures up to two hundred twelve degrees Fahrenheit. The handwheel actuator allows for straightforward operation and control.

• Non-rising stem design for space efficiency
• Inserted bonnet for secure sealing
• Solid wedge disc for reliable performance

Product Highlights

This gate valve is built with a cast brass body and brass trim, featuring a PTFE gasket and packing softgoods for durability.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Type: Standard

Technical Specifications

• Nominal Size: 3 in
• Pressure Rating: 200 lb WOG
• Temperature Rating: 212 deg F
• Inlet to Outlet Length: 3.77 in
• Top to Inlet Center: 7.91 in
• Hand Wheel Diameter: 2.71 in
• Body Material: Cast Brass
• Trim Material: Brass
• Actuator Type: Handwheel
• End Style: Thread
• Softgoods Material: PTFE Gasket, Packing
• Series: 267
