Rectorseal Ducktstripunv250 Duckt-Strip Universal 5/4 Mini Split Cable 250 Pull Box

Product Description

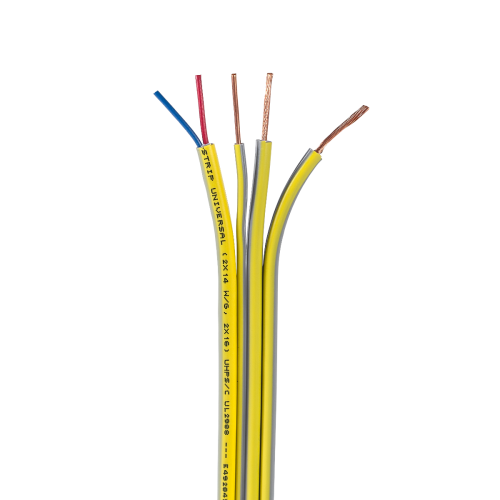

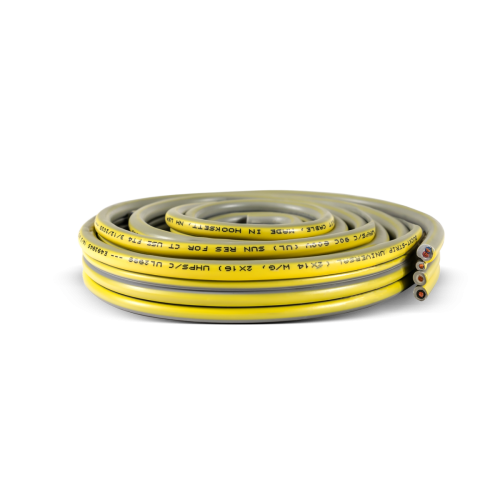

The RECTORSEAL DUCKTSTRIPUNV250 Duckt-Strip Universal 5/4 Mini Split Cable is designed for connecting mini-split outdoor condensing units to indoor units, providing both power and control in a single cable. It features 16g stranded blue and red signal/control conductors, a 14g solid grounding conductor, and 14g stranded black and white power conductors.

• Innovative Rip-N-Strip technology
• No blade required
• One wire covers interior/exterior compliance

Product Highlights

This universal wire works with both 4 and 5 conductor installations. Its Rip-N-Strip technology allows for conductor separation without cutting tools and is interior/exterior compliant.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: DUCKTSTRIPUNV250
• Country of Origin: UNITED STATES

Technical Specifications

• SKU: DUCKTSTRIPUNV250
• UM: Case(s)
• Case Quantity: 1
• Application: From the Mini-Split outdoor condensing unit to the indoor unit. Power and Control in 1 cable.
• Conductors: 5
• Gauge: 14
• Length: 250'
• Harmonize Code: 8544.11.0050
