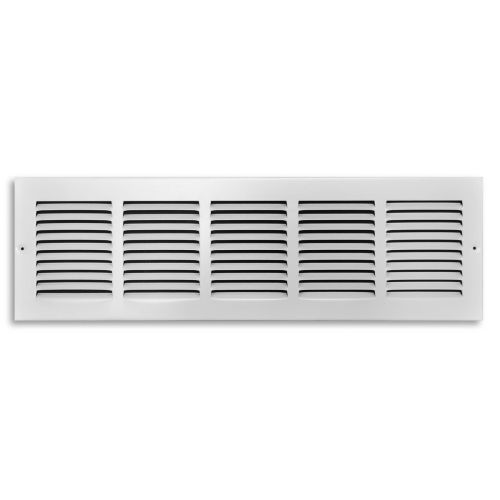

RECTORSEAL 17024X06 Return Air Grille

Product Description

The RECTORSEAL 17024X06 is a return air grille designed for effective one-way airflow. This model measures twenty-four inches in width and six inches in height with a depth of one-quarter inch. Built from durable steel with a powder-coated finish, it features a blade spacing of one-half inch and provides an airflow capacity ranging from one hundred thirty-four to three hundred thirteen cubic feet per minute (cfm) with a deflection angle of fifty-five degrees.

• Steel construction with powder-coated finish
• Airflow capacity: 134 to 313 cfm
• Blade spacing: 1/2 inch

Product Highlights

This return air grille functions well in HVAC systems, providing reliable airflow control.

Product Information

Standard Information

• Series: 170
• Material: Steel

Technical Specifications

• Width: 24 inches
• Height: 6 inches
• Thickness: 1/4 inch
• Overall Depth: 1/4 inch
• Air Flow: 134 to 313 cfm
• Area: 61 square inches
• Deflection: 55 degrees
• Blade Spacing: 1/2 inch
