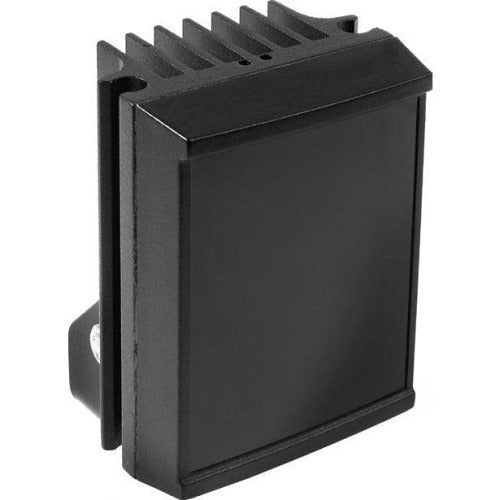

Raytec Systems Inc RM25-120-C Raymax 25 Ir Illuminator

Product Description

The RAYTEC SYSTEMS INC RM25-120-C is an infrared illuminator designed for CCTV and surveillance lighting applications. Operating at a 940nm wavelength, it falls within the near-infrared spectrum, making it effectively invisible to the human eye while still providing usable illumination for compatible IR-sensitive cameras. The 120-degree beam angle delivers wide-area coverage, suited for open spaces where broad illumination is needed rather than a focused throw. This unit is sold individually and is typically installed by security system technicians or low-voltage integrators.

The RM25-120-C is used in CCTV surveillance installations where covert or low-visibility infrared lighting is required. The 940nm wavelength is preferred over 850nm in applications where minimal visible red glow from the illuminator is a priority. The wide 120-degree angle makes it appropriate for indoor or outdoor perimeter coverage, parking areas, lobbies, and similar wide-field monitoring scenarios where camera sensitivity in the near-infrared range is confirmed.

Key Features

• 940nm infrared wavelength for near-invisible illumination
• 120-degree wide-angle beam for broad area coverage
• Part of the Raymax 25 illuminator series
• Sold as a single unit (each)
• Designed for CCTV illumination applications

Compatibility

Designed for use with IR-sensitive CCTV cameras capable of operating in the 940nm near-infrared spectrum. Verify camera IR sensitivity range before installation.

Installation Notes

Installation is typically performed by a licensed low-voltage technician or security system integrator. Ensure all power to the associated camera circuit is de-energized before wiring the illuminator. Follow local low-voltage and electrical codes, including applicable NEC guidelines for the installation environment. Aim and secure the unit according to the coverage zone requirements before final power-up.
