Raypak 006805F Sensor Well Kit

Product Description

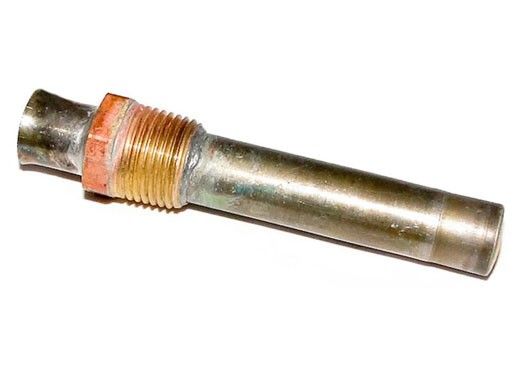

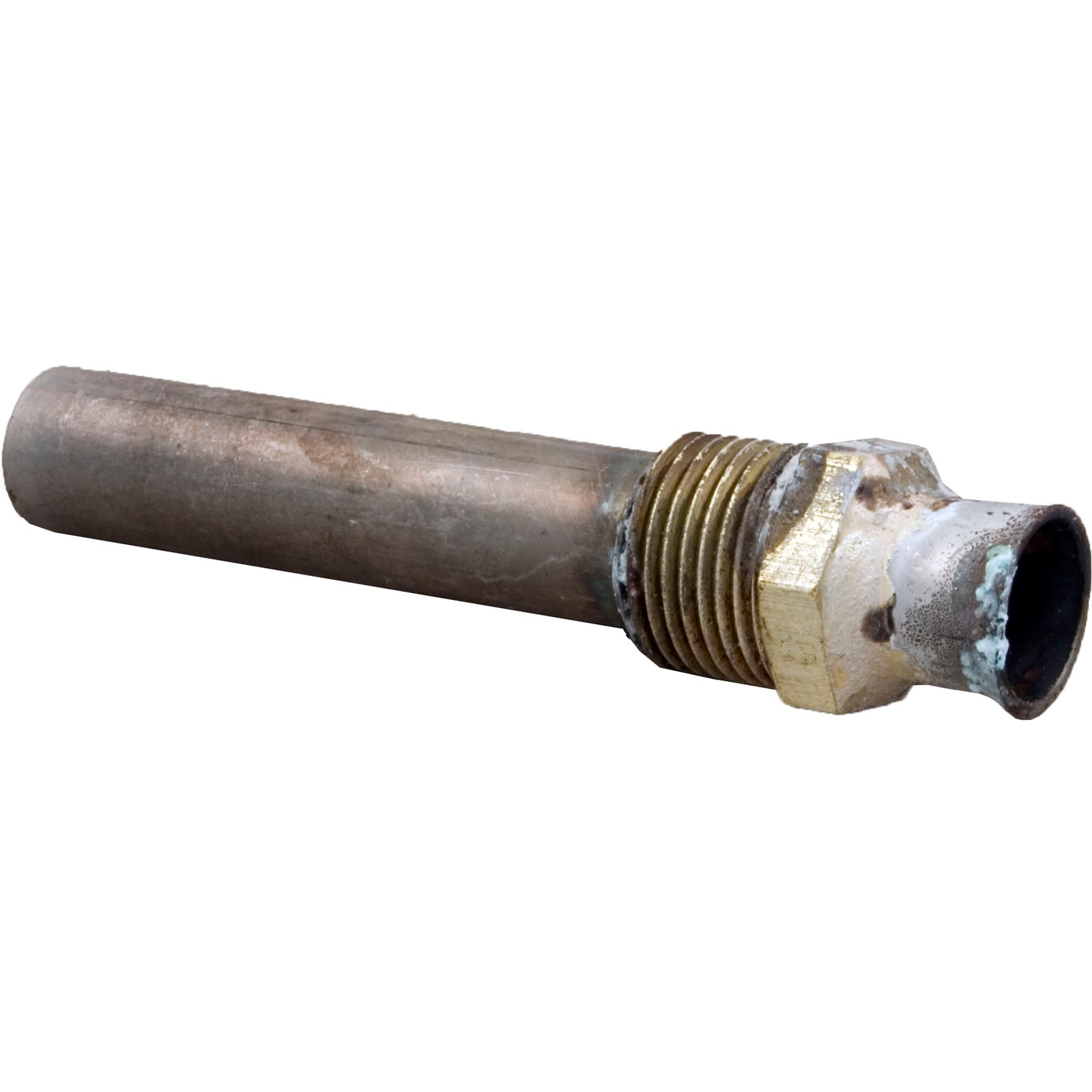

The Raypak 006805F Sensor Well Kit is essential for Raypak millivolt heaters with capron headers. This stainless steel thermowell houses the capillary tube from the temperature sensor (003346F) and includes a stainless tube with a brass threaded end that threads into the capron header.

• Compatible with Raypak millivolt heaters
• Houses capillary tube from temperature sensor
• Stainless steel construction for durability

Product Highlights

The Raypak 006805F Sensor Well Kit is designed to fit Raypak heaters, ensuring accurate temperature readings and reliable control. Its stainless steel build guarantees resistance to demanding conditions and longevity.

Product Information

Standard Information

• Brand: Raypak
• Item Number: 006805F

Technical Specifications

• Material: Stainless Steel
• Inside Diameter: 15/32 inches
• Outside Diameter: 9/16 inches
• Length: 3-3/8 inches
• Weight: 0.1 lbs
• Shipping Depth: 5 inches
• Shipping Width: 5 inches
• Shipping Height: 2 inches
