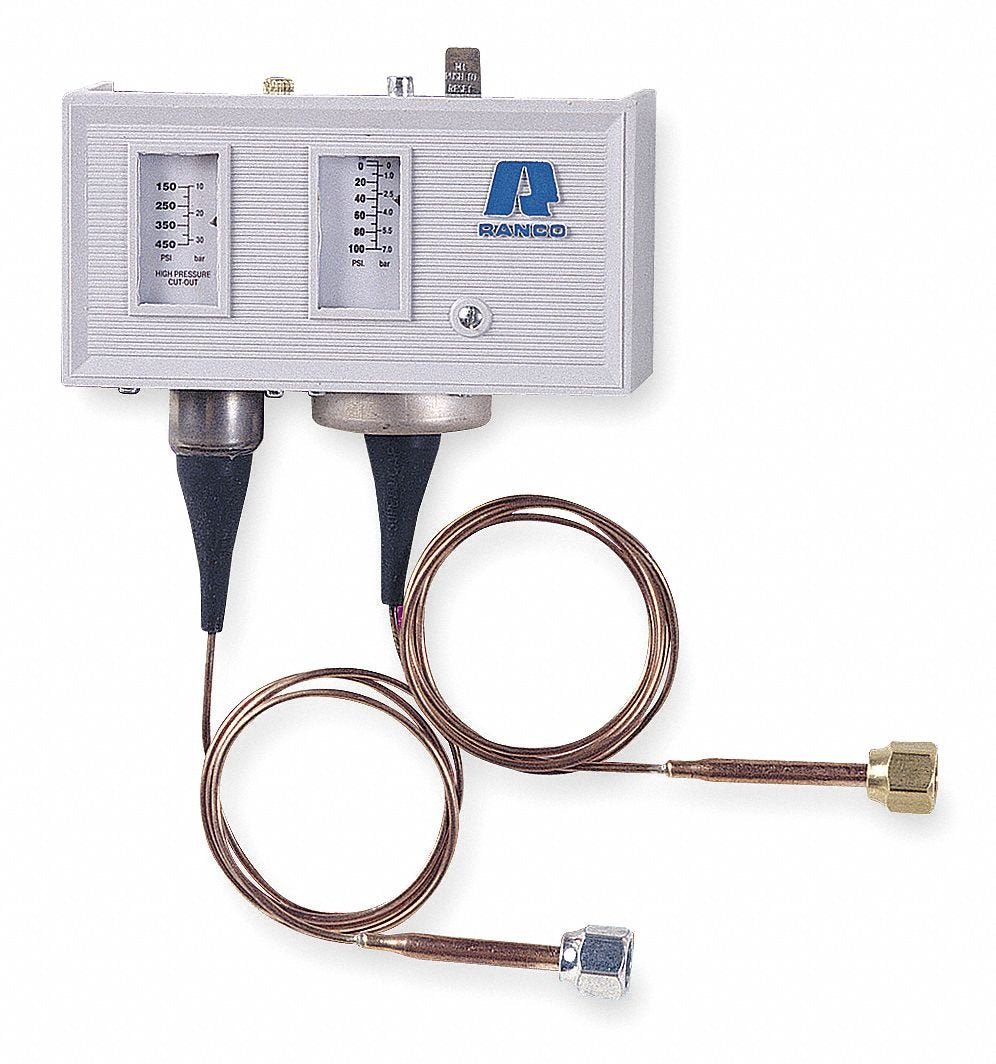

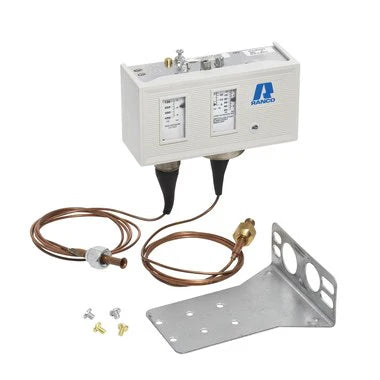

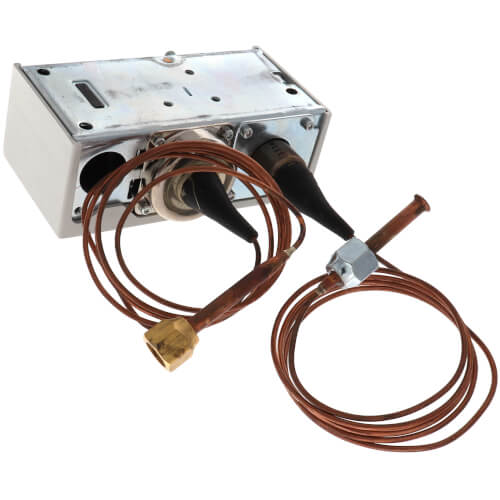

Ranco O12-4833 Dual Function Pressure Control 12 Inch Hg 50 psi Low 100 450 psi High SPST 24/240 V

Product Description

The Ranco O12-4833 Dual Function Pressure Control is essential for managing system pressures in HVAC and refrigeration applications. This device operates with 24/240 voltage and features a SPST switch configuration. It is designed to handle low-pressure controls from twelve inches of mercury to fifty psi and high-pressure controls from one hundred to four hundred and fifty psi.

• Dual function capability for versatile pressure management in different systems.
• Includes a forty-eight inch capillary for accurate temperature and pressure responses.
• Designed with robust materials suitable for harsh industrial environments.

Product Highlights

This pressure control unit is equipped with features like manual or automatic reset options and a nonconductive cover that ensures safety and durability. It is also housed within a NEMA 1 enclosure to protect against external elements.

Product Information

Standard Information

• Brand: Ranco
• MPN: O12-4833

Technical Specifications

• Pressure Range: 12 Inch Hg - 50 psi Low, 100 - 450 psi High
• Connection Type: 1/4 Inch SAE Flare Nut
• Enclosure Type: NEMA 1, Non-Conductive
• Electrical Connection: Screw Terminal
• Capillary Length: 48 Inches
• Switching Control: SPST
