Robertshaw O12-1502 Dual Pressure Control 12 Hg-50 psi In/150-450 psi Out SPST

Product Description

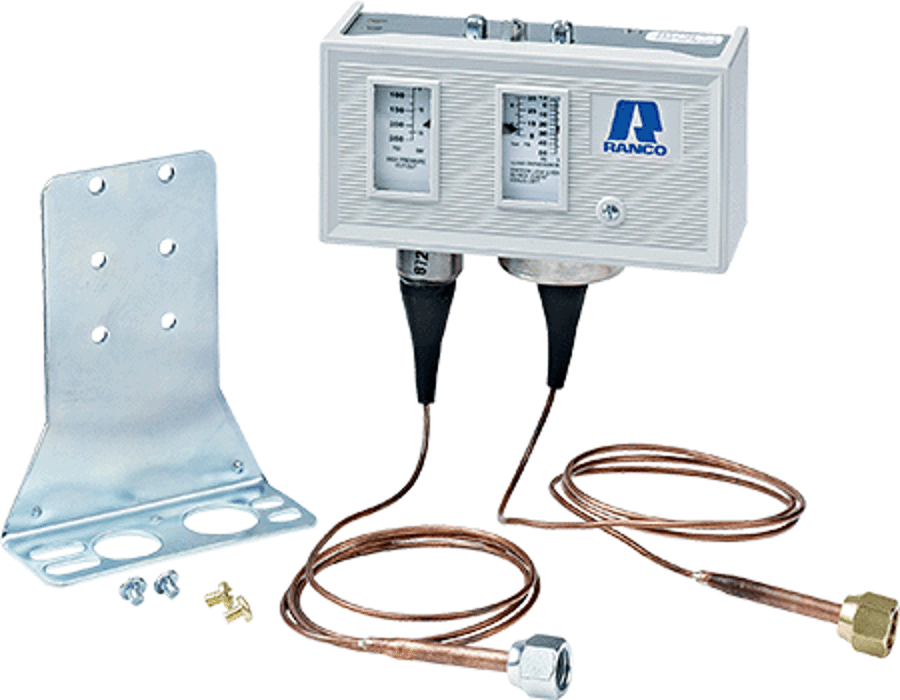

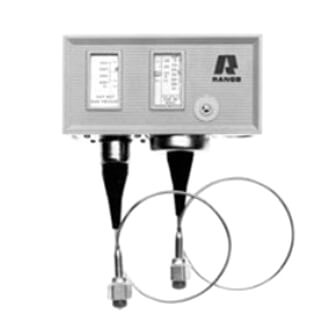

The Robertshaw O12-1502 is a dual pressure control that functions effectively in industrial applications. It operates within a pressure range of twelve inches of mercury to fifty psi for low pressure and one hundred fifty psi to four hundred fifty psi for high pressure. This model features an automatic reset, ensuring reliable performance under demanding conditions.

• Pressure Range: 12 Hg - 50 psi In Low; 150 - 450 psi Out High
• Capillary Tube Length: 36 inches
• Connection Type: 1/4 inch SAE flare nut

Product Highlights

This pressure control is engineered for various refrigeration applications. Its rugged design is intended for operational suitability in tough industrial settings. The O12-1502 is versatile and supports pressure regulation and control for pumps and other pressure-sensitive duties.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: O12-1502

Technical Specifications

• Pressure Range: 12 Hg - 50 psi In, 150 - 450 psi Out
• Capillary Length: 36 inches
• Connection Type: 1/4 inch SAE Flare Nut
• Switching Type: SPST
• Auto Reset: Yes
• Mounting Type: Universal
• Enclosure Type: NEMA 1, Non-Conductive
• Electrical Connection: Screw Terminal
