Robertshaw O10-1418 SPST Commercial Refrigeration Temperature Control 0-55F, 3-20F Differential

Product Description

The Robertshaw O10-1418 SPST Commercial Refrigeration Temperature Control is designed for medium temperature applications. It features a switch that closes on rise with an automatic reset function. The control range is from 25 to 75 degrees Fahrenheit. This temperature control is suitable for line or pilot duty cycling of motors, compressors, or solenoid valves.

• Control range: 25 to 75 degrees Fahrenheit
• SPST switch action
• Automatic reset

Product Highlights

This refrigeration temperature control is ideal for medium temperature control applications such as self-contained refrigerators, freezers, coolers, walk-in units, and refrigeration display cases. It features maximum adjustment accuracy with a 7-revolution range adjustment screw, a NEMA 1 enclosure with a non-conductive cover, universal mounting, and a compact design.

Product Information

Standard Information

• Brand: Robertshaw
• Manufacturer: Robertshaw Controls Co.
• MPN: O10-1418
• Part ID: 80624

Technical Specifications

• Control Range: 25 to 75 degrees Fahrenheit
• Temp Differential High: 3 to 20 degrees Fahrenheit
• Temp Differential Low: 6 to 25 degrees Fahrenheit
• Height: 2.75 inches
• Width: 3.5 inches
• Depth: 2 inches
• Voltage: 120V
• Locked Rotor Amps: 144
• Full Load Amps: 24
• Pilot Duty Contacts (VA): 720
• Construction: Laser-welded bellows, zinc-plated steel case

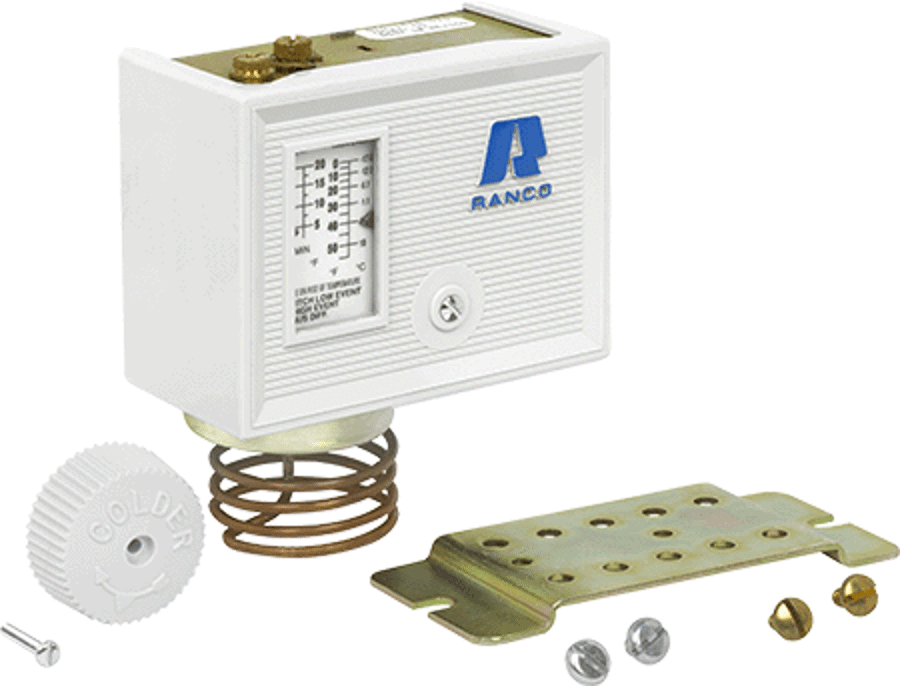

• Includes: Dual temperature scale, mounting bracket, screws, adjustment knob
