Robertshaw A30-182 Temperature Control SPST Constant Differential 42Cap

Product Description

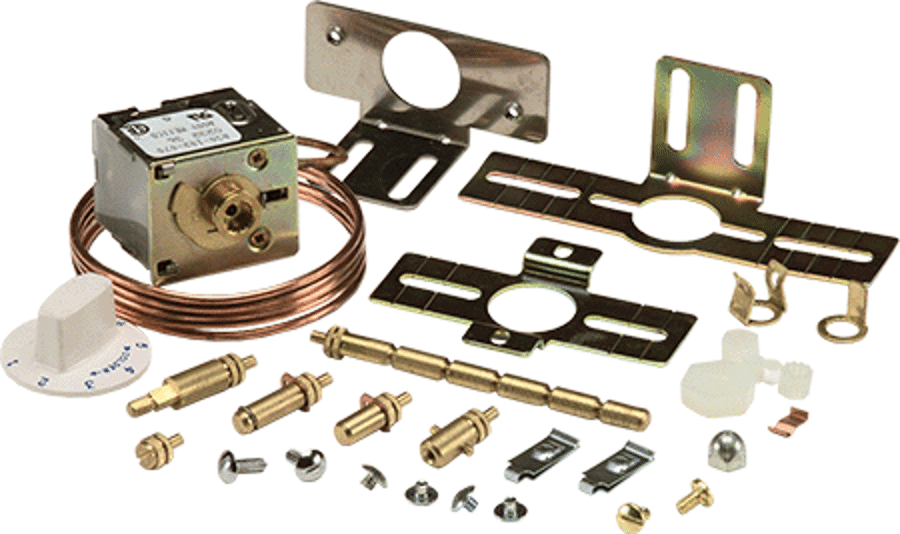

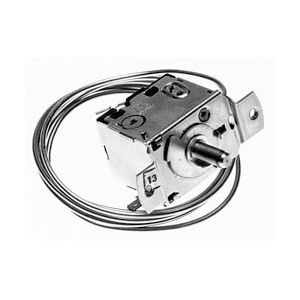

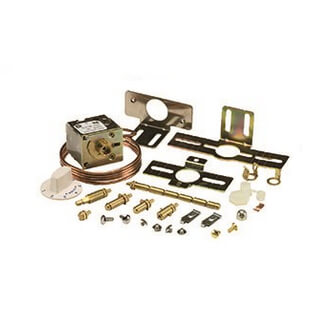

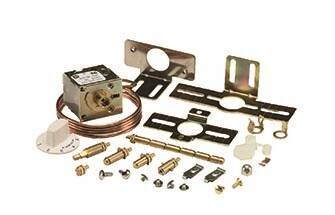

The Robertshaw A30-182 is a temperature control designed for refrigeration applications. It features a switching mechanism that operates on a single pole, single throw (SPST) principle with a constant differential. This control is effective for systems requiring temperature regulation between negative six degrees Fahrenheit and forty-four degrees Fahrenheit.

• SPST switch design for reliable operation
• Capillary length of forty-two inches for flexible installation
• Suitable for use in commercial refrigeration systems

Product Highlights

This product is engineered for efficient temperature control in refrigeration systems. It adjusts based on sensed temperatures to switch electrical components accordingly.

Product Information

Standard Information

• Brand: Robertshaw
• Manufacturer Part Number: A30-182

Technical Specifications

• Switch Type: SPST
• Temperature Range: -6 to 44 degrees Fahrenheit
• Differential: 17 degrees Fahrenheit
• Capillary Length: 42 inches
• Voltage Rating: 24/120/240/277 V
• Full Load Current: 20/16 A
• Pilot Duty Rating: 240 VA
• Electrical Connection: 1/4 Inch Quick Connect
