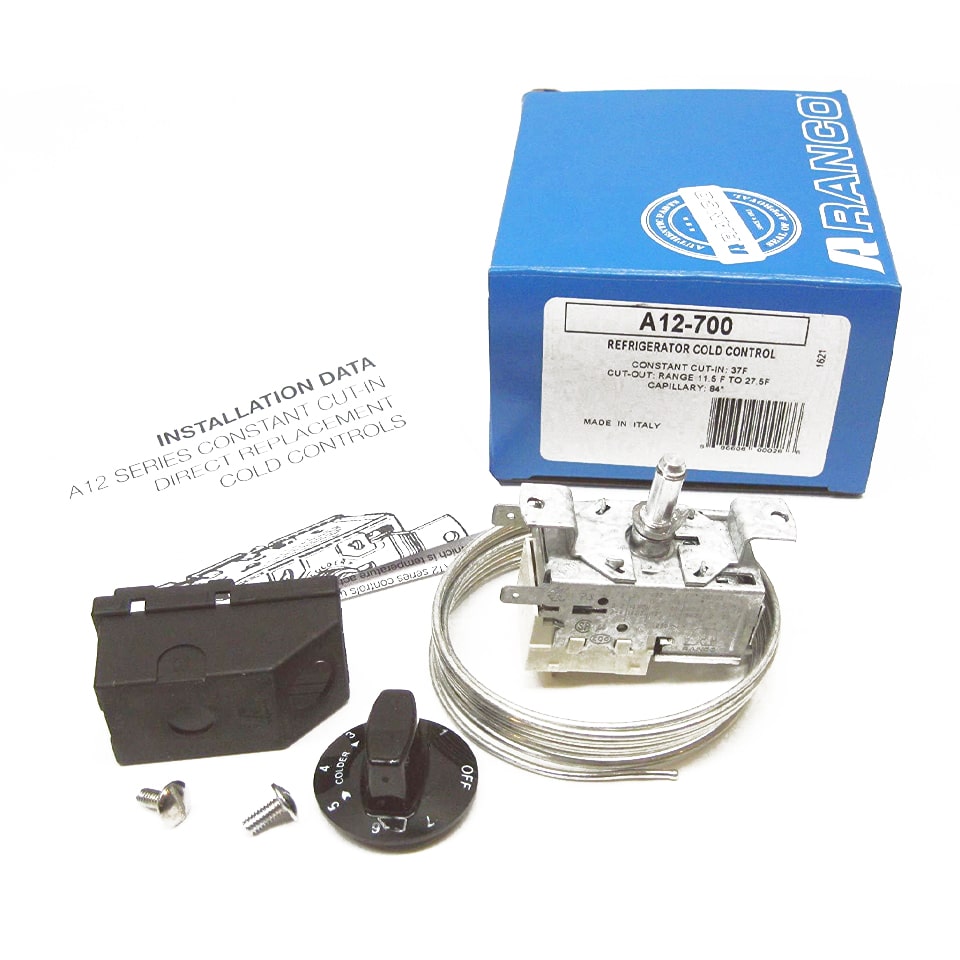

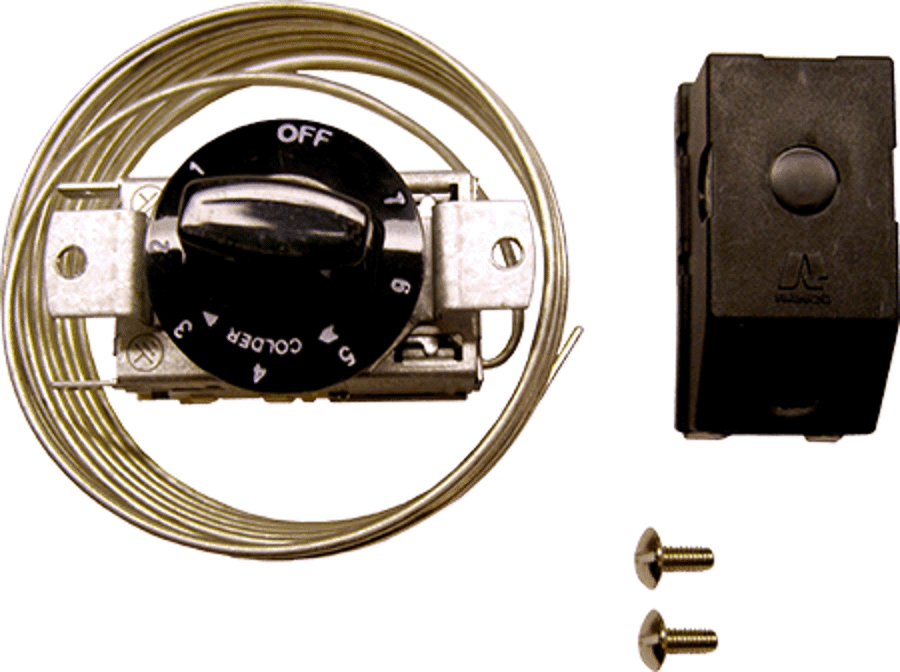

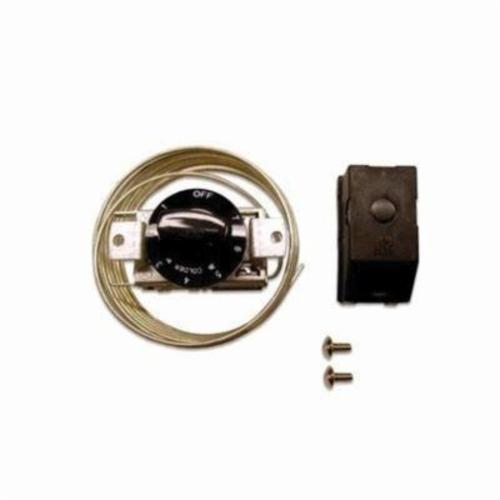

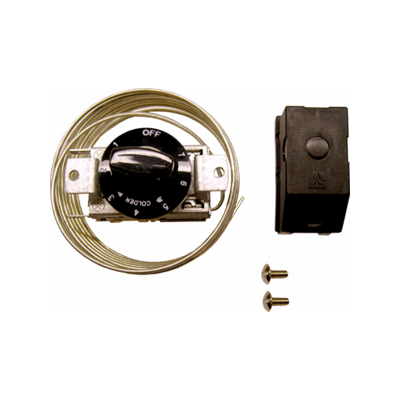

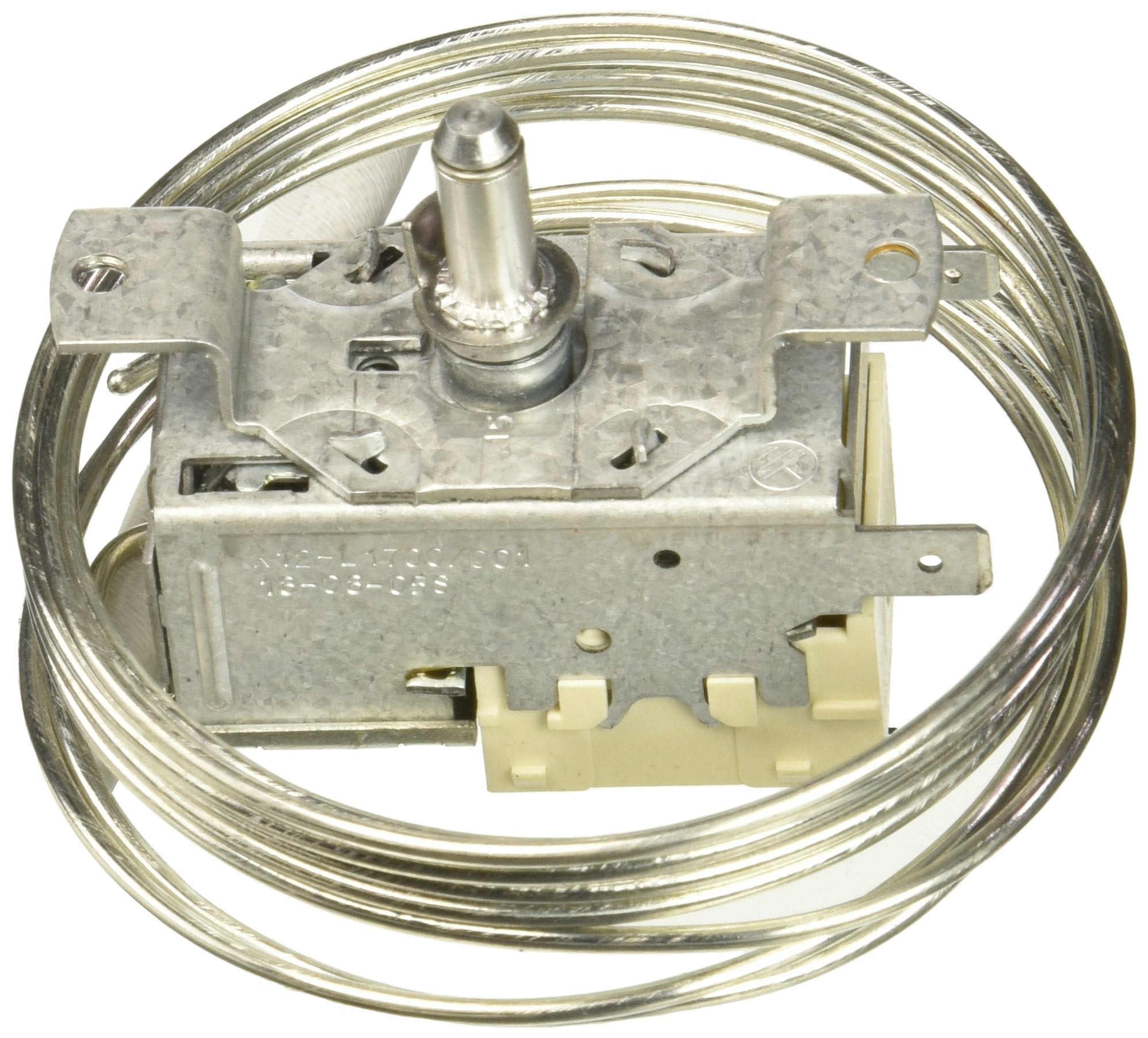

Robertshaw A12-700 Refrigeration Control Constant Cut In Control

Product Description

The Robertshaw A12-700 Refrigeration Control is a constant cut-in control designed to switch electrical components of refrigeration systems in response to sensed temperatures. It features a vapor-filled capillary and is designed for vending machines, automatic beverage dispensers, and reach-in coolers. The unit has a SPST switch with off position.

• Laser-welded stainless steel bellows
• Fixed or adjustable temperature settings
• High-amperage contacts
• Pneumatic action provided by vapor filled capillary or capillary with bulb sensing elements

Product Highlights

This Robertshaw refrigeration control ensures precise temperature management for commercial refrigeration equipment with a constant cut-in design.

Product Information

Standard Information

• Brand: ROBERTSHAW
• Manufacturer Part Number: A12-700
• Country of Origin: United States

Technical Specifications

• Item Model Number: A12-700
• Part Number: A12-700
• Item Package Quantity: 1.0
• Type: Constant Cut-In
• Series: A12
• Switch Type: Close on Rise
• Control Range: 18 to 27 deg F
• Switch Action: SPST
• Capillary Type: Vapor Filled
• Voltage Rating: 120/208/240 VAC
• Amperage Rating: 16 FLA
• Capillary Length: 84 in
• Manufacturer Name: Robertshaw
• Cold Off Temperature: 11.5 deg F
• Normally Off Temperature: 18 deg F
• Contact Rating: 16 Amp at 120/208/240 Volt AC (Full Load), 80 Amp at 120/208/240 Volt AC (Locked Rotor), Pilot Duty 240 Volt Amp at 120/208/240 Volt
• Connection Type: 1/4 Inch Quick-Connect
• Application: Refrigeration
• Approval: UL (Canada and US)
• Full Load Current: 16 A
• Pilot Duty Rating: 240 VA
• Locked Rotor Amperage: 80 A
• Temperature Range: 11-++37 Degrees
