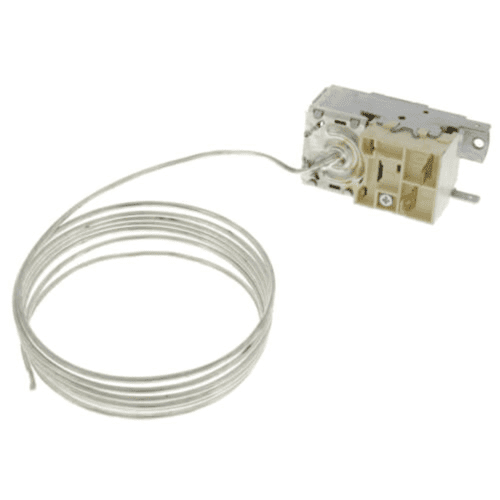

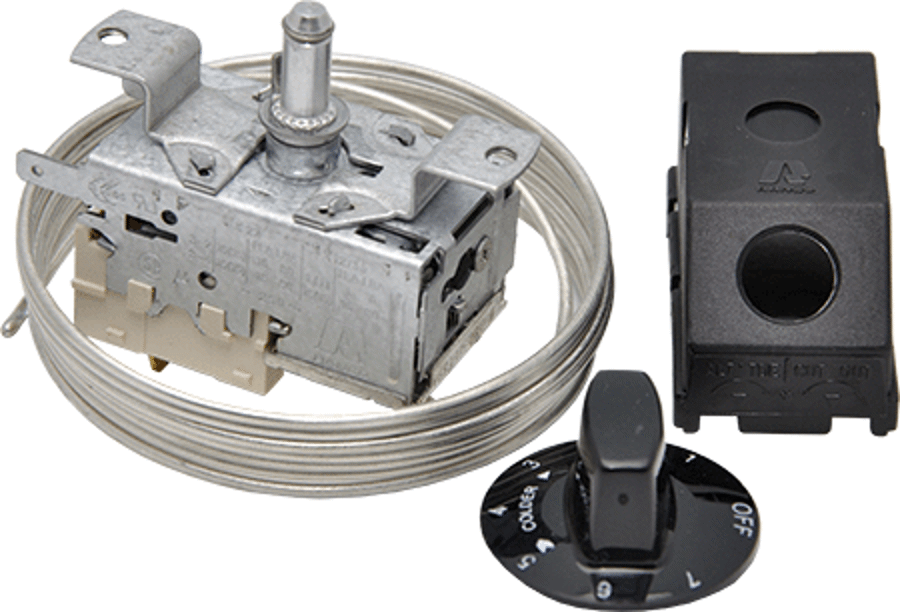

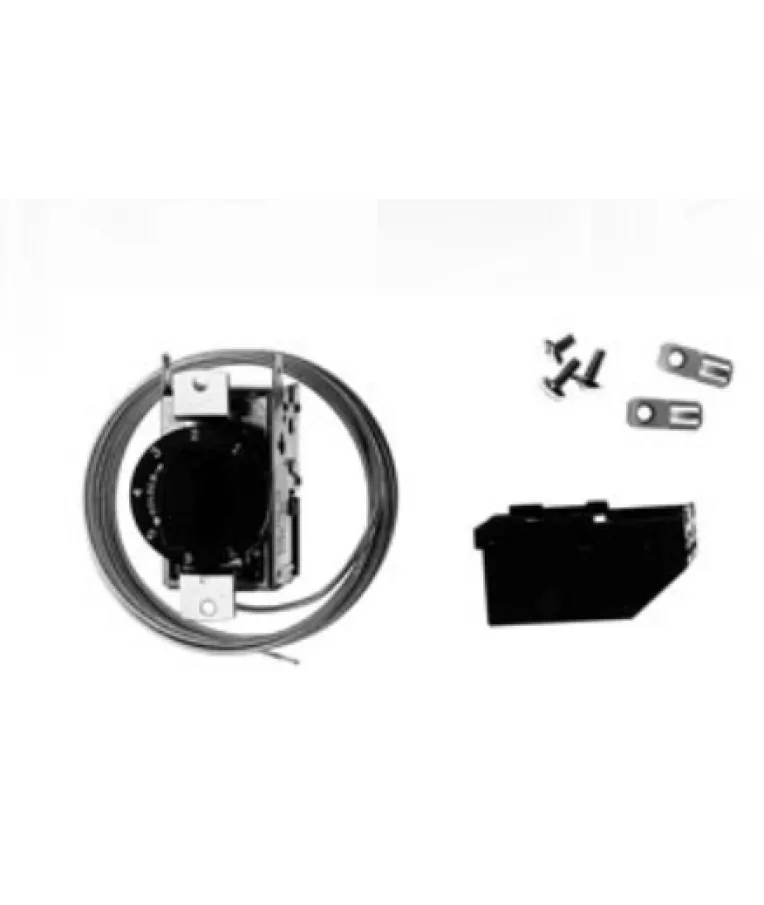

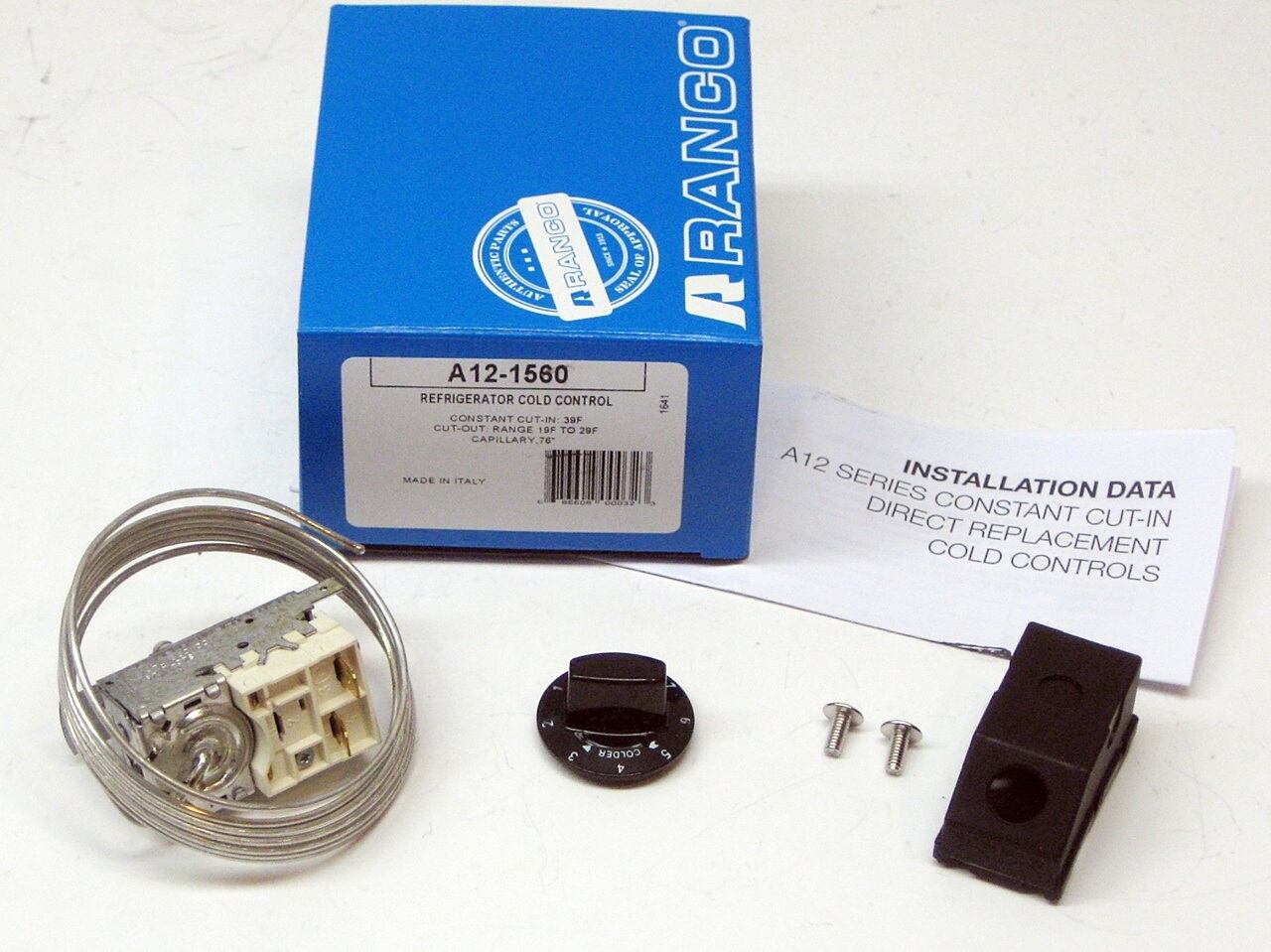

Robertshaw A12-1560 Temperature Control 38F Constant Cut-In Direct 72 inchesCap

Product Description

The ROBERTSHAW A12-1560 temperature control features a 38F constant cut-in and 72" capillary. Designed for precise temperature sensing and control in industrial and commercial applications. It is crafted with high-quality materials, ensuring durability and reliable off cycle defrost. Suitable for HVAC systems, refrigeration units, and industrial processes.

• Constant cut-in temperature control
• 72" capillary tube for precise temperature sensing and control
• Designed for industrial and commercial applications

Product Highlights

Maximize energy efficiency and control temperatures accurately with the A12-1560 control by ROBERTSHAW.

Product Information

Standard Information

• Brand: ROBERTSHAW
• Manufacturer Part Number: A12-1560
• Country of Origin: United States

Technical Specifications

• Type: Temperature Control
• Application: Constant Cut-In Control
• Series-Brand: A Series
• Capillary Length: 72"
• Item Number: A12-1560
• Brand: ROBERTSHAW
• Series: A12
• Element: 72 Inch Capillary
• Switch Type: SPST
• Differential: 24 deg F
• Manufacturer: Robertshaw
• Control Range: 19 - 38 deg F
• Switch Action: Close On Rise
• Voltage Rating: 120/208/240 V
• Full Load Current: 16 A
• Pilot Duty Rating: 240 VA
• Locked Rotor Amperage: 80 A
• Part Type: Constant Cut-In Temperature Control
• MPN: A12-1560
• Approval: UL (Canada and US)
• Cold Off: 19 °F
• Cut-In: 38 °F
• Normal Off: 24 °F
• Warm Off: 29 °F
• Refrigeration control: Refrigeration control
• Switch type: close on rise
• Switch action: spst
• Capillary type: capillary w/bulb sensor
• Cold Off Temperatures: 19°F (-7°C)
• Cut-Off Temperature: 38°F
