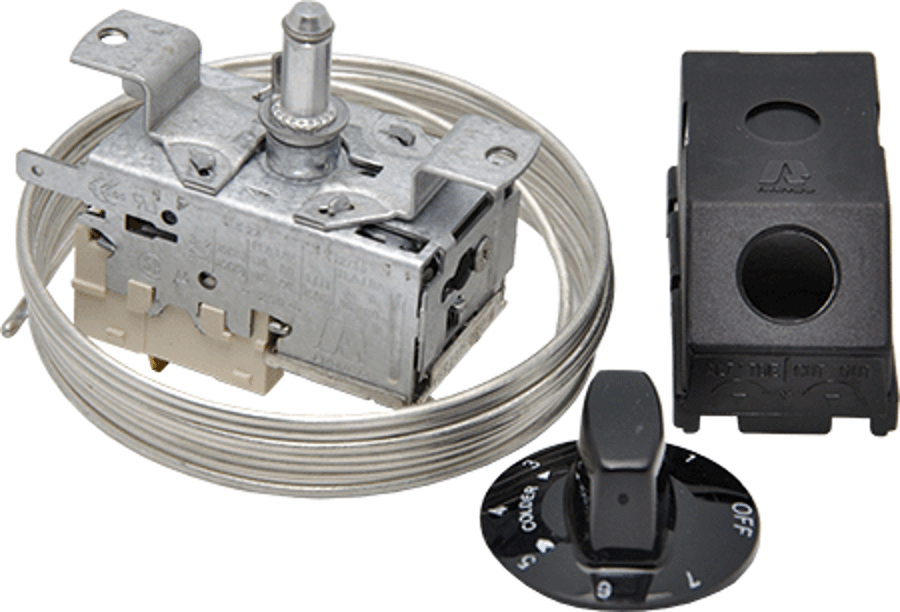

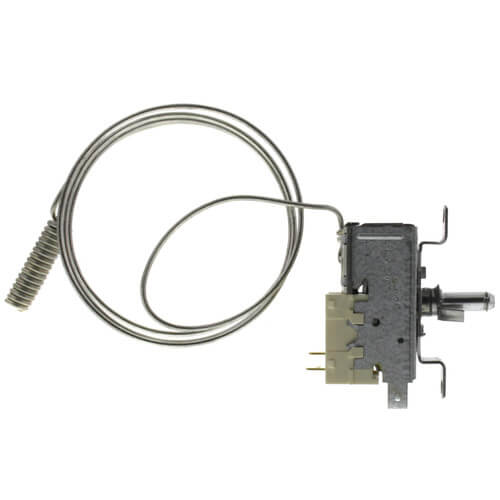

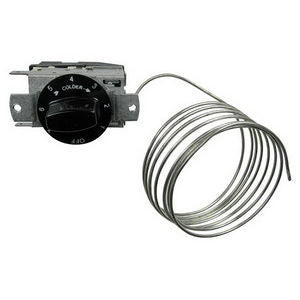

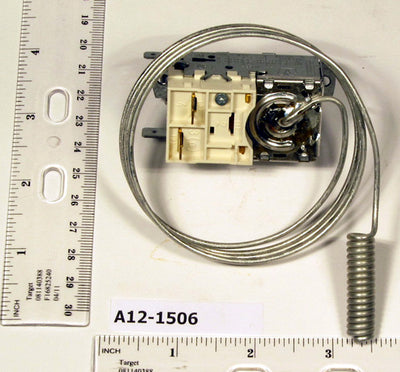

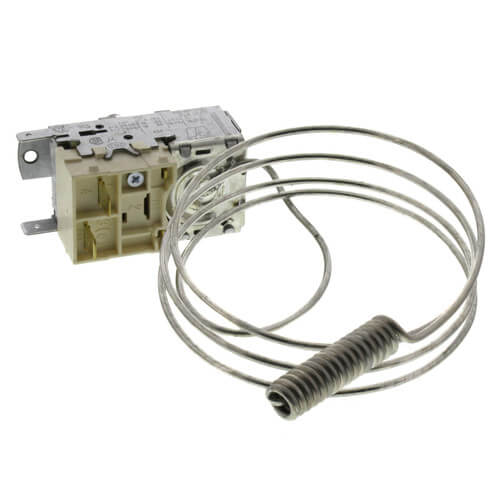

Robertshaw A12-1506 Temperature Control 120-240 VAC

Product Description

The Robertshaw A12-1506 Temperature Control is designed for precision temperature management in refrigeration systems, including vending machines and reach-in coolers. This model features a robust design with a vapor-filled capillary sensor to ensure reliable and accurate temperature control.

• SPST switch for reliable operation
• 39-inch capillary length for flexible installation
• Temperature control range 9 to 38 degrees Fahrenheit with a 15-degree differential

Product Highlights

This temperature control unit is equipped with a SPST switch that closes on temperature rise, ensuring efficient operation. It is crafted with high-durability components like a laser-welded stainless steel bellows and high-amperage contacts for extended use.

Product Information

Standard Information

• Brand: Robertshaw
• Model: A12-1506

Technical Specifications

• Voltage Rating: 120/208/240 V
• Current Load: 16 A full load, 80 A locked rotor
• Pilot Duty: 240 VA
• Switch Type: SPST, closes on rise
• Temperature Range: 9°F to 38°F
• Capillary Length: 39 inches
