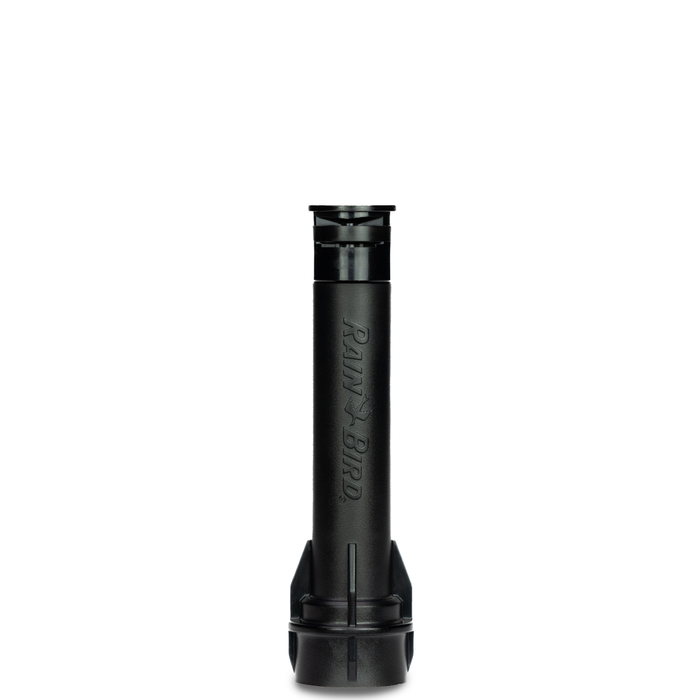

Rain Bird A46500 pa8sprs riser regulator 30 psi

Product Description

The RAIN BIRD A46500 PA8SPRS is a pressure regulating shrub adapter designed to attach spray nozzles to risers in shrub and ground cover areas. Features include a stainless steel retraction spring and co-molded wiper seal. The built-in 30 PSI PRS regulator ensures consistent nozzle performance and saves water. Ideal for vandal-prone zones.

• Maintains constant outlet pressure at 30 psi.
• Ensures maximum spray nozzle performance.
• Rugged thermoplastic construction resists UV rays.

Product Highlights

This riser regulator adapts nozzles for use with 1/2" MPT threaded risers and fits all Rain Bird nozzles.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: A46500

Technical Specifications

• Flow: 0.2 to 4.0 GPM
• Inlet Threads: 1/2" (15/21) female inlet threads
• Nozzle Compatibility: Fine top threads accept all Rain Bird nozzles
• Outlet Pressure: 30 psi
• Inlet Pressure: 15 to 70 psi
• Model: PA8SPRS
• Features: PRS Pressure Regulating
• Brand: RAINBIRD
• MPN: A46500
