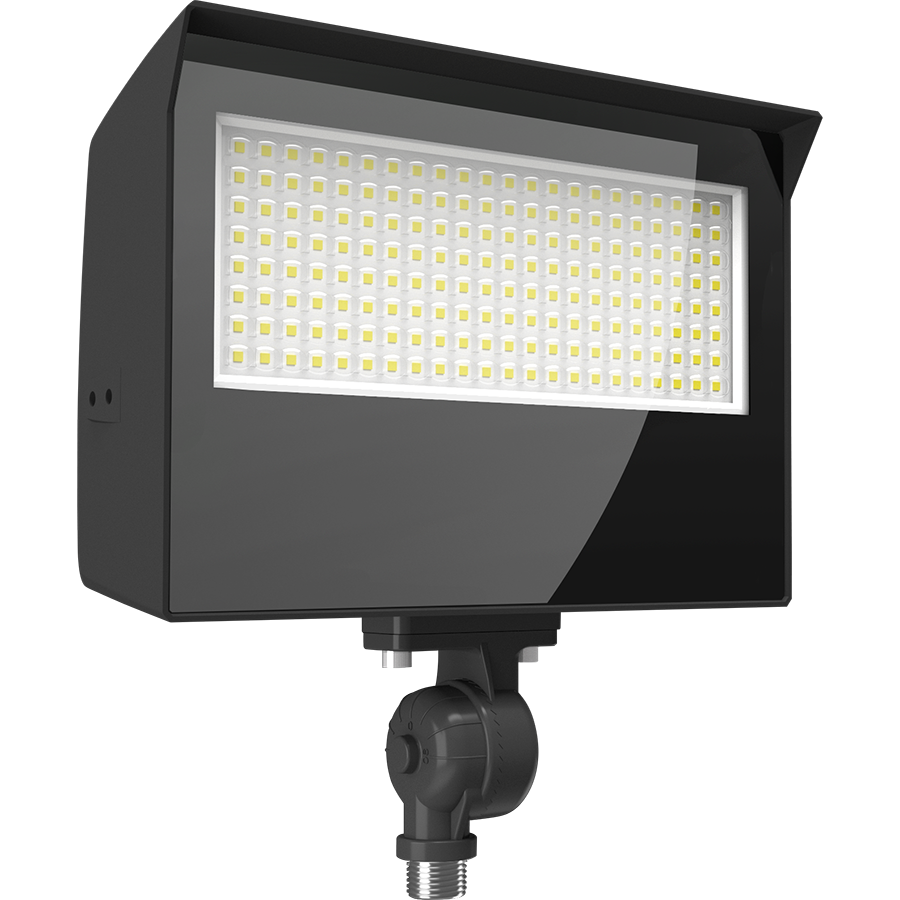

Rab X2280 3CCT Adjustable Flood 50-80W (55-100°)

Product Description

The Rab X2280 is an LED floodlight offering five-way selectable wattage and selectable CCT with a 120-277V driver. It delivers up to 12,700 lumens, field-adjustable beam distribution, and an integrated selectable photocell. The fixture features a tempered glass lens, precision die-cast aluminum housing rated for wet locations, and a knuckle mount installed with a trunnion kit for flexible aiming and mounting.

• Selectable wattage (50, 60, 70, 80 W) and selectable CCT (3000K, 4000K, 5000K); up to 12,700 lumens
• Selectable beam angle 55-100°, tempered glass lens, precision die-cast aluminum housing, wet rated
• 120-277V class 1 constant current driver, 0-10V dimming capable, integrated selectable photocell, 100,000-hour LED life

Product Highlights

Five-way selectable wattage and 3CCT, adjustable beam and integrated photocell, wet-rated die-cast housing, up to 12,700 lumens

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: X2280

Technical Specifications

• Brand: RAB
• Manufacturer Part Number: X2280
• Model: X22-80
• Series: X22
• Type: LED Floodlight
• Fixture Wattage: Selectable 50, 60, 70, 80 W
• Input Voltage: 120-277V
• Driver: Class 1, constant current, 120-277V, 50/60 Hz
• Lumens: Up to 12,700 lm
• Color Temperature: Selectable 3000K, 4000K, 5000K
• Beam Angle: Selectable 55-100°
• Photocell: Selectable photocell (On/Off)
• Dimming: 0-10V dimming capable, dims to 10%
• Lens Type: Tempered glass
• Housing Material: Precision die-cast aluminum
• Enclosure Rating: Wet rated (suitable for wet locations), IP65
• Color Rendering Index (CRI): 81+ CRI
• L70 Lifespan: 100,000 Hours
• Mounting: Knuckle mount installed; trunnion kit included; 180° adjustable swivel arm
• Surge Protection: 6 kV L/N-PE and 6 kV L-N
• Power Factor: 88.9% at 120V; 99.4% at 277V
• THD: 8.71% at 120V; 5.57% at 277V
• Cold Weather Starting: -22°F (-30°C) minimum starting temperature
• Maximum Ambient Temperature: Up to 122°F (50°C)
• Listings/Certifications: UL Listed; IESNA LM-79 & LM-80 tested; DLC (family may include DLC Premium SKUs)
