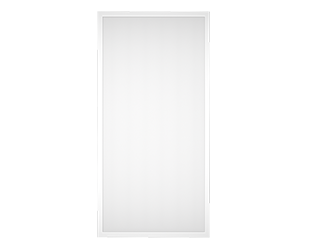

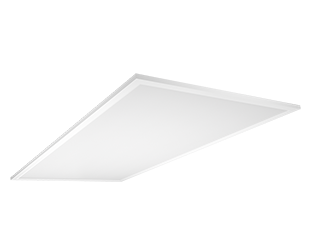

RAB Lighting T34-2X4-30/D10 LED Flat Panel

Product Description

The RAB Lighting T34-2X4-30/D10 is an LED flat panel designed for recessed installation in T-grid ceilings. It features integrated 0-10V dimming and offers a rated lifespan of up to fifty thousand hours. This flat panel is IC rated, allowing for direct contact with insulation, and is suitable for use in damp locations.

• Recessed mounting into T-grid ceiling
• Integrated 0-10V dimming for easy adjustment
• Suitable for damp locations

Product Highlights

This LED flat panel combines efficiency with practicality, offering high lumen output and compliance with various standards.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: T34-2X4-30/D10

Technical Specifications

• Input Voltage: 120-277V
• Power Consumption: 30W
• Lumens: 3,730 lm
• Color Temperature: 4000K
• Color Accuracy: 80 CRI
• Lifespan: 50,000 hours
• Dimming: 0-10V, standard down to 10%
• Operating Temperature: -20°C (-4°F) to 40°C (104°F)
• Mounting Type: Recessed into T-grid ceiling
• Housing: Plastic frame & galvanized steel back
• Lens: Frosted polystyrene
• Finish: White
• THD: 10.1% at 120V, 8.05% at 277V
• Power Factor: 99% at 120V, 94.8% at 277V
• Efficacy: 118
• Driver: Constant Current, Class 2, 120-277V
• Listings: UL Listed for damp locations
