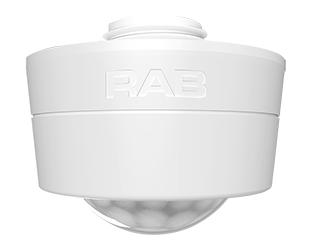

RAB DESIGN LIGHTING PIR40 Low Voltage Occupancy Sensor

Product Description

The RAB DESIGN LIGHTING PIR40 is a low voltage occupancy sensor ideal for indoor and outdoor environments. This sensor functions in dry, damp, or wet locations, operating at twelve volts with a frequency of fifty to sixty hertz. It features dual-technology motion and daylight sensing. The PIR40 is compatible with 0-10V dimming fixtures and is powered by an auxiliary supply.

• Detection range of forty feet in diameter when mounted at a height of up to forty feet.
• Adjustable settings using the MSR1 remote (sold separately).
• Meets IP66 rating for robust environmental resistance.

Product Highlights

This sensor is constructed from durable white plastic and complies with Part 15 of the FCC Rules, ensuring reliable operation in a variety of settings.

Product Information

Standard Information

• Product Type: Low Voltage Occupancy Sensor
• Description: Line voltage screw-in sensor, motion detection, and daylight sensing.

Technical Specifications

• L70 Lifespan: 50,000-Hour LED lifespan based on IES LM-70 results
• Input Voltage: 12V
• Operating Frequency: 50/60Hz
• Input Current @ 120V: 30mA
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• Sensor Connection Type: Pogo pin
• Max Mounting Height: 40 ft
• Detection Range: 40 ft diameter mounted at 40 ft
• Sensor Technology: Passive Infrared (PIR)
• Adjustable Sensor Settings: Yes, using the MSR1 Remote (sold separately)
• IP Rating: IP66
• Shape: Round
• Finish: White
• Enclosure Material: Plastic
• RoHS: Mercury and UV free. RoHS-compliant components.
• FCC Compliance: Complies with Part 15 of the FCC Rules
