Quietflex ss0780 Insulation Sleeve 7in X 5ft R8.0

Product Description

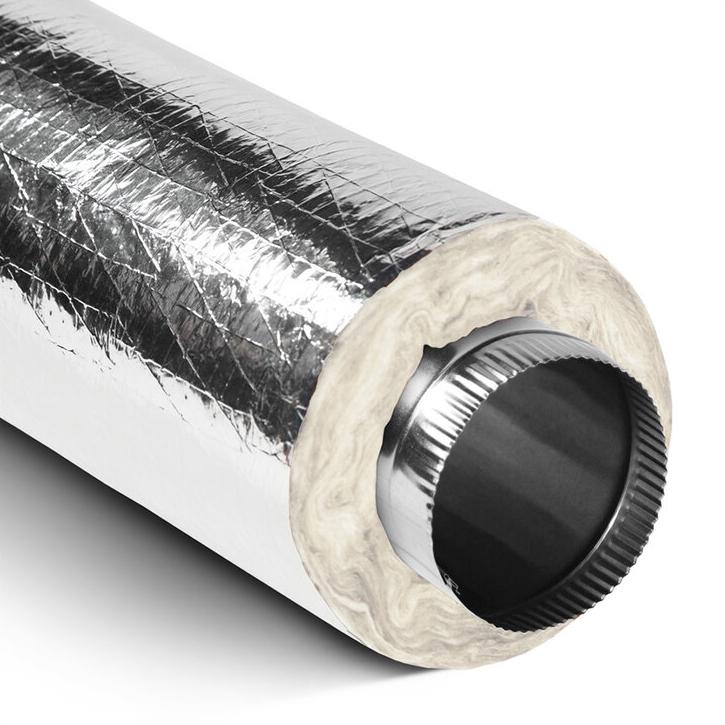

The QUIETFLEX ss0780 is a pre-formed insulation sleeve designed to wrap around existing or newly installed rigid ductwork. It limits heat gain and heat loss as conditioned air travels through the duct system, and it reduces condensation buildup on the outer surface of the pipe. The sleeve ships in a standard 5-foot length and carries an R8.0 thermal resistance rating. A reinforced metallic polyester vapor barrier on the outer layer provides a durable, reflective finish that also serves as a vapor retarder. HVAC technicians install this sleeve during new duct runs or when adding insulation to existing hard pipe in unconditioned spaces.

The ss0780 is sized for 7-inch diameter rigid duct pipe and is well suited for residential and light commercial HVAC applications. Typical installation locations include attics, crawlspaces, basements, and mechanical rooms where uninsulated hard pipe is exposed to unconditioned air. The 5-foot length is appropriate for short duct segments, offsets, and transitions. Each box includes one starter cap to cap the end of the sleeve at the termination point of the run.

Key Features

• R8.0 thermal resistance rating limits heat transfer through the duct wall
• Reinforced metallic polyester vapor barrier reduces condensation buildup
• Fits 7-inch diameter rigid duct pipe
• Standard 5-foot length; 10-foot custom length also available
• Also available in R4.2 and R6.0 insulation ratings for different application requirements
• One starter cap included per box for clean end termination
• Available in boxed packaging for jobsite handling and storage

Compatibility

Designed as an OEM-style insulation sleeve for 7-inch diameter rigid hard pipe duct in residential and light commercial forced-air HVAC systems.

Installation Notes

Installation is performed by a qualified HVAC technician. Power down the air handling system before working on or near the duct. Slide the sleeve over the rigid pipe and secure seams and ends with foil tape per local mechanical code requirements. Do not compress the insulation, as compression reduces the effective R-value.

Technical Specifications

• Insulation Rating: R8.0
• Pipe Diameter: 7 inches
• Length: 5 feet
• Vapor Barrier: Reinforced metallic polyester
• Included Accessories: One starter cap per box
• Available R-Values: R4.2, R6.0, R8.0
• Available Lengths: 5 ft standard, 10 ft custom

Standard Information

• Brand: QUIETFLEX
• Manufacturer Part Number: ss0780
